BF series Cabinet Fan
The BF series Cabinet Fan is a cabinet-style fan for organized ventilation and air-handling system installations. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.
Product Overview
Designed for Industrial Ventilation Projects

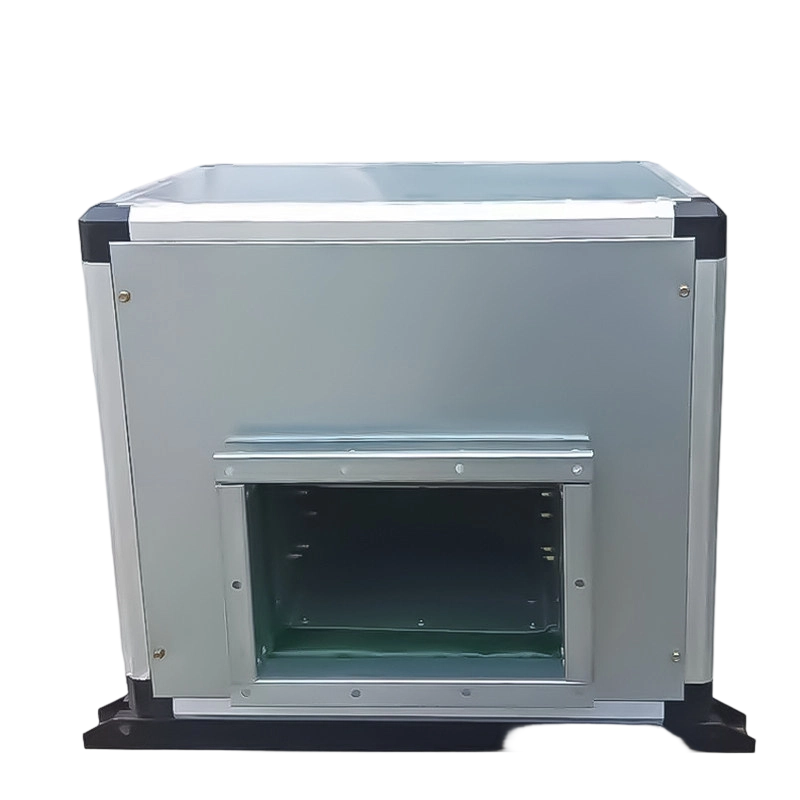

BF series Cabinet Fan
The BF series Cabinet Fan is a cabinet-style fan for organized ventilation and air-handling system installations. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.
Key Features
- Cabinet configuration for system integration
- Designed for ducted air supply or exhaust
- Suitable for commercial and industrial projects
Applications
- Building ventilation
- HVAC air supply and exhaust
- Industrial duct systems
Project Support
Product selection, configuration review, production coordination, and export delivery can be supported according to the application and installation requirements provided by the customer.
Performance Table
| Model(Nº) | Power(kW) | Voltage(V) | Speed | Volume(m³/h) | Pressure(Pa) | Staticpressure(Pa) |
|---|---|---|---|---|---|---|
| BF-2A (Single-phase) | 0.22 | 220 | High | 1044~2314 | 207~177 | 192~106 |
| BF-2A (Single-phase) | 0.22 | 220 | Medium | 919~2036 | 160~137 | 149~82 |
| BF-2A (Single-phase) | 0.22 | 220 | Low | 836~1851 | 133~113 | 123~68 |
| BF-2A (Single-phase) | 0.10 | 220 | High | 710~1573 | 96~98 | 89~49 |
| BF-2A (Single-phase) | 0.10 | 220 | Medium | 668~1481 | 85~72 | 79~43 |
| BF-2A (Single-phase) | 0.10 | 220 | Low | 627~1388 | 75~64 | 69~38 |
| BF-2.25A (Single-phase) | 0.25 | 220 | High | 1110~2393 | 119~99 | 110~57 |
| BF-2.25A (Single-phase) | 0.25 | 220 | Medium | 1045~2252 | 106~87 | 98~50 |
| BF-2.25A (Single-phase) | 0.25 | 220 | Low | 914~1971 | 81~67 | 75~38 |
| BF-2.25A (Single-phase) | 0.55 | 220 | High | 1763~3800 | 300~249 | 278~143 |
| BF-2.25A (Single-phase) | 0.55 | 220 | Medium | 1502~3237 | 218~180 | 201~104 |
| BF-2.25A (Single-phase) | 0.55 | 220 | Low | 1306~2680 | 165~136 | 152~78 |
| BF-2.5A (Single-phase) | 0.37 | 220 | High | 1178~2680 | 159~163 | 148~107 |
| BF-2.5A (Single-phase) | 0.37 | 220 | Medium | 1109~2522 | 141~144 | 131~95 |
| BF-2.5A (Single-phase) | 0.37 | 220 | Low | 1040~2365 | 124~127 | 116~83 |
| BF-2.5A (Single-phase) | 0.75 | 220 | High | 1377~3941 | 344~352 | 321~231 |
| BF-2.5A (Single-phase) | 0.75 | 220 | Medium | 1594~3626 | 291~298 | 272~196 |
| BF-2.5A (Single-phase) | 0.75 | 220 | Low | 1386~3153 | 220~226 | 205~148 |
| BF-2.0A | 0.18-4P | 380 | - | 852~1532 | 227~208 | 217~176 |
| BF-2.0A | 0.25-4P | 380 | - | 1066~2348 | 251~245 | 213~182 |
| BF-2.0A | 0.32-4P | 380 | - | 1568~3010 | 266~245 | 219~145 |
| BF-2.0A | 0.12-6P | 380 | - | 931~1759 | 110~102 | 92~60 |
| BF-2.0A | 0.18-6P | 380 | - | 1350~2501 | 114~91 | 94~40 |
| BF-2.25A | 0.32-4P | 380 | - | 1304~2090 | 327~320 | 312~282 |
| BF-2.25A | 0.45-4P | 380 | - | 2159~3426 | 320~301 | 260~209 |
| BF-2.25A | 0.55-4P | 380 | - | 2387~3976 | 305~254 | 243~151 |
| BF-2.25A | 0.18-6P | 380 | - | 1642~2548 | 160~147 | 137~92 |
| BF-2.25A | 0.25-6P | 380 | - | 1905~3107 | 142~110 | 107~50 |
| BF-2.5A | 0.55-4P | 380 | - | 1373~2577 | 449~470 | 433~427 |
| BF-2.5A | 0.8-4P | 380 | - | 2265~4302 | 455~502 | 415~380 |
| BF-2.5A | 0.25-6P | 380 | - | 1576~2770 | 220~250 | 200~198 |
| BF-2.8A | 1.1-4P | 380 | - | 2463~4598 | 398~452 | 367~344 |
| BF-2.8A | 1.5-4P | 380 | - | 3504~5866 | 500~422 | 438~258 |
| BF-2.8A | 0.37-6P | 380 | - | 2363~3863 | 241~231 | 213~156 |
| BF-2.8A | 0.55-6P | 380 | - | 2925~4450 | 270~194 | 226~127 |
| BF-3.0A | 1.5-4P | 380 | - | 3071~5520 | 682~750 | 642~649 |
| BF-3.0A | 0.55-6P | 380 | - | 2033~4225 | 298~336 | 285~274 |
| BF-3.15A | 1.8-4P | 380 | - | 3041~5565 | 744~836 | 711~741 |
| BF-3.15A | 2.2-4P | 380 | - | 4343~6820 | 820~839 | 749~699 |
| BF-3.15A | 0.8-6P | 380 | - | 2875~5408 | 359~353 | 328~265 |
| BF-3.55A | 3.0-4P | 380 | - | 4087~8165 | 952~979 | 915~847 |
| BF-3.55A | 4.0-4P | 380 | - | 7424~10913 | 976~938 | 852~703 |
| BF-3.55A | 0.8-6P | 380 | - | 2803~5620 | 407~451 | 388~407 |
| BF-3.55A | 1.5-6P | 380 | - | 4002~8633 | 459~418 | 418~271 |
| BF-3.55A | 0.55-8P | 380 | - | 3301~5646 | 257~248 | 230~185 |
| BF-4.0A | 1.5-6P | 380 | - | 3080~6380 | 552~605 | 539~555 |
| BF-4.0A | 1.8-6P | 380 | - | 5088~7526 | 576~656 | 538~587 |
| BF-4.0A | 2.2-6P | 380 | - | 6842~9130 | 632~665 | 568~550 |
| BF-4.0A | 1.1-8P | 380 | - | 4812~6847 | 355~374 | 319~309 |
| BF-4.5A | 4.0-6P | 380 | - | 8437~13617 | 805~868 | 744~708 |
| BF-4.5A | 5.5-6P | 380 | - | 11750~18520 | 841~869 | 722~539 |
| BF-4.5A | 7.5-6P | 380 | - | 13710~21500 | 867~881 | 705~483 |
| BF-4.5A | 2.2-8P | 380 | - | 9033~13350 | 462~502 | 410~309 |
| BF-5.0A | 6.0-6P | 380 | - | 11441~20500 | 887~950 | 822~812 |
| BF-5.0A | 7.5-6P | 380 | - | 13845~23433 | 938~974 | 841~762 |
| BF-5.0A | 4.0-8P | 380 | - | 11883~18349 | 593~625 | 494~412 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
Air Condition Fan Series

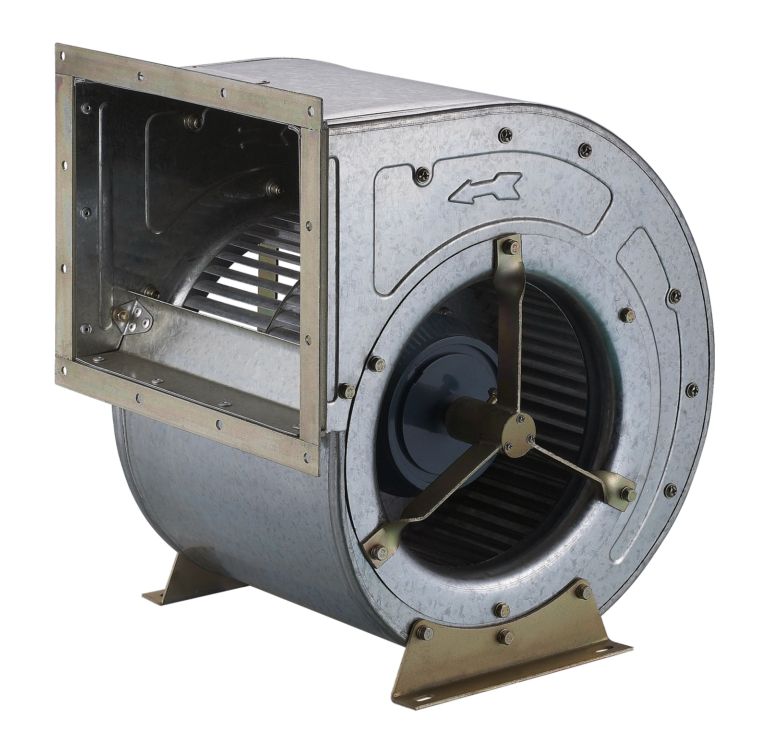

DKT air condition fan
