2JZ double-stage high pressure blower
HDFAN 2JZ double-stage high-pressure blower for metallurgy, chemical, building-material, and process-ventilation duties requiring higher pressure. Confirm airflow, pressure, medium, and installation requirements before selection.
Product Overview
Designed for Industrial Ventilation Projects

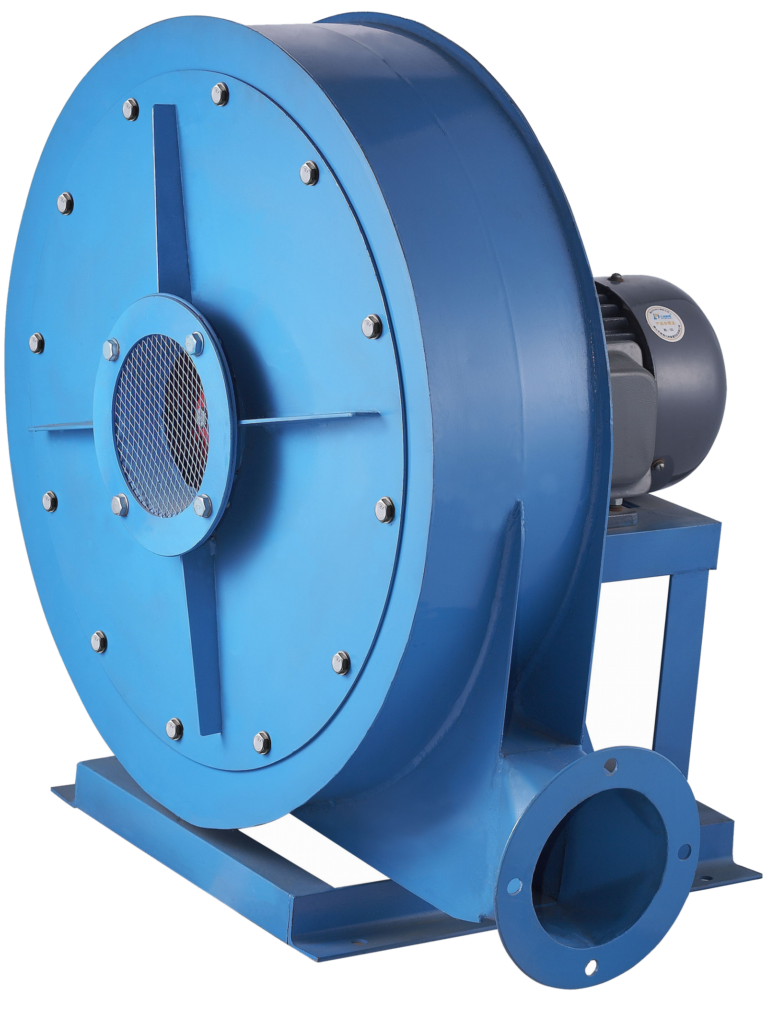

2JZ Double-Stage High-Pressure Blower
Product Overview
The 2JZ series is a double-stage high-pressure blower for process ventilation requiring a higher pressure duty.
Suitable Applications
It can be considered for metallurgy, chemical, building-material, and related process-ventilation applications.
Selection Considerations
Confirm the required airflow, pressure, conveyed medium, operating condition, installation arrangement, and electrical supply before model confirmation.
Information Required for Selection
Please provide airflow, pressure, medium condition, operating temperature, installation layout, and power supply.
Performance Table
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 4A | 0.9 | 2800 | 200~300 | 5100~4650 |
| 4.5A | 2.2 | 2800 | 400~670 | 6420~5300 |
| 5A | 4 | 2900 | 400~1300 | 8100~2550 |
| 5.6A-I | 5.5 | 2900 | 700~1100 | 9700~8080 |
| 5.6A-I | 7.5 | 2900 | 1150~1600 | 7650~3430 |
| 5.6A-II | 7.5 | 2900 | 709~1300 | 10119~9160 |
| 5.6A-II | 11 | 2930 | 1350~2314 | 8950~2247 |
| 6.3A | 11 | 2930 | 1030~1700 | 11920~9520 |
| 6.3A | 15 | 2930 | 1720~2300 | 9440~5000 |
| 6.8A | 15 | 2930 | 980~2000 | 14570~10950 |
| 6.8A | 18.5 | 2930 | 2070~2920 | 10400~3500 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
