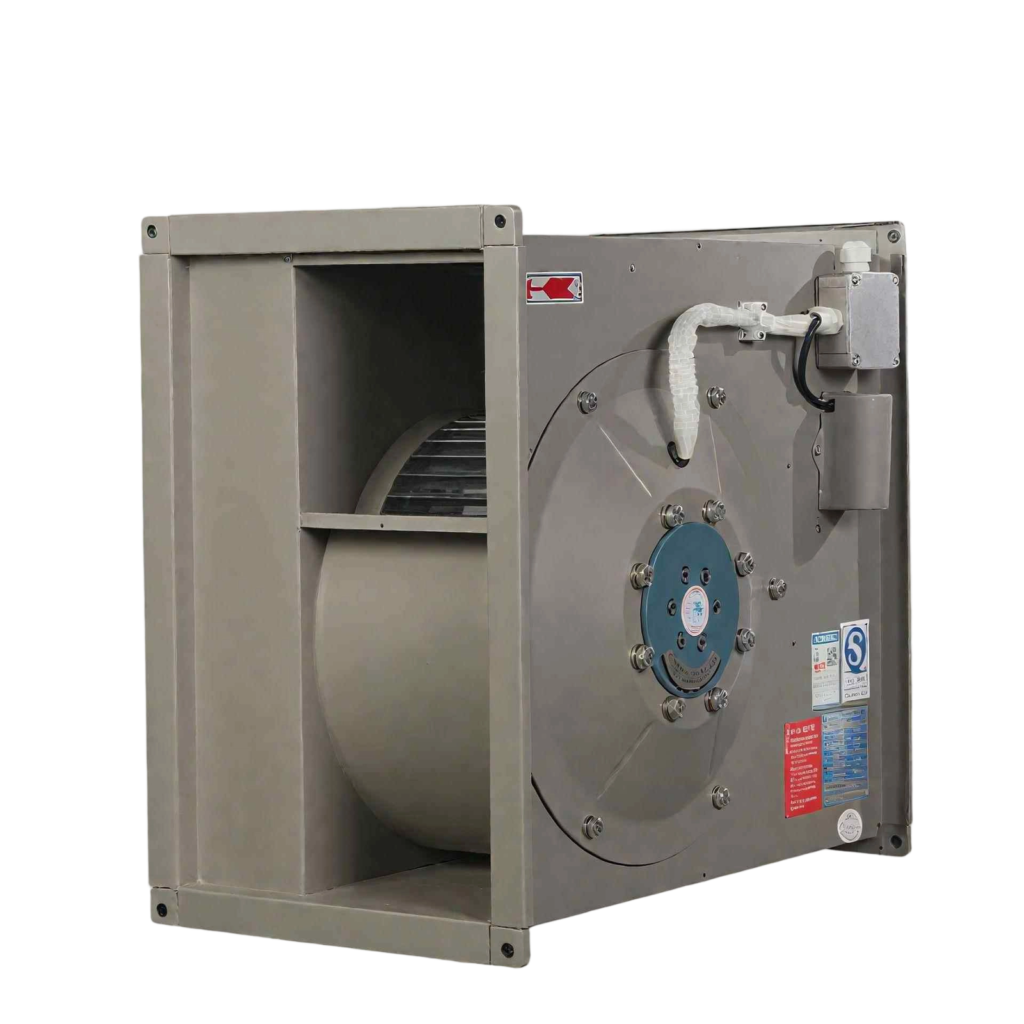

GDF centrifugal pipe fan
Duct & Mixed-Flow Fans

GDF centrifugal pipe fan

HDFAN GDF Centrifugal Pipe Fan is designed for industrial and building ventilation projects. Centrifugal duct fan for duct connection and compact installations; the manual limits conveyed air to non-corrosive Select the final model against required airflow, static pressure, installation arrangement and power supply. Confirm the operating medium and site conditions before ordering.

Send Product ParametersBack to Product List
Product Overview

Designed for Industrial Ventilation Projects

GDF Centrifugal Pipe Fan

Product Overview

Centrifugal duct fan for duct connection and compact installations; the manual limits conveyed air to non-corrosive

Core Characteristics

This series is positioned as a gdf centrifugal pipe fan for the applications stated in the product catalogue. Available performance and construction details vary by model.

Suitable Applications

Centrifugal duct fan for duct connection and compact installations; the manual limits conveyed air to non-corrosive

Operating Conditions

Use the fan only within the medium, installation and operating limits specified for the selected catalogue model. Confirm any temperature, dust loading, corrosive gas, explosive-atmosphere, drive and mounting requirements before order.

Information Required for Selection

Please provide required airflow, static pressure, air medium, operating temperature, installation arrangement, power supply and applicable site restrictions. HDFAN can then confirm the suitable series and model data.

Performance Data

Performance Table

Model(Nº) Power(kW) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa) Noise dB(A)
400×200-41 0.26 220 1200 560~1002 230~57 ≤71.5
400×200-43 0.26 380 1300 652~1165 238~120 ≤72.7
500×250-61 0.22 220 850 643~1134 142~118 ≤65.5
500×250-41 0.45 220 1300 833~1650 332~200 ≤75.5
500×250-43 0.7 380 1310 1015~1898 382~260 ≤76.5
500×300-61 0.22 220 930 1207~2132 212~188 ≤71.4
500×300-41 0.63 220 1250 1617~2857 400~340 ≤79.5
500×300-43 1.0 380 1280 1818~3050 410~352 ≤80.6
600×300-61 0.44 220 850 989~1988 238~158 ≤71.5
600×300-63 0.44 380 900 1048~2109 242~161 ≤73.5
600×300-41 1.0 220 1280 1610~2847 425~307 ≤81.7
600×300-43 1.5 380 1300 1837~2967 477~317 ≤83.6
600×350-61 0.64 220 850 2120~3020 334~283 ≤73.5
600×350-63 0.92 380 870 2311~3286 351~302 ≤73.6
600×350-43 1.7 380 1200 3166~4502 469~371 ≤81.5
600×350-43 2.0 380 1250 3520~4750 509~406 ≤83.4
700×400-83 1.15 380 690 2146~3831 230~142 ≤73.7
700×400-63 1.5 380 910 3108~5679 387~242 ≤79.6
700×400-43 3.7 380 1300 4009~7405 894~314 ≤87.8
800×500-83 1.15 380 690 3496~6646 352~243 ≤74.8
800×500-63 2.5 380 890 4234~7482 576~265 ≤83.5
1000×500-83 1.6 380 690 3715~6924 332~283 ≤79.4
Dimensions

Installation Dimensions

Model L W W1 W2 H H1 H2 Weight(kg)
GDF400×200 450 460 430 400 260 230 200 23
GDF500×250 530 560 530 500 310 280 250 27
GDF500×300 600 560 530 500 360 330 300 35
GDF600×300 640 660 630 600 360 330 300 40
GDF600×350 720 660 630 600 410 380 350 56
GDF700×400 780 760 730 700 460 430 400 80
GDF800×500 900 860 830 800 560 530 500 103
GDF1000×500 980 1060 1030 1000 560 530 500 106
Technical Drawings

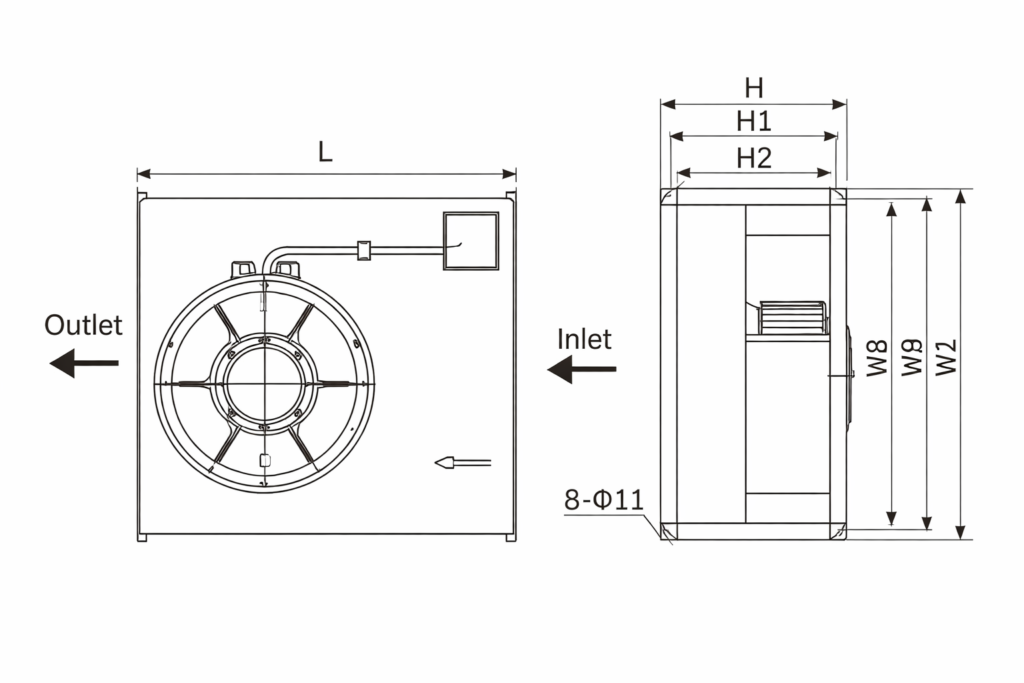

Outline and Installation Drawings

Technical drawing
Product Catalog

Product Details PDF

Review the complete industrial fan catalog for series information, model references, and selection preparation.

Open Product PDF
Explore More

Related Products

Compare other products in this series and send the model or parameters that best fit your project.

View Product List
