High Pressure Series

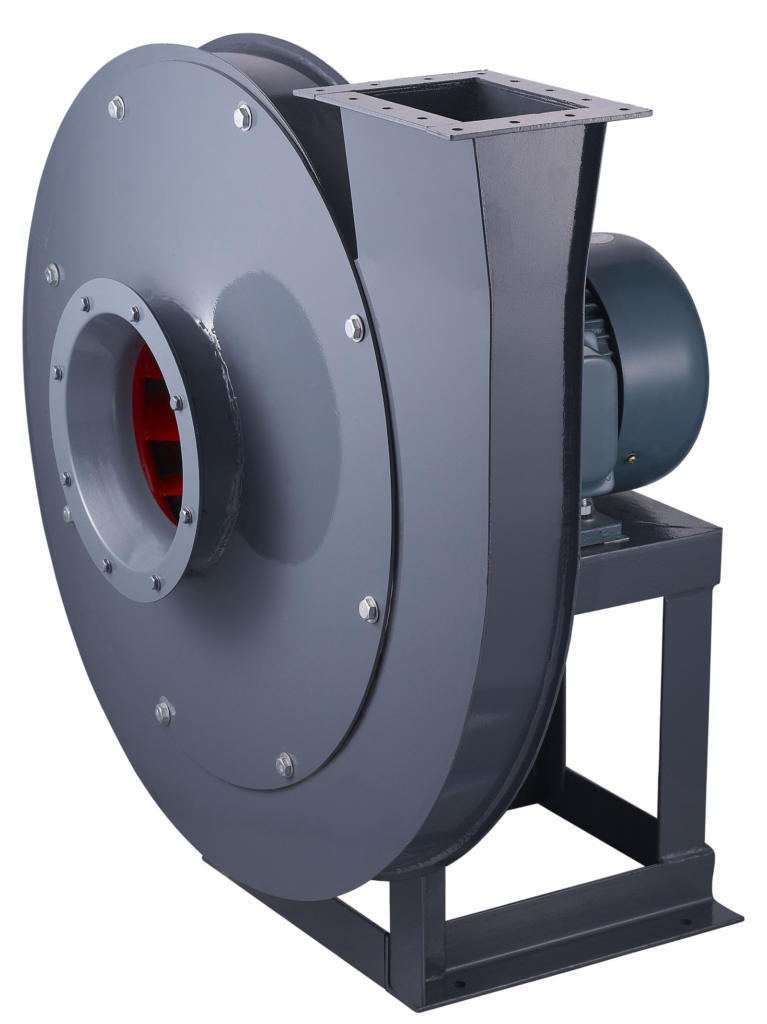

9-19 high pressure centrifugal fan
HDFAN 9-19 high-pressure centrifugal fan for forced ventilation in forging, glass, ceramics, electroplating, battery, radio, and chemical applications. Confirm airflow, pressure, medium, and installation requirements before selection.
Product Overview
Designed for Industrial Ventilation Projects
9-19 High-Pressure Centrifugal Fan
Product Overview
The 9-19 series is a high-pressure centrifugal fan for industrial forced-ventilation duties.
Suitable Applications
Typical applications include forging, glass, ceramics, electroplating, battery, radio, and chemical processes requiring forced air movement.
Selection Considerations
Confirm the required airflow, pressure, conveyed medium, installation arrangement, drive configuration, and electrical supply before model confirmation.
Information Required for Selection
Please provide airflow, pressure, medium condition, operating temperature, installation layout, and power supply.
Performance Table
A series
D series
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 3.5A | 1.5 | 2800 | 552~847 | 2745~2744 |
| 4A | 2.2 | 2800 | 824~1264 | 3584~3597 |
| 4A | 3 | 2900 | 1410~1704 | 3507~3253 |
| 4.5A | 4 | 2900 | 1174~2062 | 4603~4447 |
| 4.5A | 5.5 | 2900 | 2281~2504 | 4297~4112 |
| 5A | 7.5 | 2900 | 1610~2844 | 5697~5517 |
| 5A | 11 | 2930 | 3166~3488 | 5323~5080 |
| 5.6A | 11 | 2930 | 2262~3619 | 7182~7109 |
| 5.6A | 18.5 | 2930 | 3996~4901 | 6954~6400 |
| 6.3A | 18.5 | 2930 | 3220~5153 | 9149~9055 |
| 6.3A | 30 | 2950 | 5690~6978 | 8857~8148 |
| 7.1A | 7.5 | 1450 | 2305~4994 | 2872~2561 |
| 7.1A | 37 | 2950 | 4610~7376 | 11717~11596 |
| 7.1A | 55 | 2970 | 8144~9988 | 11340~10426 |
| 8A | 11 | 1450 | 3297~6484 | 3646~3407 |
| 8A | 15 | 1450 | 5275~7144 | 3584~3231 |
| 9A | 18.5 | 1450 | 4695~7511 | 4597~4551 |
| 9A | 22 | 1450 | 8294~10171 | 4453~4101 |
| 10A | 30 | 1470 | 6440~12450 | 5840~5495 |
| 10A | 37 | 1480 | 13952~15455 | 5244~4958 |
| 11.2A | 18.5 | 960 | 5990~11580 | 3182~2996 |
| 11.2A | 22 | 970 | 12978~14375 | 2860~2705 |
| 11.2A | 55 | 1480 | 9047~15380 | 7364~7236 |
| 11.2A | 75 | 1480 | 17491~21713 | 6927~6246 |
| 12.5A | 30 | 960 | 8327~19985 | 3975~3377 |
| 12.5A | 75 | 1480 | 12577~18447 | 9229~9310 |
| 12.5A | 90 | 1480 | 15512~24316 | 9390~8678 |
| 12.5A | 110 | 1480 | 21381~30186 | 9068~7822 |
| 14A | 75 | 990 | 19888~28078 | 4917~4249 |
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 7.1D | 37 | 2950 | 4610~7376 | 11717~11596 |
| 7.1D | 55 | 2970 | 8144~9988 | 11340~10426 |
| 8D | 75 | 2970 | 6594~11649 | 15034~14546 |
| 8D | 110 | 2980 | 12968~14287 | 14021~13362 |
| 8D | 7.5 | 1450 | 3297~4616 | 3620~3647 |
| 8D | 15 | 1450 | 5275~7144 | 3584~3231 |
| 9D | 15 | 1450 | 4695~7511 | 4597~4551 |
| 9D | 22 | 1450 | 8294~10171 | 4453~4101 |
| 10D | 30 | 1470 | 6440~12450 | 5840~5495 |
| 10D | 37 | 1480 | 13952~15455 | 5244~4958 |
| 11.2D | 75 | 1480 | 17491~21713 | 6927~6246 |
| 11.2D | 15 | 970 | 5990~11580 | 3182~2996 |
| 11.2D | 22 | 970 | 12978~14375 | 2860~2705 |
| 12.5D | 75 | 1480 | 12577~18447 | 9229~9310 |
| 12.5D | 110 | 1480 | 21381~30186 | 9068~7822 |
| 14D | 220 | 1490 | 30040~42409 | 11464~9878 |
| 14D | 75 | 990 | 19888~28078 | 4917~4249 |
| 16D | 400 | 1490 | 57150~63305 | 13808~13035 |
| 16D | 110 | 990 | 29687~41912 | 6456~5575 |
Outline and Installation Drawings
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
