Axial Fan Series
SF(B) axial fan
The SF(B) axial fan is an axial fan for general ventilation, exhaust, and air-circulation applications. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.
Product Overview
Designed for Industrial Ventilation Projects

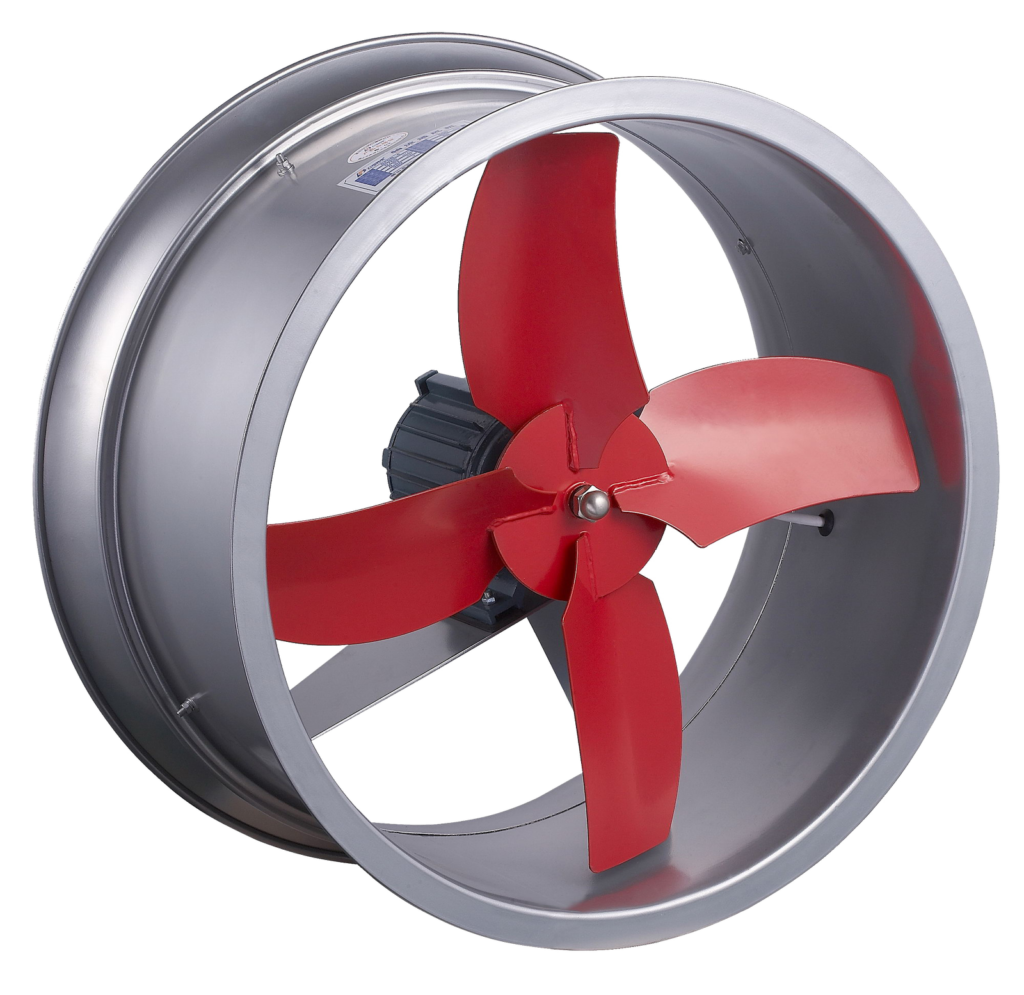

SF(B) axial fan
The SF(B) axial fan is an axial fan for general ventilation, exhaust, and air-circulation applications. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.
Key Features
- Axial-flow configuration for direct air movement
- Suitable for supply or exhaust ventilation
- Flexible integration into commercial and industrial projects
Applications
- Factory and workshop ventilation
- Building exhaust systems
- Equipment and general air circulation
Project Support
Product selection, configuration review, production coordination, and export delivery can be supported according to the application and installation requirements provided by the customer.
Performance Table
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Noise dB(A) |
|---|---|---|---|---|---|---|
| 2B | 0.06 | 220 | 1400 | 900 | 25 | ≤58 |
| 2.5B | 0.09 | 220/380 | 1400 | 1300 | 26 | ≤59 |
| 3B | 0.12 | 220/380 | 1400 | 1800 | 30 | ≤61 |
| 3.5B | 0.18 | 220/380 | 1400 | 2880 | 55 | ≤63 |
| 4B | 0.25 | 220/380 | 1400 | 4370 | 84 | ≤70 |
| 5B | 0.18 | 380 | 910 | 3894 | 45 | ≤68 |
| 5B | 0.37 | 220/380 | 1400 | 5760 | 100 | ≤73 |
| 5.6B | 0.25 | 380 | 910 | 5470 | 50 | ≤71 |
| 5.6B | 0.37 | 380 | 1400 | 8092 | 110 | ≤79 |
| 6B | 0.55 | 220/380 | 1400 | 8660 | 122 | ≤80 |
| 6B | 0.37 | 380 | 910 | 5760 | 65 | ≤73 |
| 7B | 1.1 | 380 | 1400 | 14643 | 126 | ≤83 |
| 7B | 0.75 | 380 | 910 | 9146 | 85 | ≤78 |
Installation Dimensions
| Model | Ø1 | Ø2 | Ø3 | Ø4 | L | L1 | N-Ød | Weight(kg) |
|---|---|---|---|---|---|---|---|---|
| SF-2B | 210 | 230 | 260 | - - | 220 | - - | 3-Ø8 | 7 |
| SF-2.5B | 260 | 280 | 310 | 310 | 220 | - - | 3-Ø8 | 8 |
| SF-3B | 310 | 330 | 360 | 370 | 220 | - - | 3-Ø8 | 9 |
| SF-3.5B | 360 | 380 | 410 | 420 | 230 | - - | 4-Ø8 | 11 |
| SF-4B | 410 | 430 | 460 | 485 | 230 | - - | 4-Ø8 | 12 |
| SF-5B | 510 | 530 | 565 | 585 | 290 | 225 | 4-Ø8 | 19 |
| SF-5.6B | 565 | 585 | 620 | 630 | 290 | 225 | 4-Ø8 | 20 |
| SF-6B | 610 | 630 | 665 | 695 | 290 | 225 | 6-Ø8 | 22 |
| SF-7B | 710 | 735 | 770 | 780 | 350 | - - | 8-Ø8 | 43 |
| SF-7B | 710 | 735 | 770 | 780 | 350 | - - | 8-Ø8 | 40 |
Outline and Installation Drawings
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
