Centrifugal Fan Series

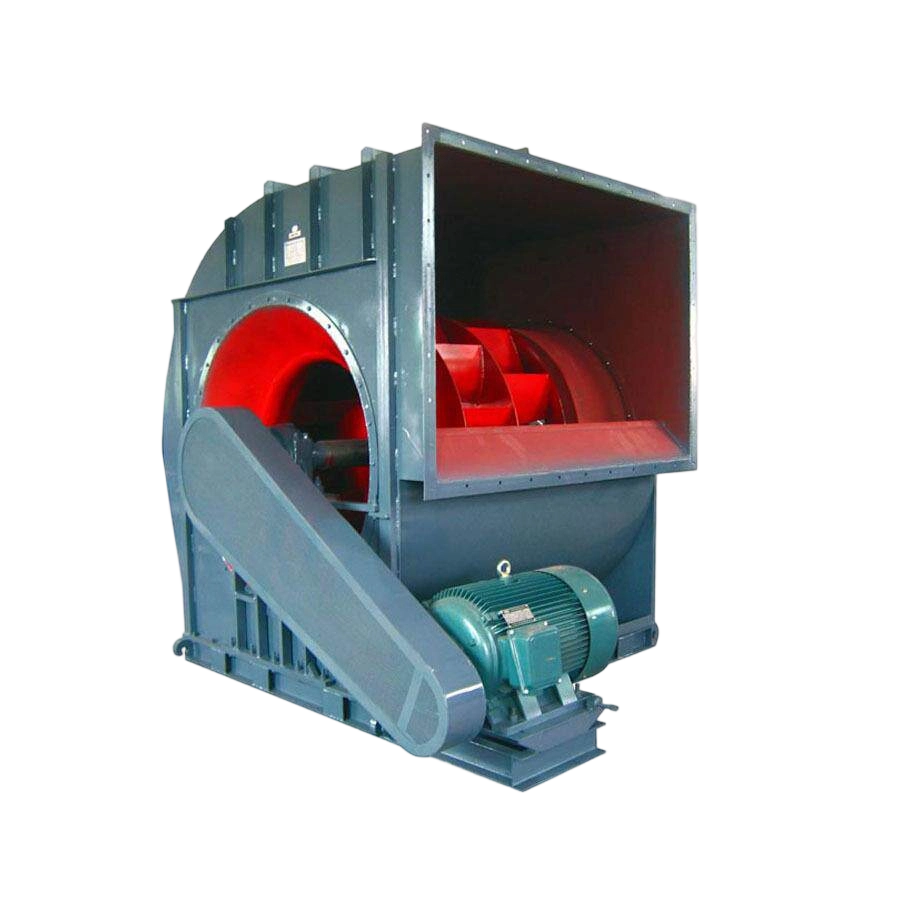

4-2X79 double-suction type centrifugal fan
The 4-2X79 double-suction type centrifugal fan is a centrifugal fan for industrial ventilation, exhaust, and general air-handling applications. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.
Product Overview
Designed for Industrial Ventilation Projects
4-2X79 double-suction type centrifugal fan
The 4-2X79 double-suction type centrifugal fan is a centrifugal fan for industrial ventilation, exhaust, and general air-handling applications. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.
Key Features
- Centrifugal configuration for ducted air movement
- Suitable for industrial ventilation duties
- Project-based system integration support
Applications
- Factory ventilation
- Industrial exhaust systems
- Process and equipment air movement
Project Support
Product selection, configuration review, production coordination, and export delivery can be supported according to the application and installation requirements provided by the customer.
Performance Table
| Model(NP) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 5E | 2.2 | 1200 | 6380-11640 | 618-412 |
| 5E | 4 | 1350 | 7980-13340 | 774-480 |
| 5E | 5.5 | 1550 | 9620-15320 | 1010-647 |
| 5E | 7.5 | 1800 | 9850-17160 | 1382-941 |
| 5E | 11 | 2000 | 13600-18820 | 1607-1206 |
| 6E | 5.5 | 1200 | 10990-20070 | 882-588 |
| 6E | 11 | 1400 | 12890-23490 | 1215-814 |
| 6E | 11 | 1500 | 13660-24550 | 1392-990 |
| 6E | 15 | 1650 | 15190-27000 | 1676-1186 |
| 6E | 18.5 | 1800 | 16760-29820 | 1990-1362 |
| 7E | 7.5 | 900 | 14000-27180 | 627-473 |
| 7E | 11 | 1000 | 15570-30240 | 774-461 |
| 7E | 11 | 1120 | 17370-33840 | 970-549 |
| 7E | 15 | 1250 | 19470-37710 | 1206-716 |
| 7E | 30 | 1600 | 24930-48330 | 1970-1166 |
| 8E | 11 | 900 | 19360-37600 | 785-471 |
| 8E | 15 | 1000 | 21520-41680 | 971-579 |
| 8E | 22 | 1120 | 24080-46720 | 1226-697 |
| 8E | 30 | 1270 | 23760-52960 | 1570-932 |
| 9E | 11 | 740 | 22664-44019 | 671-403 |
| 9E | 15 | 800 | 24502-47588 | 784-471 |
| 9E | 18.5 | 910 | 27871-54131 | 1015-609 |
| 9E | 30 | 1060 | 32465-63054 | 1377-826 |
| 9E | 37 | 1150 | 35222-68407 | 1621-973 |
| 10E | 11 | 580 | 34320-56600 | 520-353 |
| 10E | 15 | 660 | 39000-64400 | 667-461 |
| 10E | 18.5 | 740 | 43800-72200 | 843-579 |
| 10E | 30 | 830 | 49100-81000 | 1059-726 |
| 10E | 37 | 940 | 55700-91800 | 1363-932 |
| 12E | 15 | 520 | 53300-87800 | 603-402 |
| 12E | 22 | 580 | 59400-97800 | 755-510 |
| 12E | 37 | 680 | 69700-114800 | 1040-696 |
| 12E | 55 | 740 | 75800-124800 | 1216-824 |
| 14E | 18.5 | 420 | 68100-112400 | 530-363 |
| 14E | 30 | 520 | 84400-139000 | 814-549 |
| 14E | 75 | 660 | 110600-181800 | 1402-951 |
| 14E | 90 | 740 | 120200-217800 | 1657-1128 |
| 16E | 30 | 370 | 89600-148400 | 539-373 |
| 16E | 55 | 470 | 113800-188000 | 873-598 |
| 16E | 90 | 580 | 140600-231800 | 1334-902 |
| 16E | 132 | 660 | 160200-263800 | 1726-1177 |
| 18E | 37 | 360 | 124200-205000 | 647-431 |
| 18E | 75 | 420 | 145000-239000 | 883-598 |
| 18E | 132 | 520 | 179800-296200 | 1363-932 |
| 18E | 160 | 580 | 200400-330200 | 1687-1147 |
| 20E | 55 | 330 | 156600-257200 | 677-461 |
| 20E | 90 | 420 | 199200-327400 | 1089-745 |
| 20E | 132 | 470 | 222000-367000 | 1373-932 |
| 20E | 200 | 520 | 246800-406000 | 1677-1138 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
