Axial Fan Series

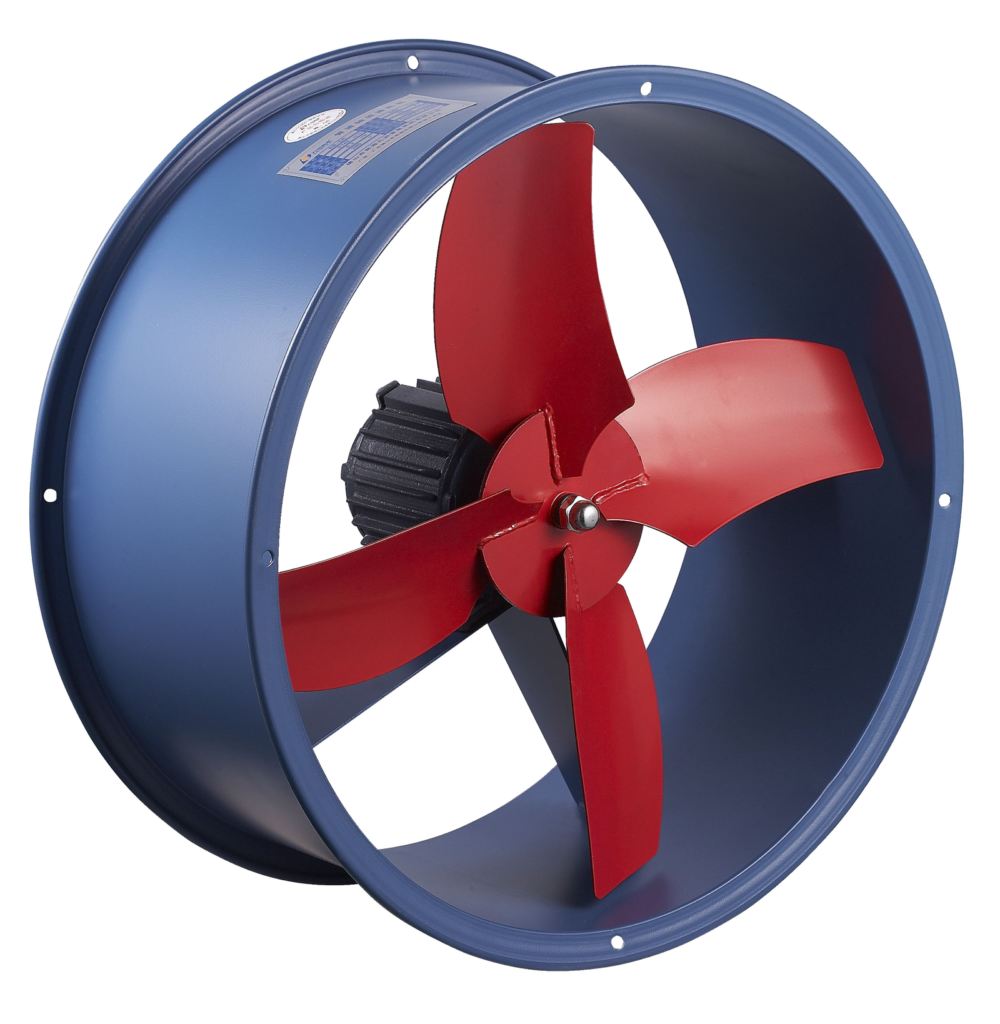

EB axial fan
HDFAN EB Axial Fan is designed for industrial and building ventilation projects. Wall-mounted axial fan series with specially designed twisted blades for duct-connected ventilation where moderate pressure is required; intended for workshops and general ventilation. Select the final model against required airflow, static pressure, installation arrangement and power supply. Confirm the operating medium and site conditions before ordering.
Product Overview
Designed for Industrial Ventilation Projects
EB Axial Fan
Product Overview
Wall-mounted axial fan series with specially designed twisted blades for duct-connected ventilation where moderate pressure is required; intended for workshops and general ventilation.
Core Characteristics
This series is positioned as a eb axial fan for the applications stated in the product catalogue. Available performance and construction details vary by model.
Suitable Applications
Wall-mounted axial fan series with specially designed twisted blades for duct-connected ventilation where moderate pressure is required; intended for workshops and general ventilation.
Operating Conditions
Use the fan only within the medium, installation and operating limits specified for the selected catalogue model. Confirm any temperature, dust loading, corrosive gas, explosive-atmosphere, drive and mounting requirements before order.
Information Required for Selection
Please provide required airflow, static pressure, air medium, operating temperature, installation arrangement, power supply and applicable site restrictions. HDFAN can then confirm the suitable series and model data.
Performance Table
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Noise dB(A) |
|---|---|---|---|---|---|---|
| EB-2A | 0.06 | 220/380 | 1400 | 865 | 25 | ≤57 |
| EB-2.5A | 0.075 | 220/380 | 1400 | 1105 | 32 | ≤58 |
| EB-3A | 0.09 | 220/380 | 1400 | 1530 | 40 | ≤60 |
| EB-3.5A | 0.15 | 220/380 | 1400 | 2448 | 56 | ≤63 |
| EB-4A | 0.205 | 220/380 | 1400 | 3751 | 70 | ≤70 |
| EB-5A | 0.3 | 220/380 | 1400 | 5140 | 75 | ≤72 |
| EB-6A | 0.46 | 220/380 | 1400 | 7502 | 116 | ≤78 |
Installation Dimensions
| Model | Ø1 | Ø2 | Ø3 | L | N-Ød | Weight(kg) |
|---|---|---|---|---|---|---|
| EB-2A | 210 | 230 | 260 | 220 | 3-Ø8 | 7 |
| EB-2.5A | 260 | 280 | 310 | 220 | 3-Ø8 | 8 |
| EB-3A | 310 | 330 | 360 | 220 | 3-Ø8 | 9 |
| EB-3.5A | 360 | 380 | 410 | 230 | 4-Ø8 | 11 |
| EB-4A | 410 | 430 | 460 | 230 | 4-Ø8 | 12 |
| EB-5A | 510 | 530 | 565 | 280 | 4-Ø8 | 17 |
| EB-6A | 610 | 630 | 665 | 280 | 6-Ø8 | 20 |
Outline and Installation Drawings
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
Axial Fan Series
APB/SAB Plastic Exhaust Fan with Shutter
HDFAN APB/ASB Plastic Exhaust Fan with Shutter is designed for industrial and building ventilation projects. Plastic shutter exhaust...
View Details
Axial Fan Series

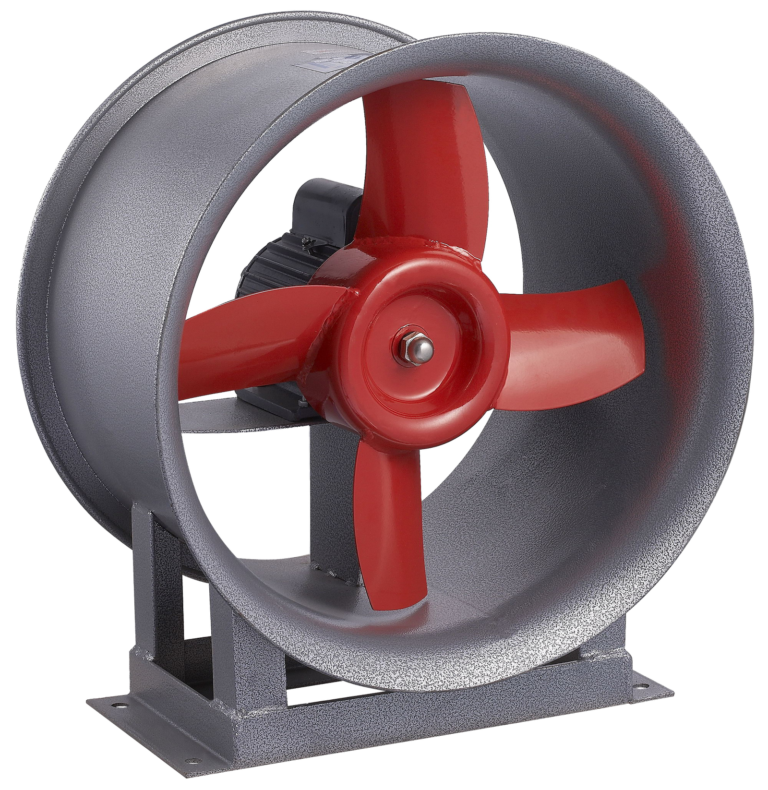

T35 type axial fan
