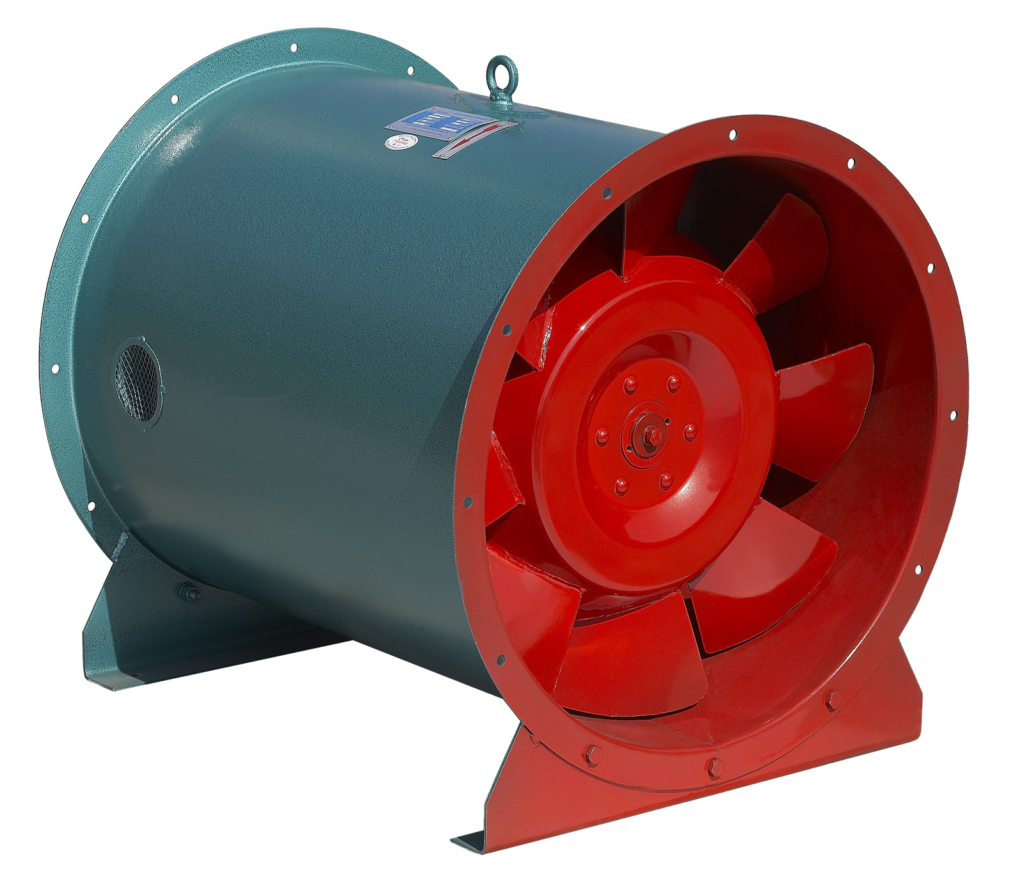

HTF A type axial-flow fire exhaust fan
Fire Smoke Exhaust Fan Series

HTF A type axial-flow fire exhaust fan

The HTF A Type Axial-Flow Fire Exhaust Fan is an axial-flow fan intended for fire and smoke exhaust ventilation projects. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.

Send Product ParametersBack to Product List
Product Overview

Designed for Industrial Ventilation Projects

HTF A Type Axial-Flow Fire Exhaust Fan

The HTF A Type Axial-Flow Fire Exhaust Fan is an axial-flow fan intended for fire and smoke exhaust ventilation projects. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.

Key Features

  • Axial-flow configuration for smoke exhaust duties
  • Suitable for integration with building ventilation systems
  • Project-specific selection support

Applications

  • Building smoke exhaust systems
  • Underground and enclosed-space ventilation
  • Commercial and industrial exhaust projects

Project Support

Product selection, configuration review, production coordination, and export delivery can be supported according to the application and installation requirements provided by the customer.

Performance Data

Performance Table

HTF-l-(A) Single speed series
Model(No) Power(kW) Rotation(r/min) Volume(m³/h) Pressure(Pa) Staticpressure(Pa)
HTF-I-(A)-3.5A 1.1 2800 2725~4986 472~378 437~267
HTF-I-(A)-4A-I 0.55 1400 1970~2700 150~90 134~55
HTF-I-(A)-4A 1.5 2800 3800~6151 450~377 412~276
HTF-I-(A)-4.5A-I 0.75 1400 3060~4250 168~103 152~73
HTF-I-(A)-4.5A 2.2 2800 6120~8500 670~410 607~289
HTF-I-(A)-5A-I 1.1 1400 3410~4912 188~127 175~100
HTF-I-(A)-5A 3 2900 7995~10354 813~642 741~522
HTF-I-(A)-5.5A 4 2900 10900~15200 900~530 834~410
HTF-I-(A)-6A-I 1.5 1400 6599~8045 190~127 166~92
HTF-I-(A)-6A 5.5 2900 13197~16090 950~510 855~370
HTF-I-(A)-6A-II 7.5 2900 17234~21122 1107~504 944~269
HTF-I-(A)-6.5A-I 4 1440 15405~19611 531~380 435~236
HTF-I-(A)-6.5A 5.5 1450 15300~21500 680~425 570~300
HTF-I-(A)-7A-I 3 960 12518~16141 319~267 273~190
HTF-I-(A)-7A-II 5.5 1440 16717~21616 673~595 589~425
HTF-I-(A)-7A 7.5 1450 18908~24380 728~610 622~434
HTF-I-(A)-8A-I 3 960 17222~20800 317~263 265~188
HTF-I-(A)-8A 7.5 1450 26012~31421 545~460 395~288
HTF-I-(A)-8A-II 11 1450 30254~34767 792~670 630~400
HTF-I-(A)-9A-I 4 960 18216~22186 368~246 332~192
HTF-I-(A)-9A-II 7.5 1450 28030~33046 687~450 600~275
HTF-I-(A)-9A 11 1450 30146~36820 929~682 824~522
HTF-I-(A)-10A-I 5.5 960 24019~30255 338~276 296~210
HTF-I-(A)-10A 11 1450 35000~45679 770~630 680~480
HTF-I-(A)-10A-II 15 1450 41365~48591 825~610 700~480
HTF-I-(A)-11A-I 5.5 960 36375~38664 387~326 322~252
HTF-I-(A)-11A-II 11 1450 38821~44966 780~650 703~510
HTF-I-(A)-11A 15 1450 48500~51552 676~580 574~449
HTF-I-(A)-12A-I 11 730 43311~47072 416~351 355~273
HTF-I-(A)-12A-II 15 970 49087~59379 753~609 668~481
HTF-I-(A)-12A 18.5 970 57748~62763 740~624 632~480
HTF-I-(A)-13A-I 11 730 42023~56031 454~338 409~258
HTF-I-(A)-13A 18.5 970 56031~74708 807~600 727~458
HTF-I-(A)-13A-II 22 970 65677~87123 887~510 774~405
HTF-I-(A)-15A-I 15 730 57031~70350 461~350 414~258
HTF-I-(A)-15A 22 970 76041~93800 620~520 575~426
HTF-I-(A)-16A-I 30 970 89518~109686 813~762 723~438
HTF-I-(A)-16A 37 985 96720~115280 962~801 856~460
HTF-I-(A)-16A-II 45 980 96400~131000 1080~659 985~480
HTF-I-(A)-18A-I 55 980 144000~175500 945~510 818~430
HTF-I-(A)-18A 75 985 158740~196000 1050~610 896~514
HTF-I-(A)-20A-I 110 985 247434~276790 1165~729 980~500
HTF-I-(A)-20A 132 985 262583~293736 1259~805 1080~551
HTF- II-(A)Double speed serie
Model(Nº) Power(kW) Rotation(r/min) Volume(m³/h) Pressure(Pa) Staticpressure(Pa)
HTF-II-(A)-5A 3.1/0.8 2900 7995~10354 813~642 741~522
HTF-II-(A)-5A 3.1/0.8 1450 3887~5177 203~160 185~130
HTF-II-(A)-6A 5.9/1.4 2900 13197~16090 990~510 910~370
HTF-II-(A)-6A 5.9/1.4 1450 6599~8045 245~127 215~125
HTF-II-(A)-7A 9.5/3.1 1450 18908~24380 728~610 622~434
HTF-II-(A)-7A 9.5/3.1 960 12518~16141 319~267 273~190
HTF-II-(A)-8A 9.5/3.1 1450 26012~31421 650~600 605~428
HTF-II-(A)-8A 9.5/3.1 960 17222~20800 280~263 265~188
HTF-II-(A)-9A 12/4 1450 30146~36820 929~682 824~522
HTF-II-(A)-9A 12/4 960 19958~24375 407~300 361~200
HTF-II-(A)-10A 12/4 1450 35000~45679 770~630 682~480
HTF-II-(A)-10A 12/4 960 24019~30255 338~276 296~210
HTF-II-(A)-11A 15.5/5.1 1450 48500~51552 680~580 574~449
HTF-II-(A)-11A 15.5/5.1 960 36735~38664 387~165 133~102
HTF-II-(A)-12A 17/8.5 960 55651~62763 740~624 632~486
HTF-II-(A)-12A 17/8.5 720 43311~47072 416~351 355~273
HTF-II-(A)-13A 17/8.5 960 56031~74708 807~600 727~458
HTF-II-(A)-13A 17/8.5 720 42023~56031 454~338 409~258
HTF-II-(A)-15A 21/11 960 76041~93800 480~423 390~215
HTF-II-(A)-15A 21/11 720 57031~70350 260~220 228~109
