High Pressure Series
9-12 high pressure centrifugal fan
HDFAN 9-12 High Pressure Centrifugal Fan is intended for cupola furnace and carton-machinery applications requiring high static pressure. Catalogue models 5A-7.7A cover 1,000-8,092 m³/h airflow and 2,065-12,953 Pa total pressure. Confirm airflow, pressure, medium condition, temperature, and installation arrangement before selection.
Product Overview
Designed for Industrial Ventilation Projects

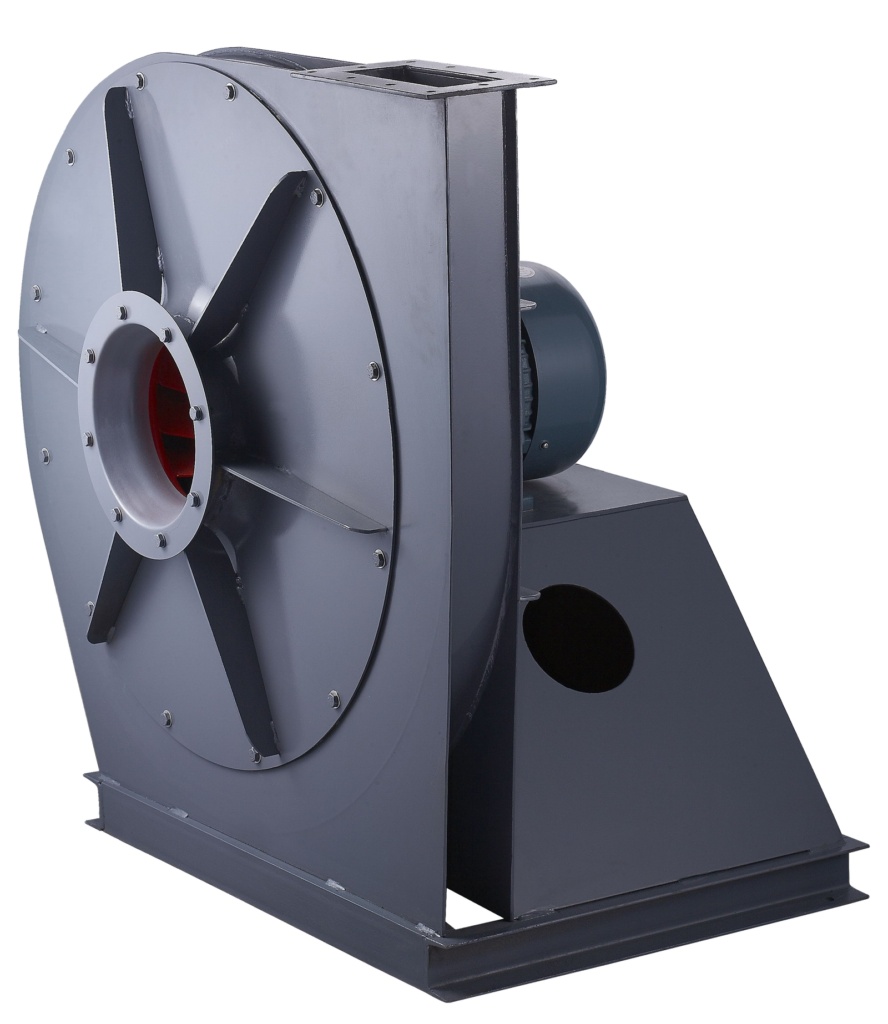

9-12 High Pressure Centrifugal Fan
Product Overview
The 9-12 series is a high-pressure centrifugal fan specified in the catalogue for cupola furnace and carton-machinery applications. It is available in multiple A-type model sizes for duties that require high static pressure.
Core Characteristics
- High-pressure centrifugal configuration.
- Catalogue model range from 5A to 7.7A.
- Listed duties cover 1,000-8,092 m³/h airflow and 2,065-12,953 Pa total pressure.
Suitable Applications
- Cupola furnace air systems.
- Carton-machinery applications.
- High-pressure industrial air movement within the stated operating limits.
Operating Conditions and Limits
The conveyed medium must be non-corrosive, non-self-igniting, and free of adhesive matter. The concentration of dust and hard particulate matter must not exceed 150 mg/m³. The medium temperature must not exceed 80°C.
Information Required for Selection
Please provide the required airflow, total pressure, conveyed medium, operating temperature, installation arrangement, power supply, and the cupola furnace or carton-machinery duty before model confirmation.
Performance Table
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 5A | 5.5 | 2900 | 1000~2680 | 4800~3239 |
| 5A | 7.5 | 2900 | 2700~3400 | 3100~2065 |
| 6.3A | 7.5 | 2900 | 1000~1875 | 8000~8300 |
| 6.3A | 11 | 2930 | 1925~2750 | 8280~7850 |
| 6.3A | 15 | 2930 | 2800~4000 | 7830~6100 |
| 6.8A | 15 | 2930 | 1667~3600 | 9880~9420 |
| 6.8A | 18.5 | 2930 | 3667~4567 | 9350~8400 |
| 6.8A | 22 | 2930 | 4600~5500 | 8350~6760 |
| 7.1A | 15 | 2930 | 1201~2978 | 10515~10821 |
| 7.1A | 18.5 | 2930 | 3566~4148 | 10570~10103 |
| 7.1A | 30 | 2950 | 4818~6344 | 9490~6933 |
| 7.7A | 18.5 | 2930 | 1532~2983 | 12367~12953 |
| 7.7A | 37 | 2950 | 3798~6697 | 12727~10520 |
| 7.7A | 45 | 2970 | 7314~8092 | 9632~8154 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
