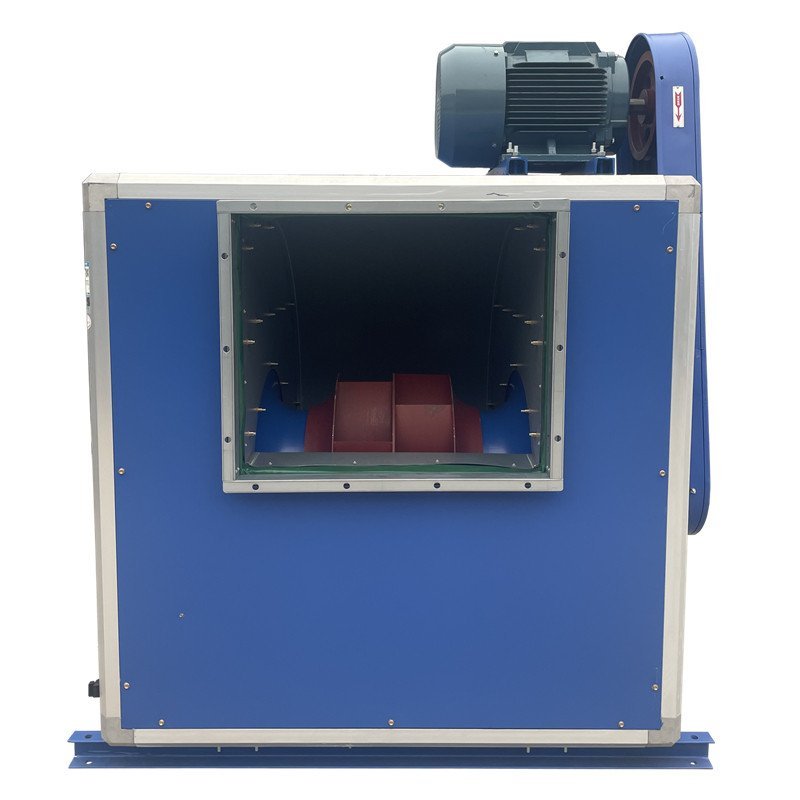

HKF Centrifugal fire exhaust fan
Fire Smoke Exhaust Fan Series

HKF Centrifugal fire exhaust fan

HDFAN HKF centrifugal smoke exhaust fan for fire smoke extraction and ventilation in high-rise buildings and underground projects. Confirm the required operating duty and project conditions before selection.

Send Product ParametersBack to Product List
Product Overview

Designed for Industrial Ventilation Projects

HKF Centrifugal Smoke Exhaust Fan

Product Overview

The HKF series is a centrifugal fan for fire smoke extraction and ventilation projects.

Suitable Applications

It is intended for high-rise buildings, underground projects, and other installations requiring centrifugal smoke-exhaust equipment.

Operating Conditions

Confirm the required ventilation or fire smoke-extraction duty, airflow, pressure, installation arrangement, and controls against the selected project specification.

Information Required for Selection

Please provide airflow, pressure, operating duty, installation location, power supply, and applicable project requirements.

Performance Data

Performance Table

Model Power(kW) Rotation(r/min) Volume(m³/h) Pressure(Pa) Static Pressure(Pa)
HKF-I-(A)№3.6E-VII 0.55 1250 3152~5102 300~122 290~87
HKF-I-(A)№3.6E-VI 0.75 1450 3565~5919 405~165 390~117
HKF-I-(A)№3.6E-V 1.1 1600 4035~6531 493~201 475~142
HKF-I-(A)№3.6E-IV 1.5 1800 4540~7347 624~254 600~180
HKF-I-(A)№3.6E-III 2.2 2000 5043~8163 770~314 742~222
HKF-I-(A)№3.6E-II 3 2200 5548~8979 932~380 898~270
HKF-I-(A)№3.6E-I 4 2400 6102~9877 1128~460 1086~352
HKF-I-(A)№3.6E 5.5 2600 6712~10865 1364~556 1314~394
HKF-I-(A)№4.0E-VI 0.75 1250 3997~6929 467~172 452~124
HKF-I-(A)№4.0E-V 1.1 1450 4636~8038 627~231 608~166
HKF-I-(A)№4.0E-IV 1.5 1600 5116~8870 764~282 740~204
HKF-I-(A)№4.0E-III 2.2 1800 5756~9979 968~357 937~257
HKF-I-(A)№4.0E-II 3 2000 6395~11087 1194~440 1157~317
HKF-I-(A)№4.0E-I 4 2250 7195~12474 1512~557 1464~401
HKF-I-(A)№4.0E 5.5 2400 7674~13305 1720~634 1666~456
HKF-I-(A)№4.5E-VI 1.1 1250 6147~9950 467~188 46~143
HKF-I-(A)№4.5E-V 1.5 1450 7140~11558 629~255 612~192
HKF-I-(A)№4.5E-IV 2.2 1600 7873~12744 765~309 744~234
HKF-I-(A)№4.5E-III 3 1800 8866~14351 969~391 943~296
HKF-I-(A)№4.5E-II 4 2000 9847~15939 1196~483 1165~366
HKF-I-(A)№4.5E-I 5.5 2200 11076~17929 1513~611 1473~463
HKF-I-(A)№4.5E 7.5 2400 11821~19135 1722~695 1676~527
HKF-I-(A)№5.0E-VII 2.2 1120 9413~14752 635~268 653~203
HKF-I-(A)№5.0E-VI 3 1250 10538~16514 791~334 777~254
HKF-I-(A)№5.0E-V 4 1450 12225~19158 1065~450 1045~341
HKF-I-(A)№5.0E-IV 5.5 1600 13484~21131 1297~548 1272~415
HKF-I-(A)№5.0E-III 7.5 1800 15170~23775 1641~693 1610~525
HKF-I-(A)№5.0E-II 11 2000 16862~26425 2026~856 1988~649
HKF-I-(A)№5.0E-I 15 2250 18961~29714 2563~1083 2515~821
HKF-I-(A)№5.0E 18.5 2400 18522~31706 2917~1233 2862~934
HKF-I-(A)№5.6E-VIII 2.2 1000 9702~15401 532~217 461~168
HKF-I-(A)№5.6E-VII 3 1120 10843~17212 668~273 579~211
HKF-I-(A)№5.6E-VI 4 1250 12139~19268 832~340 721~263
HKF-I-(A)№5.6E-V 5.5 1450 14082~22353 1120~457 970~354
HKF-I-(A)№5.6E-IV 7.5 1600 15532~24655 1361~556 1181~431
HKF-I-(A)№5.6E-III 11 1800 17476~27740 1726~704 1495~546
HKF-I-(A)№5.6E-II 15 2000 19423~30831 2131~869 1845~673
HKF-I-(A)№5.6E-I 18.5 2250 21841~34670 2696~1100 2335~852
HKF-I-(A)№5.6E 22 2400 23306~36994 3068~1252 2657~970
HKF-I-(A)№6.0E-VII 4 1000 12214~21072 686~257 671~181
HKF-I-(A)№6.0E-VI 5.5 1120 13679~23602 861~322 842~227
HKF-I-(A)№6.0E-V 7.5 1250 15267~26340 1071~401 1049~283
HKF-I-(A)№6.0E-IV 11 1450 17710~30555 1443~540 1441~381
HKF-I-(A)№6.0E-III 15 1600 19542~33716 1757~657 1718~464
HKF-I-(A)№6.0E-II 18.5 1800 21985~37930 2224~832 2174~587
HKF-I-(A)№6.0E-I 22 2000 24427~42144 2745~1027 2684~725
HKF-I-(A)№6.0E 30 2200 26870~46359 3322~1243 3248~877
HKF-I-(A)№7.0E-VI 5.5 1000 14976~27734 789~422 771~367
HKF-I-(A)№7.0E-V 7.5 1120 16773~31062 989~529 966~460
HKF-I-(A)№7.0E-IV 11 1250 18720~34667 1233~660 1205~574
HKF-I-(A)№7.0E-III 15 1300 19469~36054 1333~713 1302~620
HKF-I-(A)№7.0E-II 18.5 1450 21715~40214 1794~960 1751~835
HKF-I-(A)№7.0E-I 22 1600 23962~44374 2020~1081 1973~940
HKF-I-(A)№7.0E 30 1800 26957~49920 2557~1369 2497~1190
HKF-I-(A)№8.0E-VI 5.5 900 17527~33049 868~555 860~493
HKF-I-(A)№8.0E-V 7.5 1000 19474~37121 1071~686 1063~602
HKF-I-(A)№8.0E-IV 11 1120 21811~41576 1334~860 1333~756
HKF-I-(A)№8.0E-III 15 1250 24341~46399 1674~1072 1660~942
HKF-I-(A)№8.0E-II 18.5 1320 25704~48997 1867~1194 1851~1049
HKF-I-(A)№8.0E-I 22 1450 28236~53823 2252~1441 2234~1267
HKF-I-(A)№8.0E 30 1600 31157~59391 2743~1755 2720~1543
HKF-I-(A)№9.0E-VIII 7.5 720 22895~40940 648~348 569~300
HKF-I-(A)№9.0E-VII 11 830 26393~47195 860~460 756~398
HKF-I-(A)№9.0E-VI 15 900 29692~53094 1012~540 890~468
HKF-I-(A)№9.0E-V 18.5 1000 32990~58993 1249~667 1098~577
HKF-I-(A)№9.0E-IV 22 1120 36950~66072 1567~837 1377~724
HKF-I-(A)№9.0E-III 30 1250 39748~71076 1952~1043 1716~902
HKF-I-(A)№9.0E-II 37 1320 34246~75056 2176~1163 1914~1006
HKF-I-(A)№9.0E-I 45 1450 40922~79219 2625~1403 2310~1214
HKF-I-(A)№9.0E 55 1600 45155~87414 3038~1624 2672~1405
