Axial Fan Series

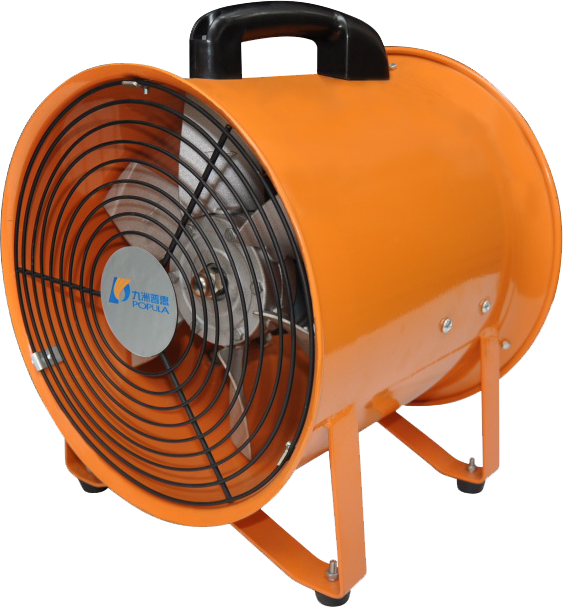

SHT Series Portable Fan for Exhaust or Blowing
HDFAN SHT Portable Axial Fan is designed for industrial and building ventilation projects. Portable axial fan for local supply or exhaust in containers Select the final model against required airflow, static pressure, installation arrangement and power supply. Confirm the operating medium and site conditions before ordering.
Product Overview
Designed for Industrial Ventilation Projects
SHT Portable Axial Fan
Product Overview
Portable axial fan for local supply or exhaust in containers
Core Characteristics
This series is positioned as a sht portable axial fan for the applications stated in the product catalogue. Available performance and construction details vary by model.
Suitable Applications
Portable axial fan for local supply or exhaust in containers
Operating Conditions
Use the fan only within the medium, installation and operating limits specified for the selected catalogue model. Confirm any temperature, dust loading, corrosive gas, explosive-atmosphere, drive and mounting requirements before order.
Information Required for Selection
Please provide required airflow, static pressure, air medium, operating temperature, installation arrangement, power supply and applicable site restrictions. HDFAN can then confirm the suitable series and model data.
Performance Table
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|---|
| SHT2.5A | 0.25 | 220 | 2800 | 1492~1822 | 154~134 |
| SHT3.0A | 0.37 | 220 | 2800 | 2578~3148 | 222~192 |
| SHT3.5A | 0.55 | 220 | 2800 | 3392~4202 | 285~224 |
| SHT4.0A | 0.90 | 220 | 2800 | 4054~5013 | 380~270 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
