High Pressure Series

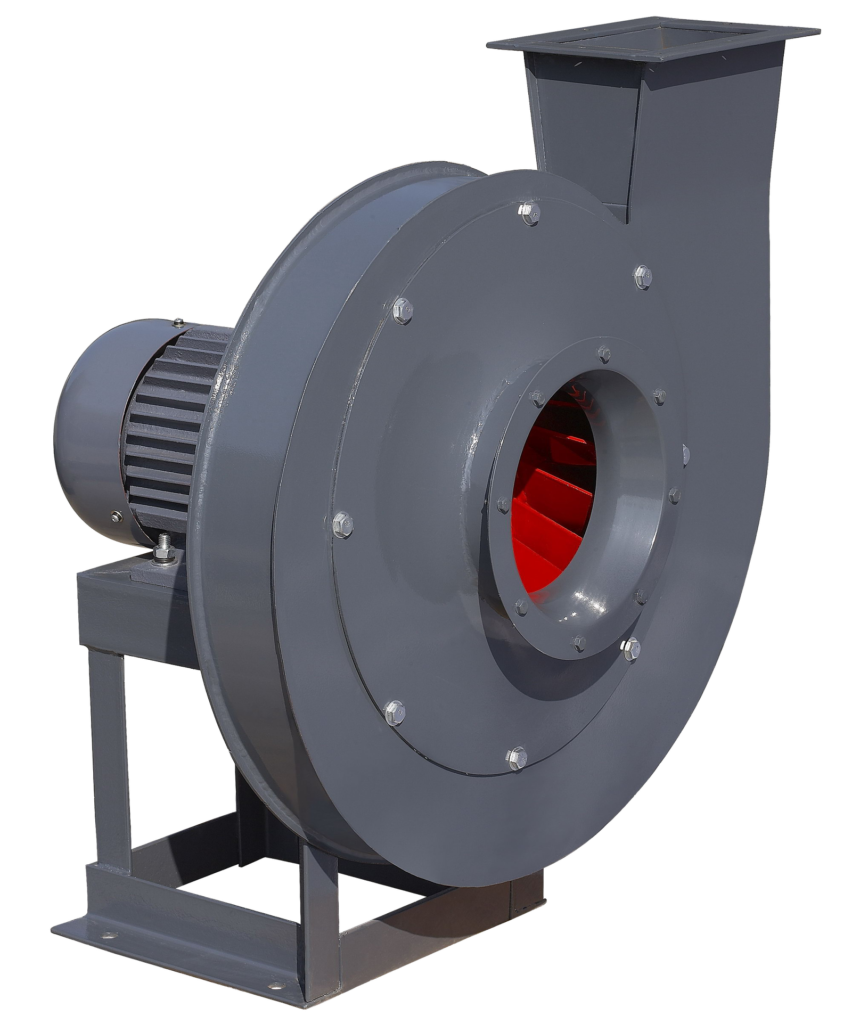

9-26 high pressure centrifugal fan
The 9-26 high pressure centrifugal fan is a high-pressure fan intended for industrial air movement and process ventilation applications. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.
Product Overview
Designed for Industrial Ventilation Projects
9-26 high pressure centrifugal fan
The 9-26 high pressure centrifugal fan is a high-pressure fan intended for industrial air movement and process ventilation applications. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.
Key Features
- Designed for high-pressure air-handling duties
- Suitable for connection to industrial duct systems
- Project-based configuration support
Applications
- Industrial process air systems
- Equipment ventilation
- Dust extraction and conveying support
Project Support
Product selection, configuration review, production coordination, and export delivery can be supported according to the application and installation requirements provided by the customer.
Performance Table
A series
D series
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 3.5A | 3 | 2900 | 1473~2154 | 2950~2608 |
| 4A | 4 | 2900 | 1500~2500 | 3348~3150 |
| 4A | 5.5 | 2900 | 2198~3215 | 3852~3407 |
| 4A | 7.5 | 2900 | 3000~5000 | 2835~1060 |
| 4.5A | 7.5 | 2900 | 3130~3685 | 4910~4776 |
| 4.5A | 11 | 2930 | 3963~4792 | 4661~4256 |
| 5A | 15 | 2930 | 4293~6349 | 6035~5381 |
| 5A | 18.5 | 2930 | 6762 | 5180 |
| 5.6A | 22 | 2930 | 6032~7185 | 7610~7400 |
| 5.6A | 30 | 2950 | 7766~9500 | 7218~6527 |
| 6.3A | 45 | 2970 | 8588~11883 | 9698~8915 |
| 6.3A | 55 | 2970 | 12699~13525 | 8636~8310 |
| 7.1A | 11 | 1450 | 6146~9681 | 3042~2611 |
| 7.1A | 75 | 2970 | 12292~14643 | 12427~12078 |
| 7.1A | 90 | 2970 | 15826~19360 | 11776~10635 |
| 8A | 18.5 | 1450 | 8792~12166 | 3834~3529 |
| 8A | 22 | 1450 | 9639~13001 | 3802~3421 |
| 8A | 30 | 1470 | 11320~13848 | 3638~3294 |
| 9A | 30 | 1470 | 12518~14913 | 4869~4736 |
| 9A | 37 | 1450 | 13723~17322 | 4828~4481 |
| 9A | 45 | 1480 | 16118~19717 | 4620~4181 |
| 10A | 18.5 | 960 | 11369~19897 | 2693~2220 |
| 10A | 55 | 1480 | 17172~21465 | 6143~5920 |
| 10A | 75 | 1480 | 23612~30052 | 5761~5065 |
| 11.2A | 30 | 980 | 15973~21963 | 3346~3140 |
| 11.2A | 37 | 980 | 23959~27953 | 3031~2763 |
| 11.2A | 110 | 1480 | 24126~36189 | 7747~7009 |
| 11.2A | 132 | 1490 | 39205~42221 | 6691~6382 |
| 12.5A | 45 | 980 | 22206~30533 | 4179~3921 |
| 12.5A | 55 | 980 | 24981~36084 | 4121~3615 |
| 12.5A | 75 | 990 | 33309~38860 | 3785~3450 |
| 12.5A | 160 | 1490 | 33540~41925 | 9713~9356 |
| 12.5A | 200 | 1490 | 37732~50310 | 9575~8782 |
| 14A | 75 | 990 | 31197~35097 | 5262~5188 |
| 14A | 90 | 990 | 38997~46796 | 5071~4764 |
| 14A | 110 | 990 | 42897~54596 | 4936~4341 |
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 7.1D | 75 | 2970 | 12292~14643 | 12427~12078 |
| 7.1D | 110 | 2980 | 15826~19360 | 11776~10635 |
| 8D | 132 | 2980 | 17584~20947 | 15955~15504 |
| 8D | 200 | 2980 | 22640~27696 | 15112~13634 |
| 8D | 30 | 1470 | 13001~13848 | 3421~3294 |
| 8D | 18.5 | 1450 | 8792~12166 | 3834~3529 |
| 9D | 45 | 1480 | 16118~19717 | 4620~4181 |
| 9D | 30 | 1470 | 12518~14913 | 4869~4736 |
| 10D | 75 | 1480 | 23612~30052 | 5761~5065 |
| 10D | 55 | 1480 | 17172~21465 | 6143~5920 |
| 11.2D | 132 | 1490 | 39205~42221 | 6691~6382 |
| 11.2D | 110 | 1480 | 24126~36189 | 7747~7009 |
| 11.2D | 37 | 980 | 23959~27953 | 3031~2763 |
| 11.2D | 30 | 980 | 15973~21963 | 3346~3140 |
| 12.5D | 250 | 1490 | 46117~58695 | 9103~7993 |
| 12.5D | 160 | 1490 | 33540~41925 | 9713~9356 |
| 12.5D | 75 | 990 | 33309~38860 | 3785~3450 |
| 12.5D | 45 | 980 | 22206~30533 | 4179~3921 |
| 14D | 75 | 990 | 31197~35097 | 5262~5188 |
| 14D | 250 | 1490 | 47121~53011 | 12285~12109 |
| 16D | 500 | 1490 | 70339~79131 | 16250~16014 |
| 16D | 220 | 990 | 75675~81496 | 5971~5696 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
