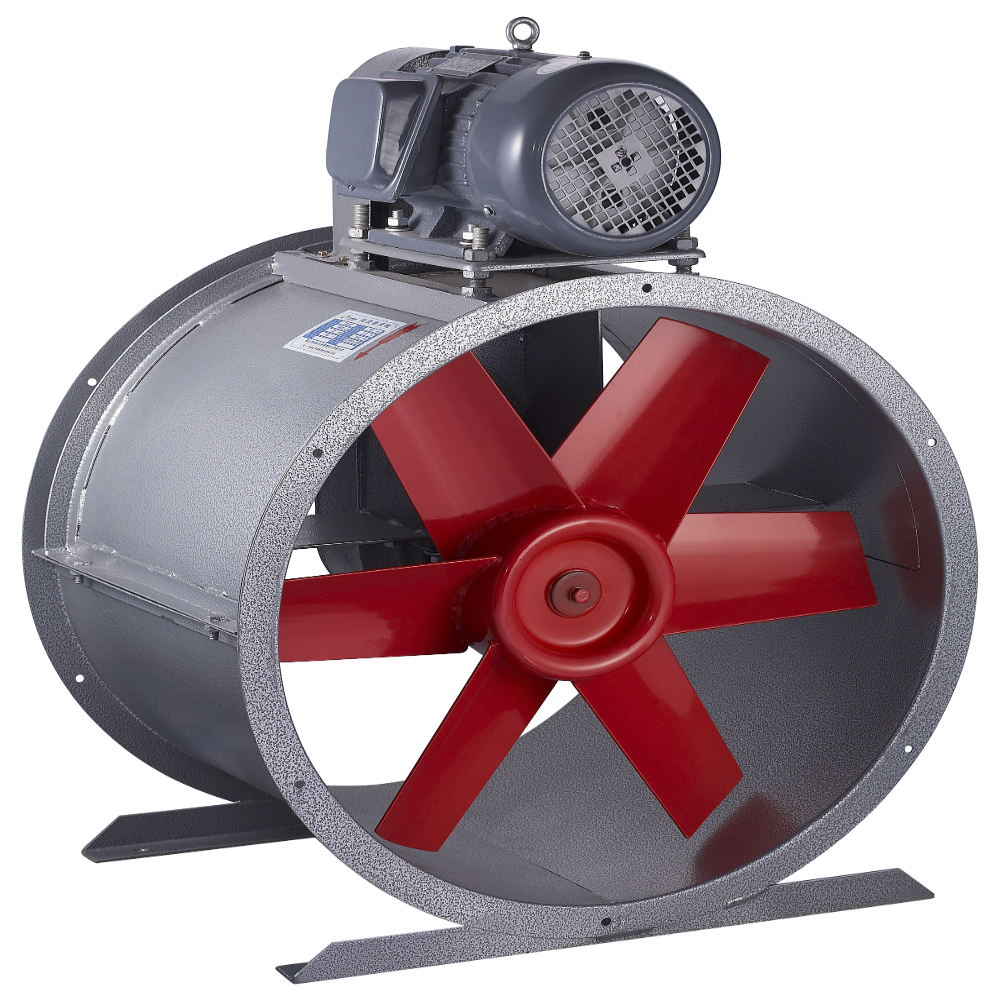

T30 Belt-Driven / Direct-Drive Axial Fan
Axial Fan Series

T30 Belt-Driven / Direct-Drive Axial Fan

HDFAN T30 axial fan for general duct ventilation and longer-duct supply or exhaust duties. Use only with non-corrosive, non-flammable, and non-explosive gas, then confirm airflow, pressure, and installation requirements before selection.

Send Product ParametersBack to Product List
Product Overview

Designed for Industrial Ventilation Projects

T30 Belt-Driven / Direct-Drive Axial Fan

Product Overview

The T30 series is an axial fan for general duct ventilation and for supply or exhaust arrangements with longer duct runs.

Suitable Applications

Use it for industrial duct ventilation, general air supply, and exhaust duties where an axial configuration suits the system layout.

Operating Conditions

The catalogue limits the conveyed gas to non-corrosive, non-flammable, and non-explosive media. Confirm the final airflow, pressure, drive arrangement, and installation details before order.

Information Required for Selection

Please provide airflow, pressure, conveyed medium, duct arrangement, power supply, and installation orientation for model confirmation.

Performance Data

Performance Table

T30 Type A Series
Model(Nº) Power(kW) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa) Noise dB(A)
3A 0.25 220/380 1400 1000~2000 52~26 ≤62
3.5A 0.37 220/380 1400 2000~3000 82~39 ≤68
4A 0.55 220/380 1400 2685~5000 173~118 ≤74
4A 0.75 220/380 1400 5434~8273 172~123 ≤76
5A 1.5 380 1400 5707~9644 228~167 ≤79
5A 0.37 380 910 1722~5090 86~73 ≤73
6A 2.2 220/380 1420 14000 173 ≤84
6A 1.1 380 910 6933~10182 151~140 ≤76
7A 3 380 1420 14979~22000 359~150 ≤87
7A 1.5 380 960 14000 120 ≤80
7A 1.1 380 720 10575 100 ≤78
8A 4 380 1450 9000~25000 420~235 ≤89
8A 2.2 380 960 5875~16319 278~100 ≤84
9A 5.5 380 1450 25000~35000 296~210 ≤89
9A 3 380 960 26000 248 ≤88
10A 4 380 960 36889 250 ≤89
12A 5.5 380 960 44731 260 ≤91
T30 Type C Series
Model(Nº) Power(kW) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa) Noise dB(A)
3C 0.37 380 1400 1750 30 ≤67
3.5C 0.55 380 1400 2500 40 ≤68
4C 0.75 380 1600 4148 90 ≤74
4C 0.55 380 1400 3500 79 ≤73
5C 1.5 380 1600 8460 128 ≤84
5C 1.1 380 1450 7667 100 ≤80
5C 2.2 380 1800 9517 162 ≤85
6C 1.5 380 1200 11590 123 ≤79
6C 2.2 380 1450 14000 179 ≤84
6C 3 380 1600 15448 217 ≤85
7C 3 380 1450 19000 226 ≤89
8C 4 380 1450 24500 221 ≤91
9C 5.5 380 1450 31421 215 ≤92
10C 4 380 960 27755 134 ≤87
12C 7.5 380 960 44731 260 ≤93
Dimensions

Installation Dimensions

T30 Type A Series
Model Motor Power Φ1 (mm) Φ2 (mm) Φ3 (mm) Φ4 (mm) N-Φd1 L1 (mm) L2 (mm) L3 (mm) L4 (mm) L5 (mm) H (mm) N-Φd2 Weight (kg, with motor)
3.0A 0.25kW 310 330 360 370 3-Φ8 330 240 180 310 285 275 4-10 15
3.5A 0.37kW 360 380 410 420 4-Φ8 330 250 190 360 325 302 4-12.5×25 21
4A 0.55kW 410 430 460 485 4-Φ8 350 250 190 400 365 330 4-12.5×25 25
5A 0.75kW 510 530 565 585 4-Φ8 410 300 240 500 465 410 4-12.5×25 32
5A 0.37kW 510 530 565 585 4-Φ8 410 300 240 500 465 410 4-12.5×25 32
5A 1.5kW 510 530 565 585 4-Φ8 410 300 240 500 465 410 4-12.5×25 49
6A 2.2kW 610 635 665 695 6-Φ11 435 320 260 650 615 450 4-12.5×25 66
6A 1.1kW 610 635 665 695 6-Φ11 435 320 260 650 615 450 4-12.5×25 60
7A 3kW 710 750 780 - 8-Φ11 425 - 365 750 715 450 4-12.5×25 81
7A 1.5kW 710 750 780 - 8-Φ11 425 - 365 750 715 450 4-12.5×25 72
7A 1.1kW 710 750 780 - 8-Φ11 425 - 365 750 715 450 4-12.5×25 77
8A 4kW 810 850 890 - 8-Φ11 425 - 365 850 800 550 4-15×25 105
8A 2.2kW 810 850 890 - 8-Φ11 425 - 365 850 800 550 4-15×25 103
9A 5.5kW 910 950 990 - 8-Φ11 550 - 490 950 900 630 4-15×25 154
9A 3kW 910 950 990 - 8-Φ11 550 - 490 950 900 630 4-15×25 149
10A 4kW 1010 1050 1090 - 8-Φ11 550 - 490 1050 1000 685 4-15×25 176
12A 5.5kW 1210 1260 1310 - 8-Φ11 650 - 570 1250 1200 780 4-15×25 232
T30 Type C Series
Model Motor Ø1 (mm) Ø2 (mm) Ø3 (mm) n-Ød1 L1 (mm) L2 (mm) L3 (mm) L4 (mm) H1 (mm) H2 (mm) n-Ød2 Weight (kg)
3C 71-4-0.37kW 310 340 370 4-Ø8 450 410 300 230 195 535 4-12.5×25 31
3.5C 80-4-0.55kW 360 395 420 6-Ø8 450 410 350 280 220 625 4-12.5×25 36
4C 80-4-0.55kW 410 440 470 6-Ø8 450 410 400 320 246 660 4-12.5×25 38
4C 80-4-0.75kW 410 440 470 6-Ø8 450 410 400 320 246 660 4-12.5×25 39
5C 90S-4-1.1kW 510 540 570 6-Ø10 505 455 500 420 295 770 4-12.5×25 56
5C 90L-4-1.5kW 510 540 570 6-Ø10 505 455 500 420 295 770 4-12.5×25 57
5C 100L-4-2.2kW 510 540 570 6-Ø10 505 455 500 420 295 770 4-12.5×25 64
6C 90L-4-1.5kW 610 645 670 6-Ø11 505 455 600 500 348 900 4-12.5×25 69
6C 100L-4-2.2kW 610 645 670 6-Ø11 505 455 600 500 348 900 4-12.5×25 76
6C 100L-4-3kW 610 645 670 6-Ø11 505 455 600 500 348 900 4-12.5×25 80
7C 100L-4-3kW 710 750 790 8-Ø11 555 505 700 600 408 1010 4-15×25 117
8C 112M-4-4kW 810 850 890 8-Ø11 555 505 800 700 458 1130 4-15×25 137
9C 132S-4-5.5kW 910 950 1010 10-Ø11 720 650 850 700 530 1270 4-15×25 208
10C 132M-6-4kW 1010 1050 1090 10-Ø11 720 650 950 800 580 1320 4-15×25 250
12C 160M-6-7.5kW 1210 1260 1310 12-Ø11 850 780 1150 1000 670 1470 4-15×25 364

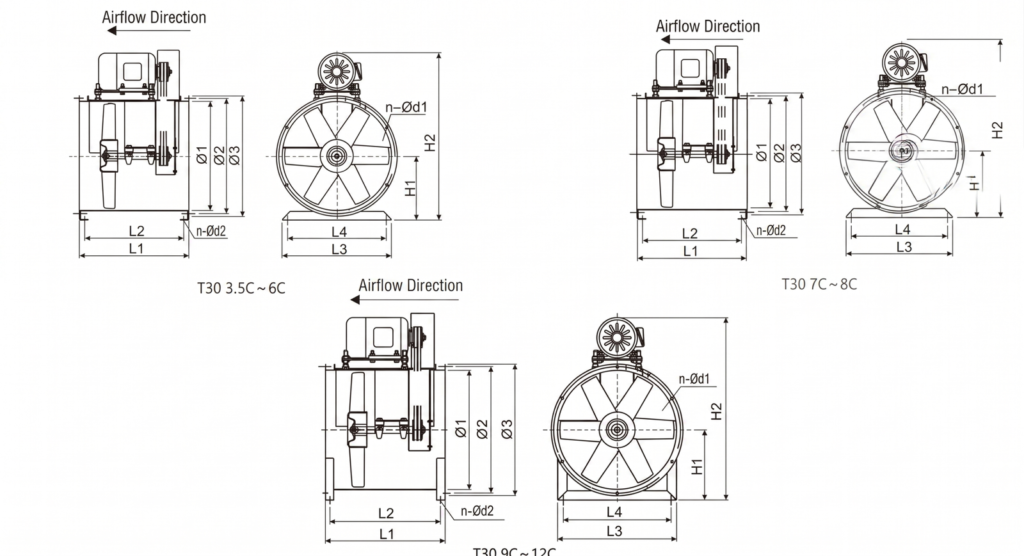

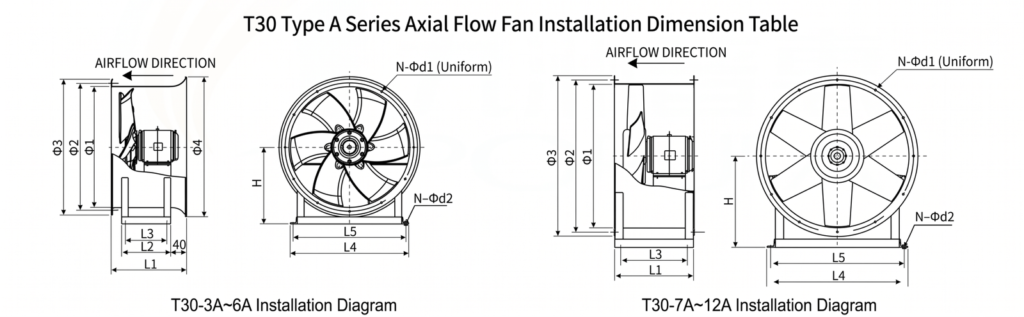

Technical Drawings

Outline and Installation Drawings

Technical drawingTechnical drawing
