Axial Fan Series

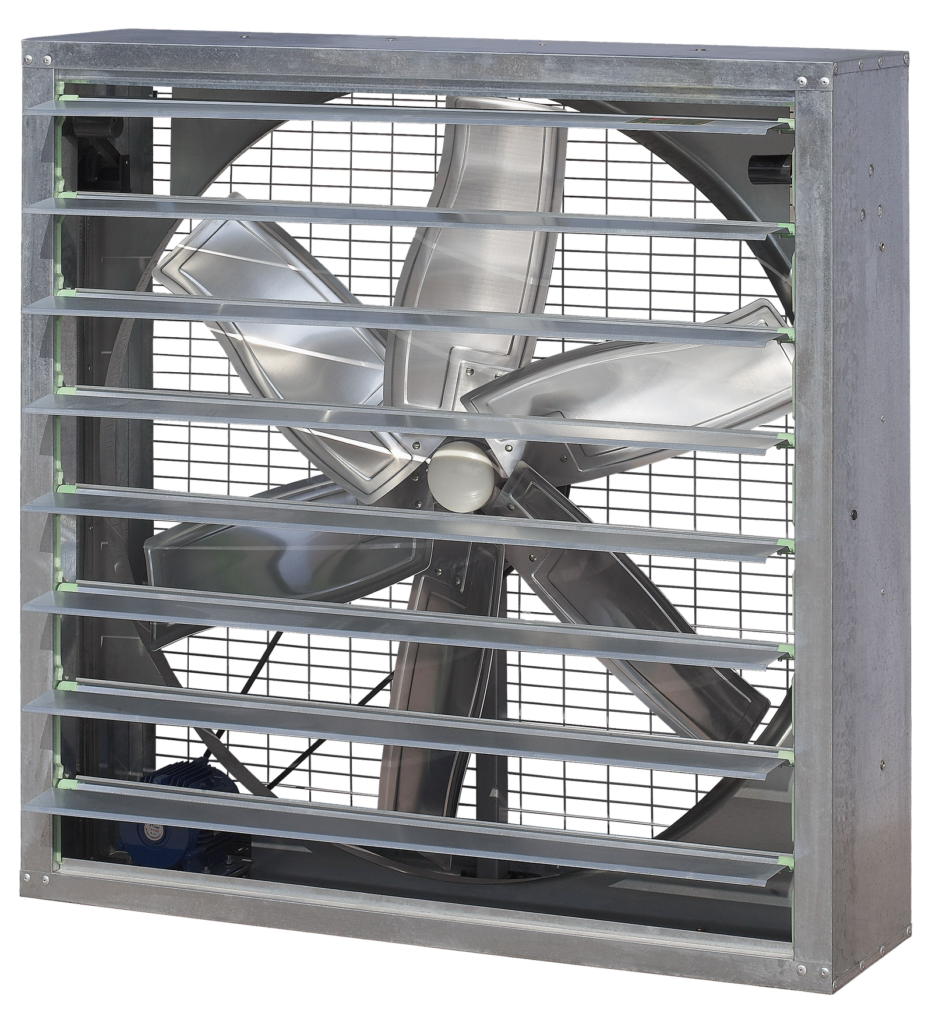

JS type exhaust fan
The JS type exhaust fan is an axial fan for general ventilation, exhaust, and air-circulation applications. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.
Product Overview
Designed for Industrial Ventilation Projects
JS type exhaust fan
The JS type exhaust fan is an axial fan for general ventilation, exhaust, and air-circulation applications. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.
Key Features
- Axial-flow configuration for direct air movement
- Suitable for supply or exhaust ventilation
- Flexible integration into commercial and industrial projects
Applications
- Factory and workshop ventilation
- Building exhaust systems
- Equipment and general air circulation
Project Support
Product selection, configuration review, production coordination, and export delivery can be supported according to the application and installation requirements provided by the customer.
Performance Table
JS-II Exhaust Fan (Motor Directly Driven Type / A-Type Square Type)
JS-II Exhaust Fan (Belt Driven Type / C-Type Square Type)
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Noise dB(A) | Remarks |
|---|---|---|---|---|---|---|
| JS-II-4A | 0.37 | 220/380 | 1400 | 7200 | ≤73 | With louver \ with front-and-back protective net |
| JS-II-5A | 0.55 | 220/380 | 1400 | 8600 | ≤75 | With louver \ with front-and-back protective net |
| JS-II-6A | 0.25 | 220/380 | 720 | 17000 | ≤70 | With louver \ with front-and-back protective net |
| JS-II-8A | 0.4 | 220/380 | 520 | 23000 | ≤71 | With louver \ with front-and-back protective net |
| JS-II-9A | 0.55 | 220/380 | 520 | 27500 | ≤73 | With louver \ with front-and-back protective net |
| JS-II-10A | 0.55 | 380 | 460 | 32000 | ≤74 | With louver \ with front-and-back protective net |
| JS-II-12A | 0.75 | 380 | 460 | 37000 | ≤75 | With louver \ with front-and-back protective net |
| JS-II-13A | 1.1 | 380 | 460 | 44500 | ≤78 | With louver \ with front-and-back protective net |
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Noise dB(A) | Remarks |
|---|---|---|---|---|---|---|
| JS-II-7C | 0.55 | 220/380 | 640 | 18000 | ≤71 | With louver \ with front-and-back protective net |
| JS-II-8C | 0.55 | 220/380 | 520 | 23000 | ≤71 | With louver \ with front-and-back protective net |
| JS-II-9C | 0.75 | 220/380 | 520 | 27500 | ≤73 | With louver \ with front-and-back protective net |
| JS-II-10C | 0.75 | 220/380 | 460 | 32000 | ≤74 | With louver \ with front-and-back protective net |
| JS-II-12C | 1.1 | 220/380 | 460 | 37000 | ≤75 | With louver \ with front-and-back protective net |
| JS-II-13C | 1.1 | 220/380 | 460 | 44500 | ≤78 | With louver \ with front-and-back protective net |
| JS-II-14C | 1.5 | 220/380 | 520 | 55000 | ≤78 | With louver \ with front-and-back protective net |

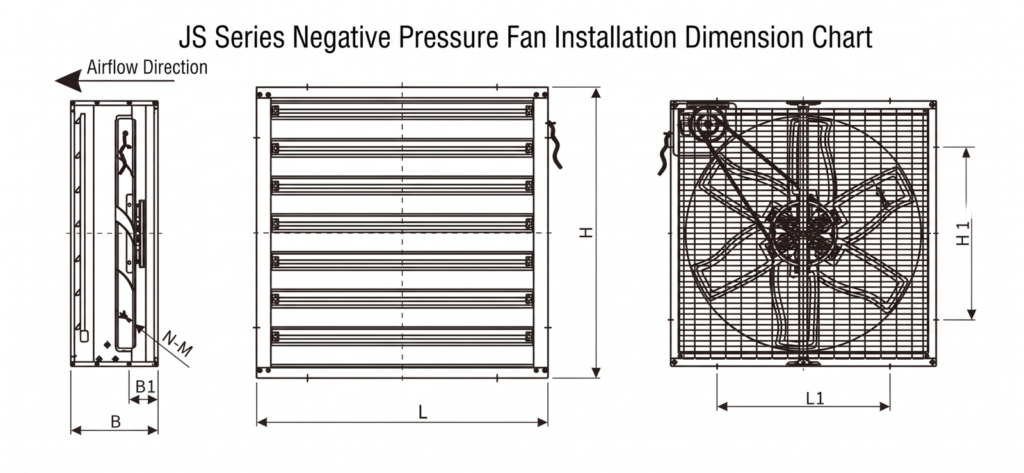

Installation Dimensions
C-Type Louvered Window Installation Dimension Table
A-Type with Louver Installation Dimension Table
A/C-Type with Front & Back Protective Net Installation Dimension Table
| Model | L | B | H | L1 | B1 | H | N-M | Impeller Dia(φ) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|
| 7C | 902 | 342 | 900 | 600 | 133 | 800 | 8-M8 | 680 | 39 |
| 8C | 982 | 342 | 900 | 600 | 133 | 800 | 8-M8 | 780 | 41 |
| 9C | 1045 | 392 | 1160 | 735 | 175 | 8 | 8-M8 | 965 | 46.5 |
| 10C | 1122 | 342 | 920 | 735 | 133 | 8 | 8-M8 | 1040 | 54 |
| 12C | 1238 | 420 | 1200 | 795 | 235 | 8 | 8-M8 | 1220 | 69 |
| 13C | 1402 | 1480 | 1200 | 800 | 1260 | 8 | 12-M8 | 1260 | 79 |
| Model(Nº) | L | B | H | L1 | B1 | H1 | N-M | Impeller Φ(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4A | 502 | 342 | 502 | - | - | - | - | 395 | 18 |
| 5A | 602 | 342 | 602 | - | - | - | - | 495 | 22 |
| 6A | 752 | 342 | 750 | - | - | - | 8-M8 | 580 | 32 |
| 8A | 982 | 372 | 980 | 600 | 210 | 600 | 8-M8 | 780 | 45 |
| 9A | 1052 | 372 | 1050 | 660 | 220 | 660 | 8-M8 | 880 | 50 |
| 10A | 1112 | 372 | 1110 | 660 | 220 | 660 | 8-M8 | 965 | 55 |
| 12A | 1222 | 402 | 1220 | 795 | 250 | 795 | 8-M8 | 1040 | 72 |
| 13A | 1383 | 402 | 1381 | 600 | 250 | 795 | 8-M8 | 1220 | 86.5 |
| Model(Nº) | L | B | H | L1 | B1 (A-Type) | B1 (C-Type) | H1 | N-M | Impeller Φ(mm) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6A | 752 | 282 | 750 | 600 | 210 | - | 600 | 8-M8 | 580 | 28 |
| 7C | 902 | 332 | 900 | 600 | 210 | 133 | 600 | 8-M8 | 680 | 34 |
| 8A/8C | 982 | 332 | 980 | 600 | 210 | 133 | 600 | 8-M8 | 780 | 40/36.5 |
| 9A/9C | 1052 | 332 | 1050 | 660 | 220 | 133 | 660 | 8-M8 | 880 | 43/39 |
| 10A/10C | 1112 | 332 | 1110 | 660 | 220 | 133 | 660 | 8-M8 | 965 | 48/42 |
| 12A | 1222 | 362 | 1220 | 795 | -- | 133 | 795 | 8-M8 | 1040 | 62.5 |
| 12C | 1222 | 332 | 1220 | 795 | - | 133 | 795 | 8-M8 | 1040 | 46 |
| 13A | 1383 | 362 | 1381 | 795 | 250 | - | 795 | 8-M8 | 1220 | 76 |
| 13C | 1383 | 332 | 1381 | 795 | 250 | - | 795 | 8-M8 | 1220 | 52 |
| 14C | 1480 | 372 | 1480 | 1060 | - | 133 | 1060 | 12-M8 | 1260 | 66 |
Outline and Installation Drawings
