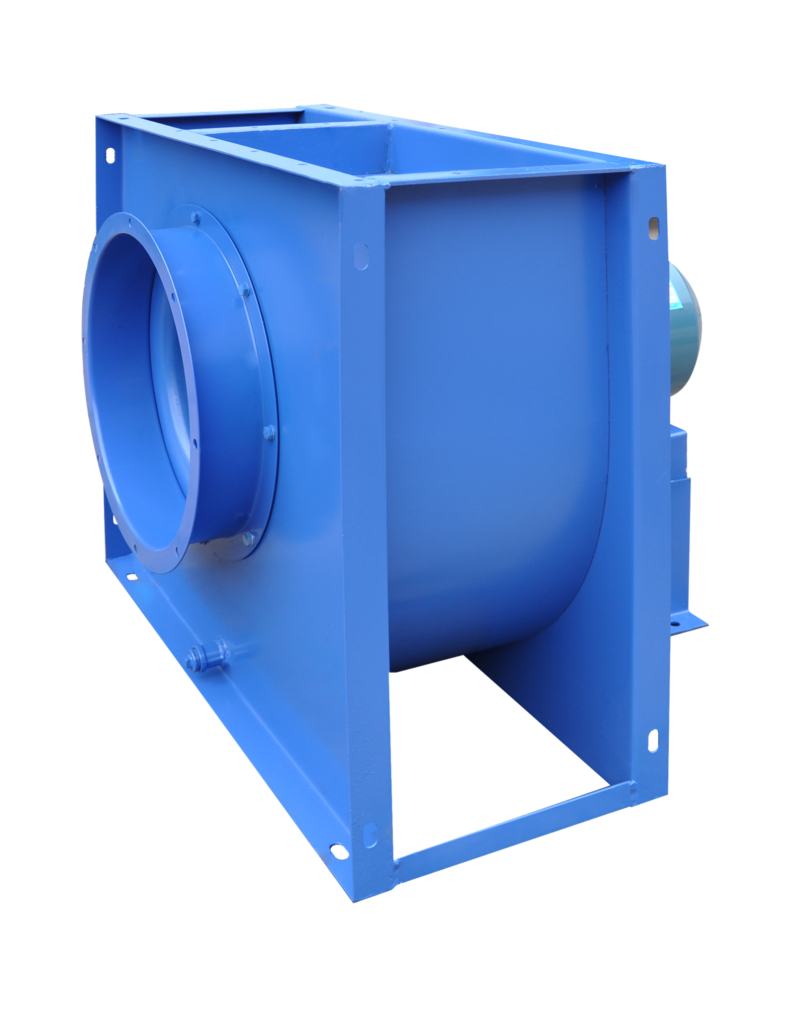

XBF multi-wings centrifugal fan for extraction smoke

Name: XBF multi-wings centrifugal fan for extraction smoke | HDFAN
SKU: HSD-84

The XBF Multi-Wing Centrifugal Fan for Smoke Extraction is a multi-wing centrifugal fan intended for smoke extraction and ventilation applications. It is a practical choice for B2B buyers, contractors, and equipment manufacturers seeking a project-oriented fan solution.

Send Product Parameters Back to Product List

Product Overview

Designed for Industrial Ventilation Projects

XBF Multi-Wing Centrifugal Fan for Smoke Extraction

Key Features

Multi-wing centrifugal configuration
Designed for smoke extraction and exhaust duties
Suitable for connection to ducted ventilation systems

Applications

Smoke extraction systems
Commercial kitchen and workshop exhaust
Building ventilation projects

Project Support

Product selection, configuration review, production coordination, and export delivery can be supported according to the application and installation requirements provided by the customer.

Selection Notes

Information Needed for Model Confirmation

Required airflow and pressure, or plant area and air-change target.
Working temperature, dust, smoke, oil fume, humidity, or corrosion conditions.
Installation method, duct length, power supply, and noise requirements.

How to Read Key Parameters

Airflow: Shows the volume of air moved. Confirm the required ventilation rate or process air demand.
Static Pressure: Allow for ducts, elbows, filters, outlets, and other system resistance.
Motor Power: Depends on the final duty point and efficiency; it should not be selected by power alone.
Voltage & Frequency: State the local supply, such as 380V / 50Hz / 3Ph, before confirming the motor.
Medium & Installation: Temperature, dust, moisture, corrosion, orientation, and mounting affect construction and configuration.

Performance Data

Performance Table

XBF-A Type Series

Model(No)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Static pressure(Pa)	Noise dB(A)
2.8A	1.1	220/380	1400	1388~3500	1000~642	569~478	≤74
3A	2.2	220	1420	2976~4500	800~650	710~580	≤78
3A	1.5	220/380	1400	2672~4118	835~796	759~617	≤77
3A	0.75	380	910	1769~3065	365~324	334~226	≤68
3.5A	3	220/380	1450	4187~5626	1100~1139	1006~1008	≤82
3.5A	1.1	220/380	910	2769~3724	483~499	442~443	≤74
4A	4	380	1450	5048~8050	1142~1020	1047~702	≤79
4A	5.5	380	1450	4941~8401	1252~1345	1167~1100	≤87
4A	2.2	380	960	4539~6947	613~315	544~156	≤80
4A	3	380	960	4250~8000	569~434	500~275	≤78
4.5A	4	380	960	4290~9528	750~857	709~653	≤75
4.5A	7.5	380	1450	7780~11078	1374~1025	1213~762	≤81
5A	5.5	380	960	7148~12000	976~1017	906~844	≤79
5A	7.5	380	960	12900~14388	980~937	750~652	≤84
5A	11	380	960	12238~18500	1337~1110	1225~858	≤79
6A	7.5	380	960	11015~16103	1204~950	1078~680	≤79
6A	5.5	380	720	9178~14982	753~558	693~389	≤73
6.5A	15	380	960	13024~21500	1595~1120	1488~850	≤80
6.5A	7.5	380	720	9768~17858	898~672	842~469	≤75
7A	11	380	720	13609~23912	1128~1114	1020~783	≤75

XBF-C Type Series

Model(No)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Static pressure(Pa)	Noise dB(A)
4C	4	380	1250	4743~7900	975~998	879~765	≤78
4C	5.5	380	1350	5123~9482	1137~1142	1025~756	≤80
4C	7.5	380	1450	5502~11163	1312~1278	1183~743	≤82
4.5C	4	380	950	4508~10504	777~732	727~505	≤76
4.5C	5.5	380	1100	5314~10315	1029~1038	963~787	≤80
5C	3	380	750	4411~10216	528~505	499~346	≤73
5C	4	380	860	5058~11714	694~663	655~455	≤76
5C	5.5	380	970	5705~12321	883~886	834~656	≤79
5C	7.5	380	1100	6469~13973	1136~1140	1073~884	≤79
5.6C	5.5	380	750	9011~16208	732~640	656~393	≤75
5.6C	7.5	380	930	10132~16043	1035~1083	962~863	≤80
5.6C	11	380	1100	8290~18168	1330~1562	1265~1252	≤84
6.3C	7.5	380	680	9470~19831	774~724	722~495	≤80
6.3C	11	380	780	10863~22748	1018~953	950~650	≤83
6.3C	11	380	880	12256~19864	1296~1297	1209~1066	≤86
6.3C	15	380	880	22364~25664	1250~1213	951~827	≤86
6.3C	15	380	930	12952~25056	1447~1385	1350~1018	≤87
6.3C	18.5	380	980	13649~25206	1608~1550	1499~1179	≤88
7.1C	11	380	600	14674~29508	828~942	725~523	≤80
7.1C	15	380	660	16141~32485	1002~1142	877~633	≤82
7.1C	15	380	700	9900~28320	903~1270	856~884	≤83
7.1C	18.5	380	700	31485~34426	1283~1285	806~713	≤83
8C	15	380	600	12004~33114	851~1208	803~842	≤80
8C	18.5	380	640	12805~35322	968~1375	914~958	≤84
8C	22	380	680	13605~37529	1093~1552	1032~1082	≤86

Dimensions

Installation Dimensions

Model(No)	Inlet Dimensions				Outlet Dimensions
	D1	D2	D3	n-d1	A1	Ny×y=A2	A3	B1	Nx×x=B2	B3	n-d2
2.8A	Ø280	Ø306	Ø322	8-Ø10	315	115×3=345	375	190	110×2=220	250	10-Ø8.5
3A	Ø300	Ø340	Ø355	8-Ø10.5	340	123×3=369	400	200	115×2=230	260	10-8.5×12.5
3.5A	Ø360	Ø394	Ø414	8-Ø10.5	380	102.5×4=410	440	230	87×3=261	290	14-8.5×12.5
4A	Ø400	Ø440	Ø460	8-Ø12	450	122.5×4=490	530	260	100×3=300	340	14-8.5×12.5
4.5A	Ø450	Ø490	Ø510	16-Ø12	500	135×4=540	580	290	110×3=330	370	14-8.5×12.5
5A	Ø500	Ø550	Ø570	16-Ø10	560	120×5=600	640	315	118.3×3=355	395	16-10.5×14.5
6A	Ø600	Ø650	Ø675	16-Ø12	672	119×6=714	752	340	127×3=381	420	18-10.5×14.5
6.5A	Ø560	Ø600	Ø650	12-Ø12	728	110×7=770	808	340	127×3=381	420	20-10.5×14.5
7A	Ø600	Ø650	Ø705	12-Ø12	784	118×7=826	864	340	127×3=381	420	20-10.5×14.5

Model(No)	Outline Dimensions							Mounting Dimensions
	E	F	G	H	C	L	L1	N	N1	N2	M	M1	n-d3	n-d4
2.8A	560	510	235	327	50	516	151	445	40	130	260	230	2-Ø10	14-Ø10
3A	610	520	231	363	50	585 (2.2kW) 555 (1.5kW) 525 (0.75kW)	154	480	50	150	256	225	2-10×14	14-10×15
3.5A	700	600	266	417	50	610 (3kW) 575 (1.1kW)	171	515	50	150	317	277	2-10×14	14-10×15
4A	810	700	316	485	70	670 (2.2/3kW) 720 (4/5.5kW)	197	624	60	200	372	332	2-14×18	14-13×15
4.5A	900	780	351	532	70	791	212	656	60	200	378	338	2-14×18	14-13×15
5A	1000	890	407	596	70	805 (5.5kW) 890 (7.5kW)	225	721	60	240	416	376	2-14×18	14-13×20
6A	1160	1080	508	671	70	945 (11kW) 910 (7.5/5.5kW)	238	807	80	260	438	398	2-14×18	14-13×20
6.5A	1275	1160	545	746	70	1020 (15kW) 960 (7.5kW)	247	867	70	340	468	428	2-14×18	14-13×20
7A	1355	1230	572	792	70	1000	228	867	70	340	468	428	2-17×21	14-13×20

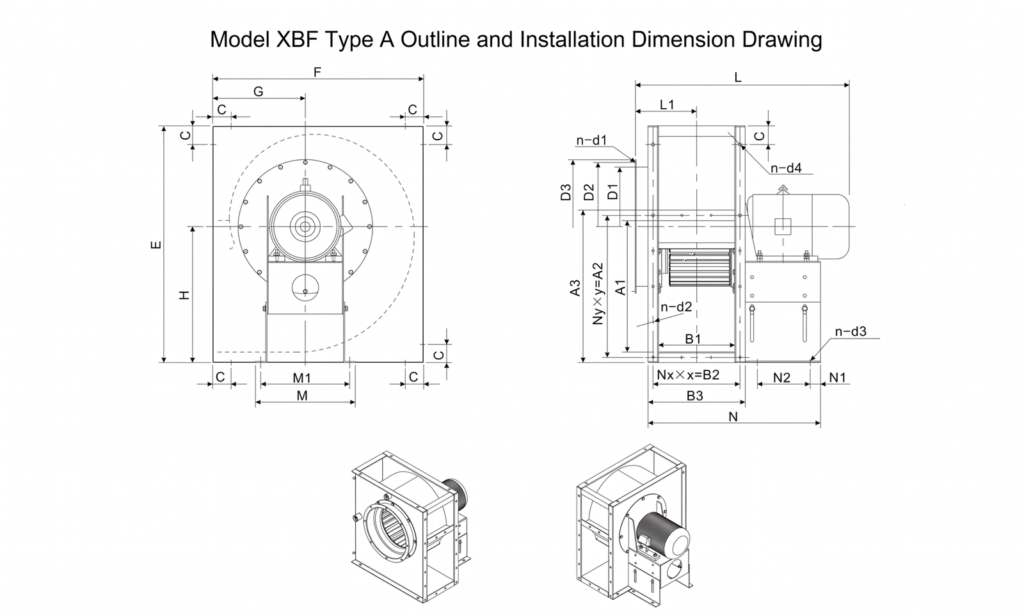

Technical Drawings

Outline and Installation Drawings
