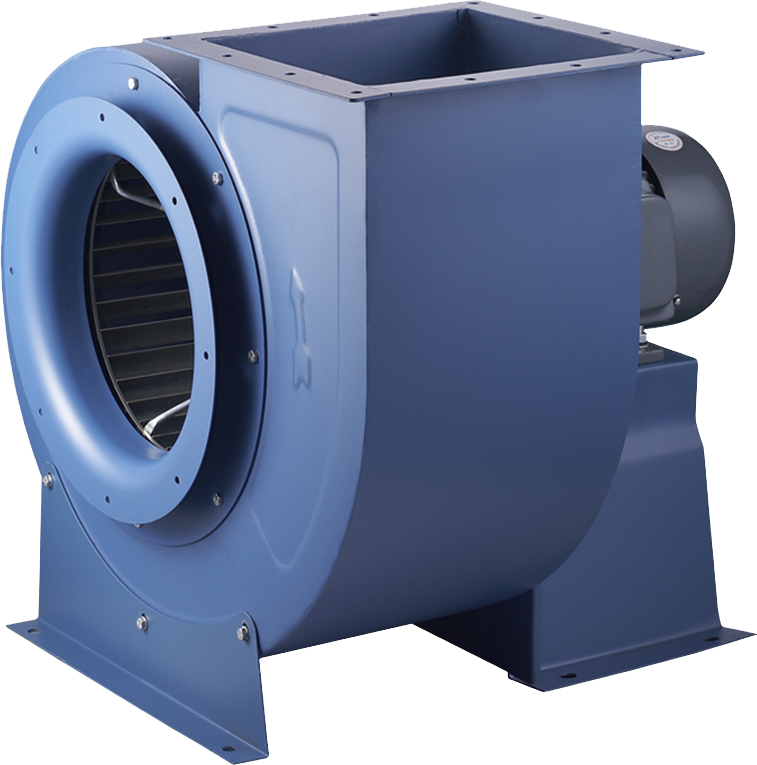

11-62(A) Multi-Wing Centrifugal Fan
Centrifugal Fan Series

11-62(A) Multi-Wing Centrifugal Fan

HDFAN 11-62(A) multi-wing centrifugal fan for hotels, restaurants, malls, basements, and general air-conditioning or ventilation systems. Confirm airflow, pressure, and installation requirements before selection.

Send Product ParametersBack to Product List
Product Overview

Designed for Industrial Ventilation Projects

11-62(A) Multi-Wing Centrifugal Fan

Product Overview

The 11-62(A) series is a low-noise multi-wing centrifugal fan for general ventilation and air-conditioning applications.

Suitable Applications

Typical uses include hotels, restaurants, malls, basements, and general air-conditioning or ventilation systems.

Selection Considerations

Confirm airflow, pressure, installation space, duct connection, and electrical supply against the selected model data.

Information Required for Selection

Please provide required airflow, pressure, application, installation arrangement, and power supply before selection.

Performance Data

Performance Table

Model(NP) Power(kW) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa)
2.65A 0.55 220/380 1400 1215~2413 428~368
2.8A 0.75 220/380 1400 1370~2760 480~345
3A 0.75 380 910 1408~2850 300~260
3A 1.5 220/380 1420 2150~4270 654~535
3.2A 2.2 220/380 1420 3714~6116 777~627
3.5A 1.1 380 910 3200~5080 438~367
3.5A 3 220/380 1420 5075~8065 1000~840
4A 2.2 380 960 4860~7807 684~586
4A 3 380 960 5742~8830 670~520
4A 4 380 1450 5353~9462 1050~920
4.5A 5.5 380 1450 6850~9681 1205~1053
4.5A 3 380 960 6175~9220 896~837
4.5A 4 380 960 7342~11120 880~837
4.5A 7.5 380 1450 7610~11765 1407~1177
5A 4 380 960 8127~10051 1167~1090
5A 5.5 380 960 8857~13021 1147~1018
6A 7.5 380 960 9820~16894 1200~990
6.5A 11 380 970 10800~21000 1270~1100
7A 11 380 730 12053~21330 1080~950
Dimensions

Installation Dimensions

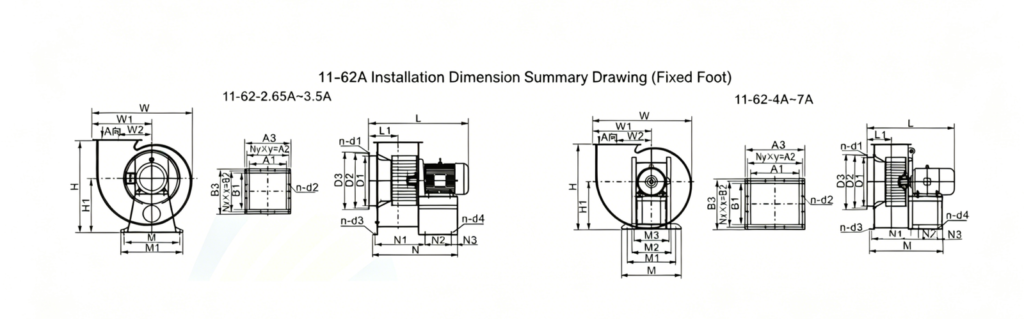

Type 11-62A Fixed Foot Dimensions

Model Power(kW) D1 D2 D3 n-d1 A1 Ny×y=A2 A3 B1 Nx×x=B2 B3 n-d2 H H1 W W1 W2 L L1 M M1 M2 M3 n-d3 N N1 N2 N3 n-d3* n-d4
2.65A 0.55 225 254 273 8-Ø7 200 75×3=225 250 200 75×3=225 250 12-Ø7 459 254 407 234 109 484 135 271 251 – – 2-Ø11 438 258 140 30 – 4-Ø11
2.8A 0.75 225 254 273 8-Ø7 240 90×3=270 300 240 90×3=270 300 12-Ø7 490 270 426 245 95 523 155 285 255 – – 2-Ø11 478 295 140 30 – 4-Ø11
3A 0.75 300 340 355 8-Ø10.5 252 96×3=288 322 250 96×3=288 320 12-Ø9 571 339 613 365 204 580 183 400 360 – – 2-12×16 537 312 170 40 4-12×16 4-Ø15
3A 1.5 300 340 355 8-Ø10.5 252 96×3=288 322 250 96×3=288 320 12-Ø9 571 339 613 365 204 605 183 400 360 – – 2-12×16 537 312 170 40 4-12×16 4-Ø15
3A 2.2 300 340 355 8-Ø10.5 252 96×3=288 322 250 96×3=288 320 12-Ø9 581 349 613 365 204 623 183 400 360 – – 2-12×16 537 312 170 40 4-12×16 4-Ø15
3.5A 1.1 360 394 414 8-Ø12 294 110×3=330 364 270 102×3=306 340 12-Ø9 610 339 708 421 239 617 192 400 360 – – 2-12×16 558 333 170 40 4-12×16 4-Ø15
3.5A 2.2 360 394 414 8-Ø12 294 110×3=330 364 270 102×3=306 340 12-Ø9 610 339 708 421 239 617 192 400 360 – – 2-12×16 558 333 170 40 4-12×16 4-Ø15
3.5A 3 360 394 414 8-Ø12 294 110×3=330 364 270 102×3=306 340 12-Ø9 620 349 708 421 239 651 192 400 360 – – 2-12×16 558 333 170 40 4-12×16 4-Ø15
4A 2.2 400 440 460 8-Ø12 340 128×3=384 420 300 115×3=345 380 12-Ø10 701 390 810 481 271 712 217 500 400 342 292 4-12.5×25 637 357 150 40 4-12.5×25 4-12.5×25
4A 3.0 400 440 460 8-Ø12 340 128×3=384 420 300 115×3=345 380 12-Ø10 701 390 810 481 271 760 217 500 400 352 312 4-12.5×25 677 357 190 40 4-12.5×25 4-12.5×25
4.5A 3.0 450 490 510 16-Ø12 382 83×5=415 442 310 86×4=344 370 18-Ø9 799 450 913 537 316 770 222 550 450 352 312 4-12.5×25 685 365 190 40 4-12.5×25 4-12.5×25
4.5A 4 450 490 510 16-Ø12 382 83×5=415 442 310 86×4=344 370 18-Ø9 799 450 913 537 316 808 222 550 450 352 312 4-12.5×25 685 365 190 40 4-12.5×25 4-12.5×25
5A 4 500 550 570 16-Ø12 433 118×4=472 513 330 94×4=376 410 16-Ø10.5 814 460 945 556 300 822 233 600 500 352 312 4-12.5×25 706 388 190 40 4-12.5×25 4-12.5×25
5A 5.5 500 550 570 16-Ø12 433 118×4=472 513 330 94×4=376 410 16-Ø10.5 814 460 945 556 300 822 233 600 500 352 312 4-12.5×25 706 388 190 40 4-12.5×25 4-12.5×25
6A 7.5 600 650 675 16-Ø12 454 100×5=500 534 360 100×4=400 440 18-Ø10.5 976 520 1072 628 376 925 248 700 600 490 440 4-12.5×25 876 417 310 50 4-12.5×25 4-12.5×25
6.5A 11 570 600 650 12-Ø12 500 110×5=550 590 360 102×4=408 450 18-Ø10 1061 570 1179 693 399 975 257 700 580 490 440 4-12.5×25 889 432 300 50 4-12.5×25 4-12.5×25
7A 11 600 650 705 12-Ø12 540 118×5=590 640 390 110×4=440 490 18-Ø10 1144 605 1264 748 428 1051 253 800 680 514 454 4-12.5×25 959 462 320 60 4-12.5×25 4-12.5×25

Type 11-62A Adjustable & Detachable Foot Dimensions

Model Power(kW) D1 D2 D3 n-d1 A1 Ny×y=A2 A3 B1 Nx×x=B2 B3 n-d2 H H1 W W1 W2 L L1 M M1 n-d3 N N1 N2
3A 0.75 300 340 355 8-Ø10.5 252 96×3=288 322 250 96×3=288 320 12-Ø9 622 390 613 365 204 580 183 262 222 4-12.5×25 485 405 40
3A 1.5 300 340 355 8-Ø10.5 252 96×3=288 322 250 96×3=288 320 12-Ø9 622 390 613 365 204 605 183 262 222 4-12.5×25 485 405 40
3A 2.2 300 340 355 8-Ø10.5 252 96×3=288 322 250 96×3=288 320 12-Ø9 622 390 613 365 204 628 183 282 242 4-12.5×25 540 460 40
3.2A 2.2 320 350 365 8-Ø12 265 100×3=300 325 260 97×3=291 320 12-Ø9 657 410 643 381 218 640 189 282 242 4-12.5×25 550 470 40
3.5A 1.1 360 394 414 8-Ø10 294 110×3=330 364 270 102×3=306 340 12-Ø9 716 445 708 421 239 621 192 262 222 4-12.5×25 505 425 40
3.5A 2.2 360 394 414 8-Ø10 294 110×3=330 364 270 102×3=306 340 12-Ø9 716 445 708 421 239 662 192 282 242 4-12.5×25 560 480 40
3.5A 3 360 394 414 8-Ø10 294 110×3=330 364 270 102×3=306 340 12-Ø9 716 445 708 421 239 662 192 282 242 4-12.5×25 560 480 40
4A 2.2 400 440 460 8-Ø12 340 128×3=384 420 300 115×3=345 380 12-Ø10 821 510 810 481 271 713 217 342 292 4-12.5×25 590 490 50
4A 3 400 440 460 8-Ø12 340 128×3=384 420 300 115×3=345 380 12-Ø10 821 510 810 481 271 713 217 342 292 4-12.5×25 590 490 50
4A 4 400 440 460 8-Ø12 340 128×3=384 420 300 115×3=345 380 12-Ø10 821 510 810 481 271 760 217 372 322 4-12.5×25 630 530 50
4A 5.5 400 440 460 8-Ø12 340 128×3=384 420 300 115×3=345 380 12-Ø10 821 510 810 481 271 760 217 372 322 4-12.5×25 630 530 50
4.5A 3.0 450 490 510 16-Ø12 382 83×5=415 442 310 86×4=344 370 18-Ø9 924 575 913 537 316 770 222 372 322 4-12.5×25 640 540 50
4.5A 4 450 490 510 16-Ø12 382 83×5=415 442 310 86×4=344 370 18-Ø9 924 575 913 537 316 810 222 372 322 4-12.5×25 640 540 50
5A 4 500 550 570 16-Ø12 433 118×4=472 513 330 94×4=376 410 16-Ø10.5 944 590 945 556 300 828 232 372 322 4-12.5×25 660 560 50
5A 5.5 500 550 570 16-Ø12 433 118×4=472 513 330 94×4=376 410 16-Ø10.5 944 590 945 556 300 828 232 372 322 4-12.5×25 660 560 50
6A 7.5 600 650 675 16-Ø12 454 100×5=500 534 360 100×4=400 440 18-Ø10.5 1121 665 1072 628 361 925 248 510 450 4-12.5×25 830 710 60
6.5A 11 560 600 650 12-Ø12 500 110×5=550 590 360 102×4=408 450 18-Ø10 1230 730 1179 693 399 975 257 510 450 4-12.5×25 830 710 60
7A 11 600 650 705 12-Ø12 540 118×5=590 640 390 110×4=440 490 18-Ø10 1314 775 1264 748 428 1051 253 530 470 4-12.5×25 900 780 60



Technical Drawings

Outline and Installation Drawings

Technical drawingTechnical drawing
Product Catalog

Product Details PDF

Review the complete industrial fan catalog for series information, model references, and selection preparation.

Open Product PDF
Explore More

Related Products

Compare other products in this series and send the model or parameters that best fit your project.

View Product List
