Air Purification & General Ventilation

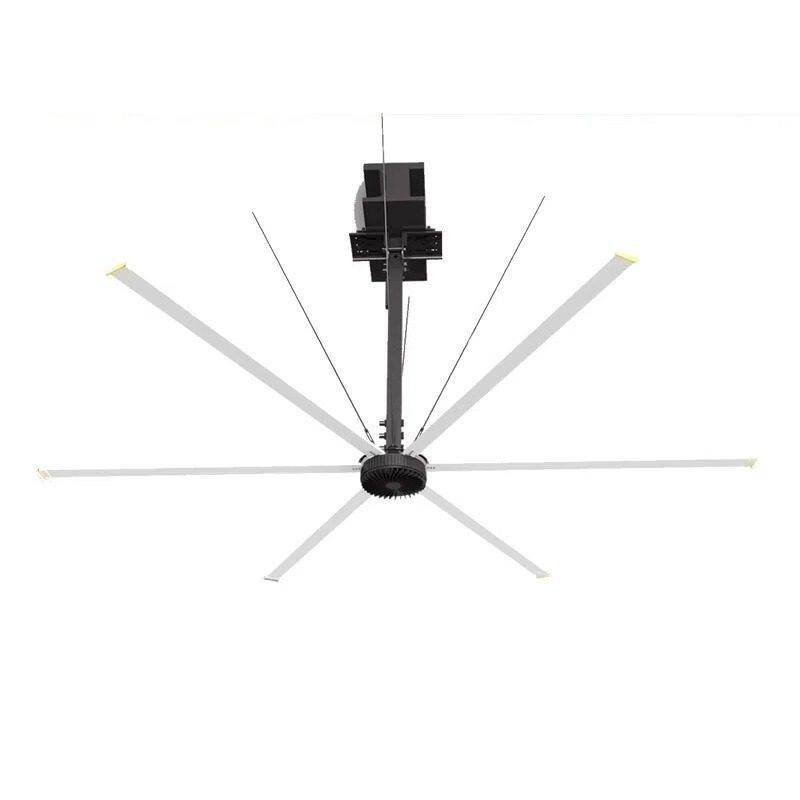

DFS series Large industrial ceiling fans
HDFAN DFS Industrial Ceiling Fan is designed for industrial and building ventilation projects. Large industrial ceiling fan for broad-area air circulation in factories Select the final model against required airflow, static pressure, installation arrangement and power supply. Confirm the operating medium and site conditions before ordering.
Product Overview
Designed for Industrial Ventilation Projects
DFS Industrial Ceiling Fan
Product Overview
Large industrial ceiling fan for broad-area air circulation in factories
Core Characteristics
This series is positioned as a dfs industrial ceiling fan for the applications stated in the product catalogue. Available performance and construction details vary by model.
Suitable Applications
Large industrial ceiling fan for broad-area air circulation in factories
Operating Conditions
Use the fan only within the medium, installation and operating limits specified for the selected catalogue model. Confirm any temperature, dust loading, corrosive gas, explosive-atmosphere, drive and mounting requirements before order.
Information Required for Selection
Please provide required airflow, static pressure, air medium, operating temperature, installation arrangement, power supply and applicable site restrictions. HDFAN can then confirm the suitable series and model data.
Performance Table
| Model(Nº) | Power(kW) | Voltage(V) | Maximum speed(RPM) | Volume(m³/min) | Diameter of fan blade(mm) | Number of fan blades(pcs) | Applicable area(m²) |
|---|---|---|---|---|---|---|---|
| DFS-2.3A | 0.25 | 220/380 | 110 | 4280 | 2300 | 5 | 165 |
| DFS-3.3A | 0.45 | 220/380 | 100 | 5920 | 3300 | 5 | 260 |
| DFS-4.3A | 0.55 | 220/380 | 90 | 7430 | 4300 | 5 | 310 |
| DFS-5.3A | 0.75 | 220/380 | 75 | 11400 | 5300 | 5 | 620 |
| DFS-6.3A | 1.1 | 220/380 | 60 | 13900 | 6300 | 6 | 760 |
| DFS-7.3A | 1.5 | 220/380 | 55 | 15300 | 7300 | 6 | 860 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
