Medium Pressure Fan Series

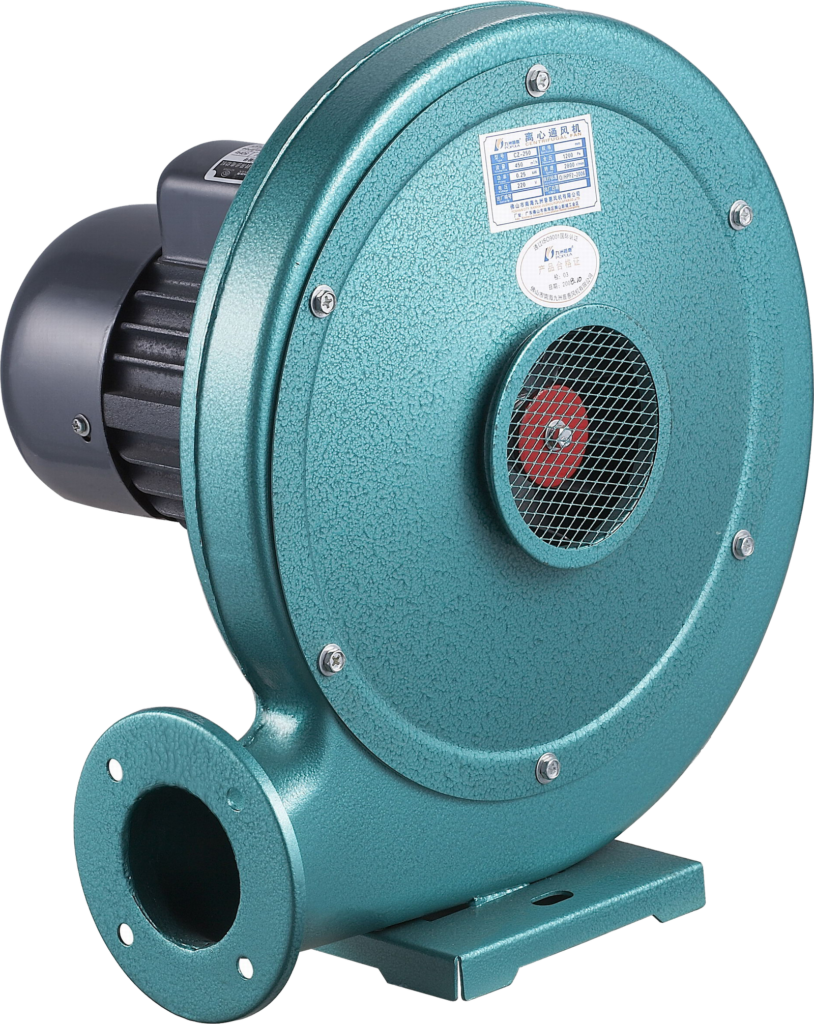

CZ middle pressure centrifugal fan

Name: CZ middle pressure centrifugal fan | HDFAN
SKU: HSD-110

The CZ Middle Pressure Centrifugal Fan is a centrifugal fan developed for medium-pressure industrial ventilation duties. It is a practical choice for B2B buyers, contractors, and equipment manufacturers seeking a project-oriented fan solution.

Send Product Parameters Back to Product List

Product Overview

Designed for Industrial Ventilation Projects

CZ Middle Pressure Centrifugal Fan

Key Features

Centrifugal configuration for medium-pressure applications
Designed for ducted air movement
Suitable for project-based ventilation system integration

Applications

Industrial ventilation
Equipment exhaust systems
Process air-handling projects

Project Support

Product selection, configuration review, production coordination, and export delivery can be supported according to the application and installation requirements provided by the customer.

Selection Notes

Information Needed for Model Confirmation

Required airflow and pressure, or plant area and air-change target.
Working temperature, dust, smoke, oil fume, humidity, or corrosion conditions.
Installation method, duct length, power supply, and noise requirements.

How to Read Key Parameters

Airflow: Shows the volume of air moved. Confirm the required ventilation rate or process air demand.
Static Pressure: Allow for ducts, elbows, filters, outlets, and other system resistance.
Motor Power: Depends on the final duty point and efficiency; it should not be selected by power alone.
Voltage & Frequency: State the local supply, such as 380V / 50Hz / 3Ph, before confirming the motor.
Medium & Installation: Temperature, dust, moisture, corrosion, orientation, and mounting affect construction and configuration.

Performance Data

Performance Table

CZ Series

Model(Nº)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)
180W	0.18	220/380	2800	107~362	939~743
250W	0.25	220/380	2800	174~389	943~679
370W	0.37	220/380	2800	351~629	1696~1373
550W	0.55	220/380	2800	201~650	1746~1295
750W	0.75	0.75	2800	413~969	1790~1173
900W	0.9	220/380	2800	742~1045	1820~1584

CZY Series

Model(Nº)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)
CZY-180	0.18	220/380	2800	115~390	940~721
CZY-250	0.25	220/380	2800	165~410	1044~743
CZY-370	0.37	220/380	2800	342~630	1748~1295
CZY-550	0.55	220/380	2800	580~860	1910~1287
CZY-750	0.75	220/380	2800	685~1170	2080~1760
CZY-900	0.9	220/380	2800	821~1320	2140~1967
CZY-1100	1.1	220/380	2800	742~1404	2180~1870
CZY-I-1500	1.5	220	2900	870~1750	2210~1475
CZY-I-1500	1.5	380	2900	870~1750	2210~1475
CZY-II-1500	1.5	220	2900	870~1750	2210~1475
CZY-II-1500	1.5	380	2900	870~1750	2210~1475
CZY-I-2200	2.2	220	2900	1020~1790	2330~1580
CZY-I-2200	2.2	380	2900	1020~1790	2330~1580
CZY-II-2200	2.2	220	2900	1020~1790	2330~1580
CZY-II-2200	2.2	380	2900	1020~1790	2330~1580
CZY-I-3000	3	380	2900	1500~2480	2830~1995
CZY-II-3000	3	380	2900	1500~2480	2830~1995
CZY-I-4000	4	380	2900	1600~3028	3545~2995
CZY-II-4000	4	380	2900	1600~3028	3545~2995

Dimensions

Installation Dimensions

CZY Type Medium Pressure Ventilator Dimension Chart

Dimension	CZY-180	CZY-250	CZY-370	CZY-550	CZY-750	CZY-900	CZY-1100
L1	267.5	282.5	286	306	342 (Single-phase)/322 (Three-phase)	342	342
L2	56.5	56.5	71	71	81	81	81
L3	79	79	116	116	132	132	132
L4	90	90	135	135	152	152	152
L5	15	15	20	20	20	20	20
L6	135	135	185	185	220	220	220
L7	162	162	205	205	225	225	225
L8	350	350	440	440	470	470	470
H1	130	130	162	162	160	160	160
H2	185	185	232	232	240	240	240
H3	368	368	457	457	475	475	475
H4	115	115	170	170	182	182	182
H5	70	70	115	115	131	131	131
H6	12	12	12	12	12	12	12
H7	--	--	115	115	131	131	131
D1	Ø10	Ø10	Ø10	Ø10	Ø12	Ø12	Ø12
D2	Ø110	Ø110	Ø130	Ø130	Ø150	150	150
D3	Ø93	Ø93	Ø110	Ø110	Ø125	125	125
D4	Ø65	Ø65	Ø75	Ø75	Ø95	95	95
D5	Ø55	Ø55	Ø65	Ø65	Ø85	85	85
D6	Ø100	Ø100	Ø110	Ø110	Ø130	130	130
R	R5	R5	R5	R5	R6	R6	R6
A×B	20×10	20×10	20×10	20×10	24×12	24×12	24×12

CZY-I Type Medium Pressure Ventilator Dimension Chart

Dimension	CZY-I-1500	CZY-I-2200	CZY-I-3000	CZY-I-4000
L1	443	478	515	520
L2	172	172	175	175
L3	145	145	159	159
L4	60	60	64	64
L5	232	232	252	252
L6	117.5	117.5	120	120
L7	60	60	63	63
L8	565	565	596	596
L9	276	276	280	280
L10	191	191	201	201
L11	30	30	28	28
H1	548	548	573	573
H2	300	300	308	308
H3	95	95	108	108
H4	235	235	240	240
H5	135	135	170	170
H6	162	162	170	170
H7	18	18	20	20
D1	Ø130	Ø130	Ø150	Ø150
D2	Ø136	Ø136	Ø160	Ø160
D3	Ø115	Ø115	Ø130	Ø130
D4	Ø121	Ø121	Ø136	Ø136
D5	Ø180	Ø180	Ø190	Ø190
D6	Ø13	Ø13	--	--
A×B	--	--	20×40	20×40

CZY-11 Type Medium Pressure Ventilator Dimension Chart

Dimension	CZY-II-1500	CZY-II-2200	CZY-II-3000	CZY-II-4000
L1	510	545	598	603
L2	172	172	175	175
L3	216	216	242	242
L4	131	131	147	147
L5	105	105	119	119
L6	232	232	252	252
L7	117.5	117.5	120	120
L8	60	60	63	63
L9	565	565	596	596
L10	276	276	280	280
L11	191	191	201	201
L12	30	30	28	28
H1	548	548	573	573
H2	300	300	308	308
H3	95	95	108	108
H4	235	235	240	240
H5	135	135	170	170
H6	162	162	170	170
H7	18	18	20	20
D1	Ø120	Ø120	Ø150	Ø150
D2	Ø115	Ø115	Ø130	Ø130
D3	Ø121	Ø121	Ø136	Ø136
D4	Ø180	Ø180	Ø190	Ø190
D5	Ø13	Ø13	--	--
A×B	--	--	20×40	20×40

Technical Drawings

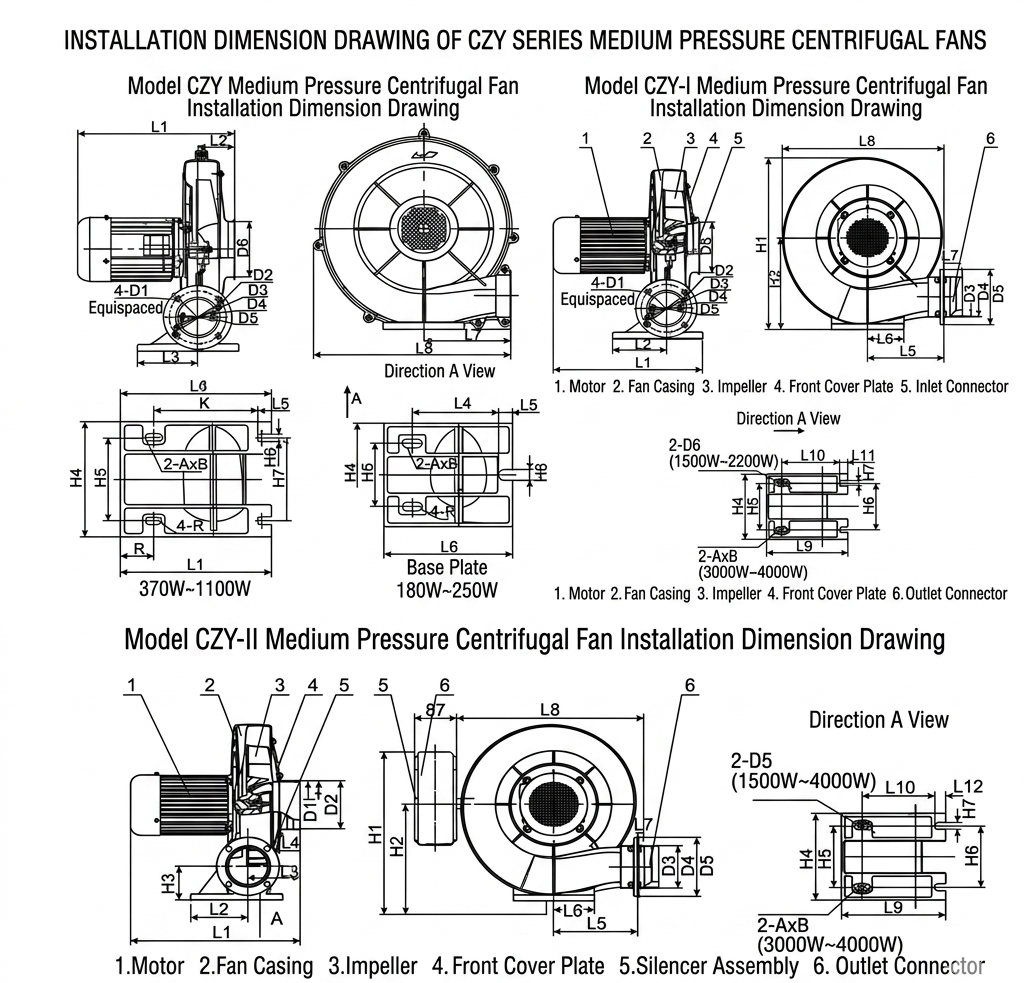

Outline and Installation Drawings

Product Catalog

Product Details PDF

Review the complete industrial fan catalog for series information, model references, and selection preparation.

Open Product PDF
