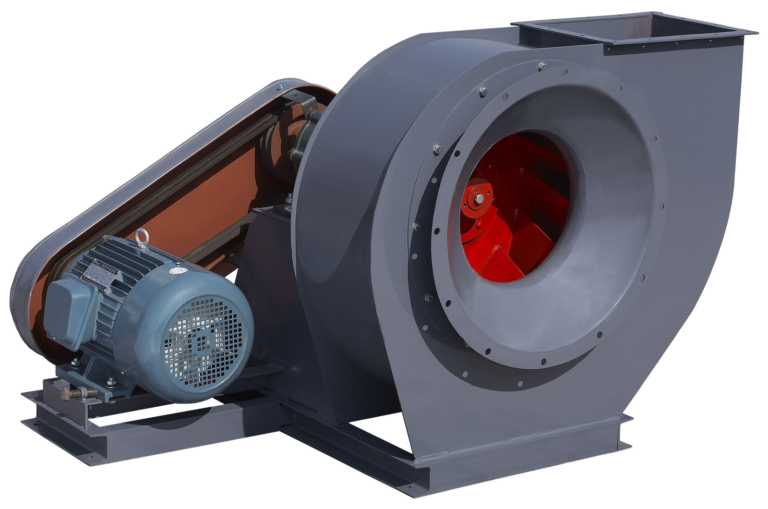

Y5-47 Boiler Centrifugal Fan
HDFAN Y5-47 Boiler Centrifugal Fan is designed for industrial and building ventilation projects. Boiler-induced-draft centrifugal fan for industrial...
View Details
High-Temperature & Boiler Fans
WCF Small-Size Boiler Fan
HDFAN WCF Small Size Boiler Fan is designed for industrial and building ventilation projects. Small boiler fan for heating furnaces Select the final model against required airflow, static pressure, installation arrangement and power supply. Confirm the operating medium and site conditions before ordering.
Product Overview
Designed for Industrial Ventilation Projects

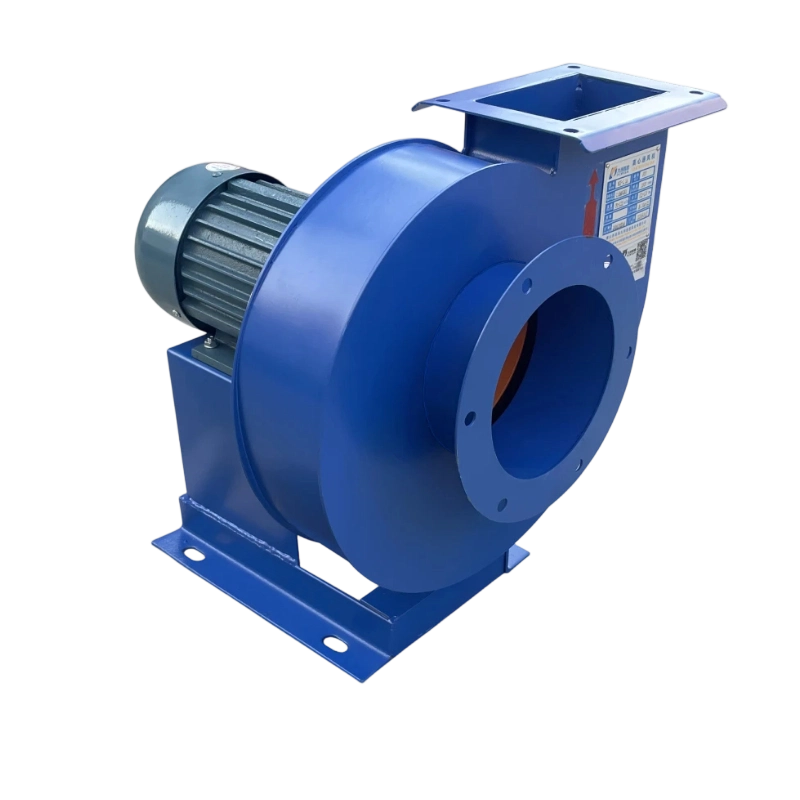

WCF Small Size Boiler Fan
Product Overview
Small boiler fan for heating furnaces
Core Characteristics
This series is positioned as a wcf small size boiler fan for the applications stated in the product catalogue. Available performance and construction details vary by model.
Suitable Applications
Small boiler fan for heating furnaces
Operating Conditions
Use the fan only within the medium, installation and operating limits specified for the selected catalogue model. Confirm any temperature, dust loading, corrosive gas, explosive-atmosphere, drive and mounting requirements before order.
Information Required for Selection
Please provide required airflow, static pressure, air medium, operating temperature, installation arrangement, power supply and applicable site restrictions. HDFAN can then confirm the suitable series and model data.
Performance Table
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|---|
| 2.0A | 0.25 | 220/380 | 2800 | 330~736 | 673~497 |
| 2.5A | 0.55 | 220/380 | 2800 | 391~1210 | 922~578 |
| 2.8A | 1.1 | 220/380 | 2800 | 660~2054 | 1330~791 |
| 3.2A | 2.2 | 220/380 | 2800 | 1623~3038 | 1920~1205 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
High-Temperature & Boiler Fans

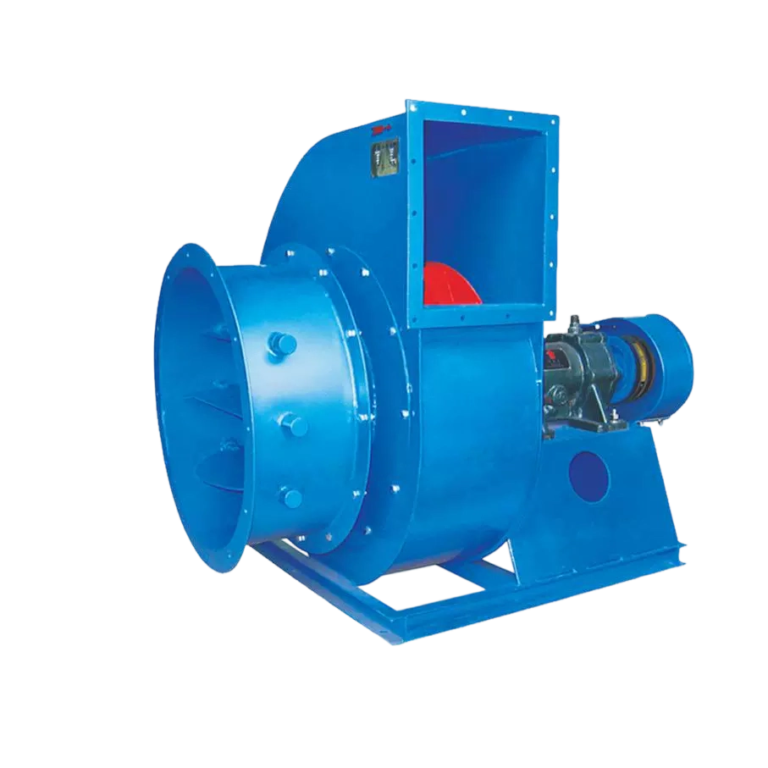

Y5-48 Boiler Centrifugal Fan (C Type)
HDFAN Y5-48 Boiler Centrifugal Fan is designed for industrial and building ventilation projects. Boiler-induced-draft centrifugal fan for industrial...
View Details
High-Temperature & Boiler Fans

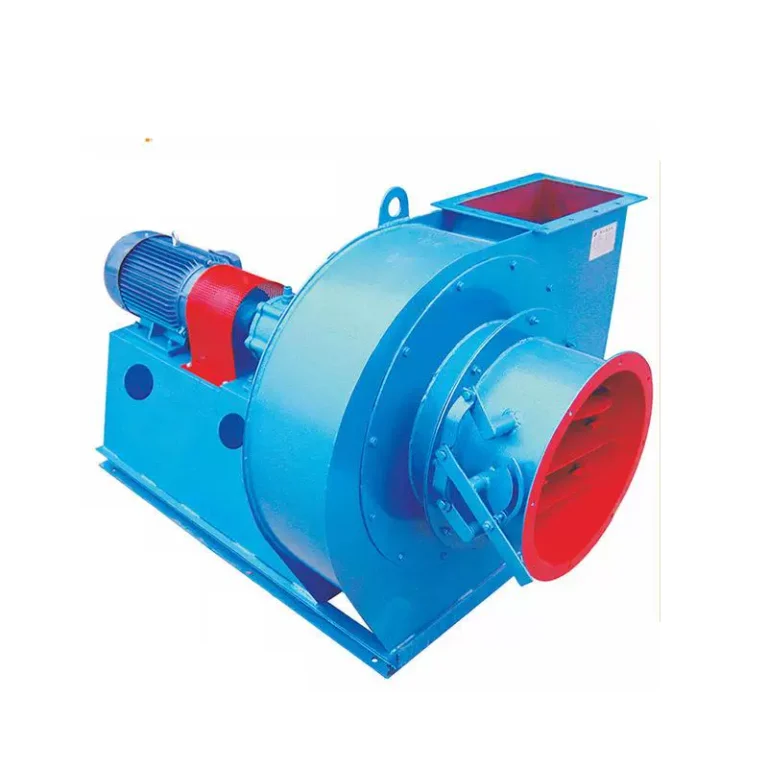

Y9-35 Boiler Centrifugal Fan (D Type)
