Centrifugal Fan Series

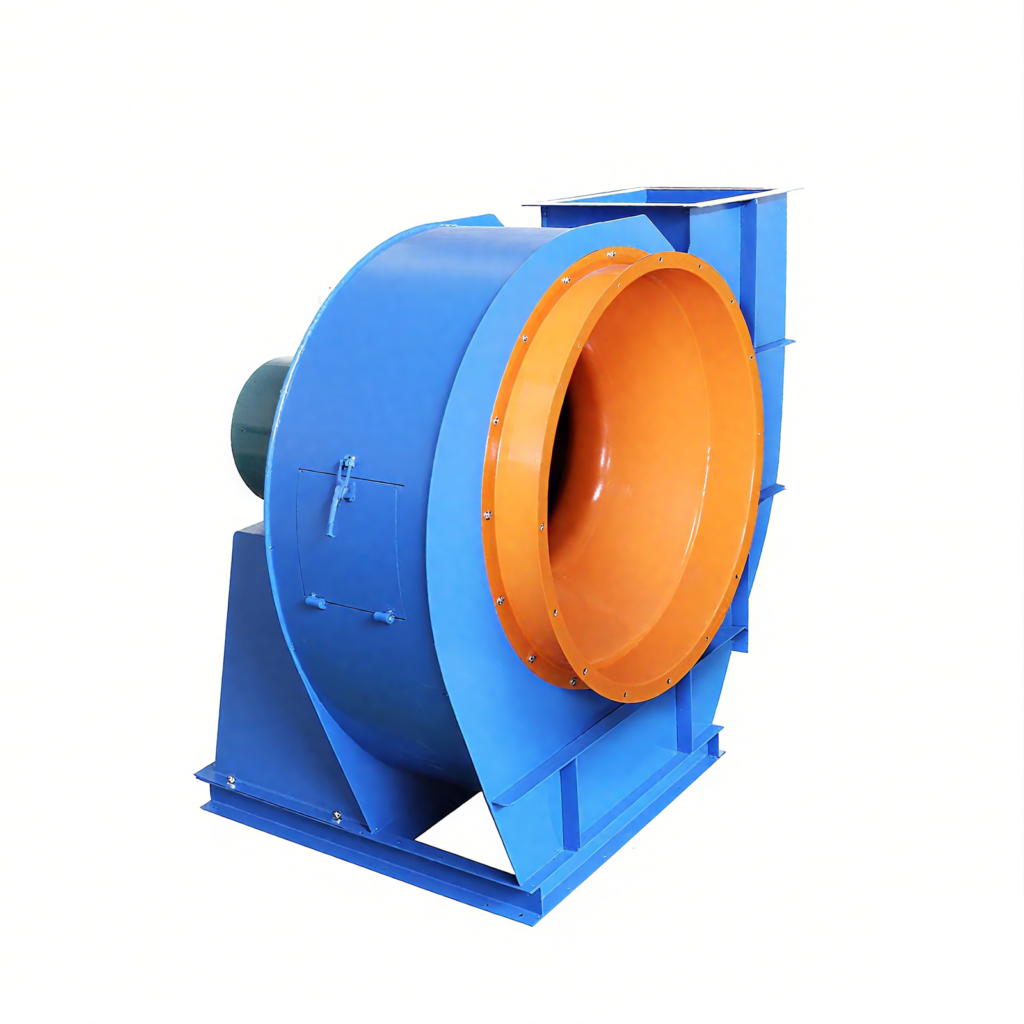

5-53 (A type) Centrifugal fan
HDFAN 5-53 Type-A centrifugal fan for environmental dust-control equipment and boiler service. Confirm dust-containing gas conditions and all operating limits against the selected catalogue model before selection.
Product Overview
Designed for Industrial Ventilation Projects
5-53 Type-A Centrifugal Fan
Product Overview
The 5-53 Type-A series is a centrifugal fan for environmental dust-control equipment and boiler-related service.
Suitable Applications
It can be considered for dust-control systems and boiler-support installations where the selected model matches the required duty.
Operating Conditions
The catalogue includes limits for dust-containing gas and operating conditions. Confirm the actual medium, dust condition, temperature, airflow, pressure, and installation arrangement before order.
Information Required for Selection
Please provide airflow, pressure, gas medium, dust condition, operating temperature, installation arrangement, and power supply.
Performance Table
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 5A | 11 | 2930 | 5706~8519 | 3856~3277 |
| 5.4A | 15 | 2930 | 7189~10731 | 4498~3729 |
| 5.6A | 18.5 | 2930 | 8017~11932 | 4837~4110 |
| 5.8A | 22 | 2940 | 8907~13205 | 5189~4409 |
| 6A | 30 | 2950 | 9861~14710 | 5553~4719 |
| 6.8A | 45 | 2960 | 14355~21379 | 7133~5969 |
| 8A | 15 | 1460 | 11670~17286 | 2434~2068 |
| 8.8A | 22 | 1470 | 15663~23327 | 3025~2572 |
| 9.3A | 30 | 1480 | 18600~27700 | 3475~2952 |
| 10A | 45 | 1480 | 23300~34700 | 4018~3414 |
| 10.5A | 55 | 1480 | 26972~40263 | 4429~3764 |
| 11.2A | 75 | 1480 | 32750~48864 | 5040~4282 |
| 12A | 110 | 1480 | 40281~59962 | 5786~4916 |
| 12.5A | 132 | 1480 | 45529~67773 | 6278~5334 |
| 13.2A | 55 | 980 | 35520~52846 | 3069~2608 |
| 14A | 75 | 980 | 42350~63049 | 3454~2934 |
| 15A | 110 | 980 | 52095~77547 | 3963~3368 |
| 16A | 132 | 980 | 63250~94332 | 4510~3823 |
Outline and Installation Drawings
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
Centrifugal Fan Series
11-62(A) Multi-Wing Centrifugal Fan
HDFAN 11-62(A) multi-wing centrifugal fan for hotels, restaurants, malls, basements, and general air-conditioning or ventilation systems. Confirm airflow,...
View Details
Centrifugal Fan Series

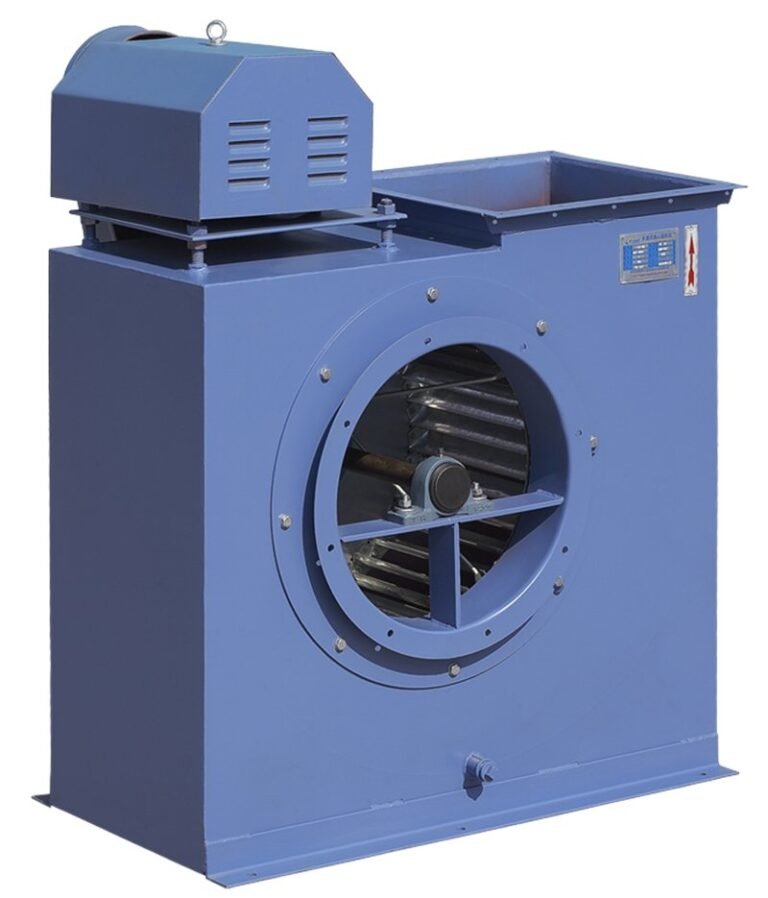

11-62(E) Multi-Wing Centrifugal Fan
