High-Temperature & Boiler Fans

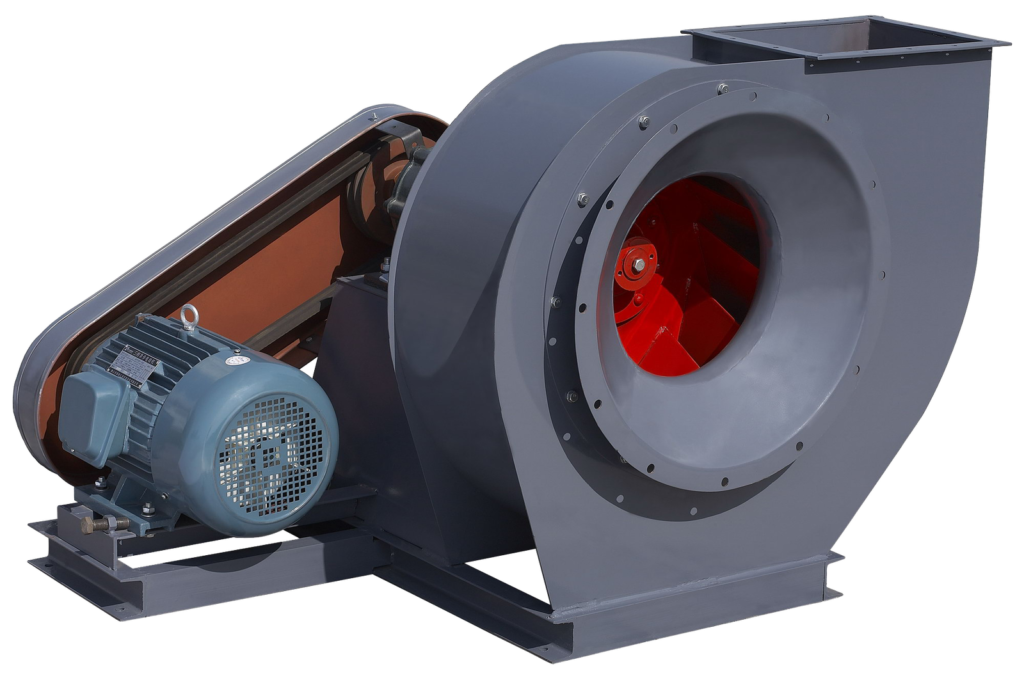

Y5-47 Boiler Centrifugal Fan
HDFAN Y5-47 Boiler Centrifugal Fan is designed for industrial and building ventilation projects. Boiler-induced-draft centrifugal fan for industrial and civil boiler systems. Select the final model against required airflow, static pressure, installation arrangement and power supply. Confirm the operating medium and site conditions before ordering.
Product Overview
Designed for Industrial Ventilation Projects
Y5-47 Boiler Centrifugal Fan
Product Overview
Boiler-induced-draft centrifugal fan for industrial and civil boiler systems.
Core Characteristics
This series is positioned as a y5-47 boiler centrifugal fan for the applications stated in the product catalogue. Available performance and construction details vary by model.
Suitable Applications
Boiler-induced-draft centrifugal fan for industrial and civil boiler systems.
Operating Conditions
Use the fan only within the medium, installation and operating limits specified for the selected catalogue model. Confirm any temperature, dust loading, corrosive gas, explosive-atmosphere, drive and mounting requirements before order.
Information Required for Selection
Please provide required airflow, static pressure, air medium, operating temperature, installation arrangement, power supply and applicable site restrictions. HDFAN can then confirm the suitable series and model data.
Performance Table
A series
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 3.15A | 1.5 | 2800 | 1140~2150 | 865~590 |
| 4A | 3 | 2900 | 2417~4561 | 1481~1079 |
| 5A | 7.5 | 2900 | 4723~8909 | 2324~1687 |
| 5.6A | 15 | 2930 | 6634~12515 | 2926~2120 |
| 6A | 3 | 1450 | 4080~7697 | 876~638 |
| 6A | 22 | 2930 | 8245~15553 | 3575~2606 |
| 7A | 5.5 | 1450 | 6479~12223 | 1192~869 |
| 7A | 37 | 2950 | 12959~24445 | 4767~3475 |
| 8A | 11 | 1450 | 9672~18245 | 1557~1135 |
| 9A | 18.5 | 1480 | 14056~26515 | 2053~1496 |
| 10A | 37 | 1480 | 19281~31551 | 2697~2246 |
| 11A | 18.5 | 970 | 16647~31401 | 1290~940 |
| 11A | 55 | 1480 | 25663~48410 | 3050~2216 |
| 12A | 30 | 980 | 21612~40767 | 1535~1119 |
| 12A | 90 | 1480 | 33318~62850 | 3649~2638 |
| 12.4A | 30 | 980 | 23846~44982 | 1639~1195 |
| 12.4A | 110 | 1480 | 36762~69347 | 3874~2824 |
| 13A | 37 | 980 | 27477~51832 | 1802~1313 |
| 13A | 110 | 1480 | 42361~79908 | 4283~3121 |
| 14A | 45 | 980 | 34283~64671 | 2083~1519 |
| 14A | 160 | 1480 | 51783~97680 | 4753~3466 |
| 15A | 30 | 730 | 32065~60485 | 1383~1008 |
| 15A | 75 | 990 | 42167~79542 | 2392~1744 |
| 16A | 37 | 740 | 38915~73407 | 1573~1147 |
| 16A | 90 | 990 | 51175~96535 | 2721~1984 |
C series
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 3.15C | 1.5 | 3250 | 1323~2496 | 1049~716 |
| 3.15C | 1.5 | 2990 | 1218~2297 | 883~608 |
| 3.15C | 1.5 | 2750 | 1120~2112 | 745~520 |
| 4C | 4 | 3300 | 2751~5190 | 1922~1393 |
| 4C | 3 | 2900 | 2417~4561 | 1481~1079 |
| 5C | 7.5 | 2900 | 4723~8909 | 2324~1687 |
| 5C | 5.5 | 2620 | 4267~8048 | 1893~1373 |
| 6C | 18.5 | 2850 | 8020~15129 | 3364~2452 |
| 6C | 15 | 2620 | 7372~13908 | 2844~2069 |
| 7C | 30 | 2580 | 11529~21747 | 3756~2746 |
| 7C | 22 | 2320 | 10367~19556 | 3040~2206 |
| 7C | 18.5 | 2200 | 9830~18545 | 2736~1991 |
| 7C | 15 | 2050 | 9159~17280 | 2373~1716 |
| 8C | 30 | 2020 | 13474~25417 | 3001~2187 |
| 8C | 22 | 1860 | 12407~23404 | 2550~1853 |
| 9C | 45 | 1900 | 18045~34039 | 3364~2452 |
| 9C | 37 | 1800 | 17095~32247 | 3020~2197 |
D series
| Model(Nº) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
|---|---|---|---|---|
| 4D | 3 | 2870 | 2393~4514 | 1451~1059 |
| 5D | 7.5 | 2900 | 4723~8909 | 2324~1687 |
| 6D | 18.5 | 2930 | 8245~13492 | 3550~3168 |
| 6D | 22 | 2930 | 14523~15553 | 2903~2589 |
| 10D | 37 | 1480 | 19281~31551 | 2697~2246 |
| 11D | 55 | 1480 | 25663~48410 | 3050~2216 |
| 12D | 90 | 1480 | 54520~62850 | 3236~2638 |
| 12.4D | 110 | 1480 | 36762~69347 | 3874~2824 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
High-Temperature & Boiler Fans
Y9-35 Boiler Centrifugal Fan (D Type)
HDFAN Y9-35 Boiler Centrifugal Fan is designed for industrial and building ventilation projects. Boiler-induced-draft centrifugal fan for coal-fired...
View Details
High-Temperature & Boiler Fans

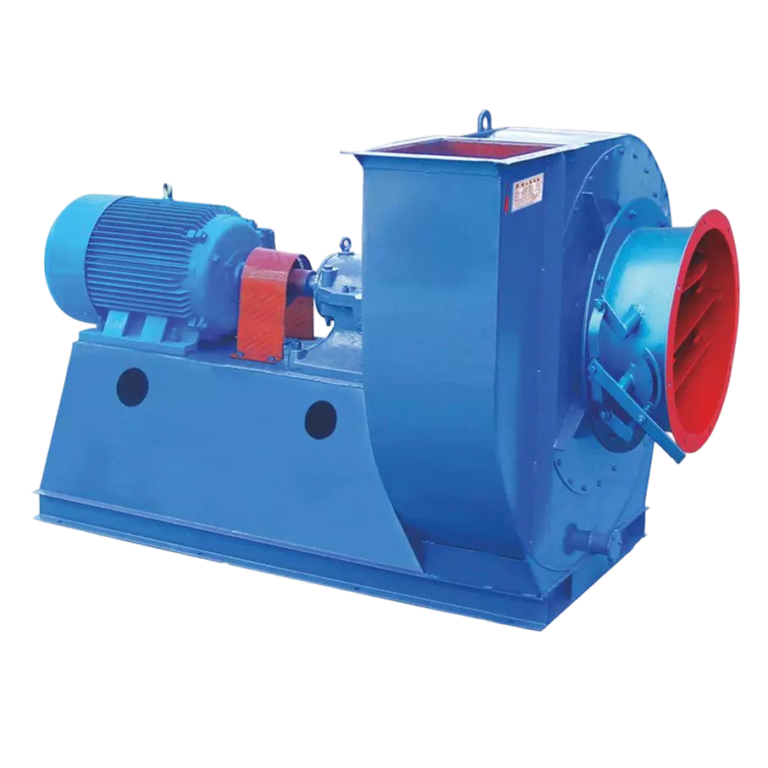

Y8-39 Boiler Centrifugal Fan (D Type)
