Duct & Mixed-Flow Fans

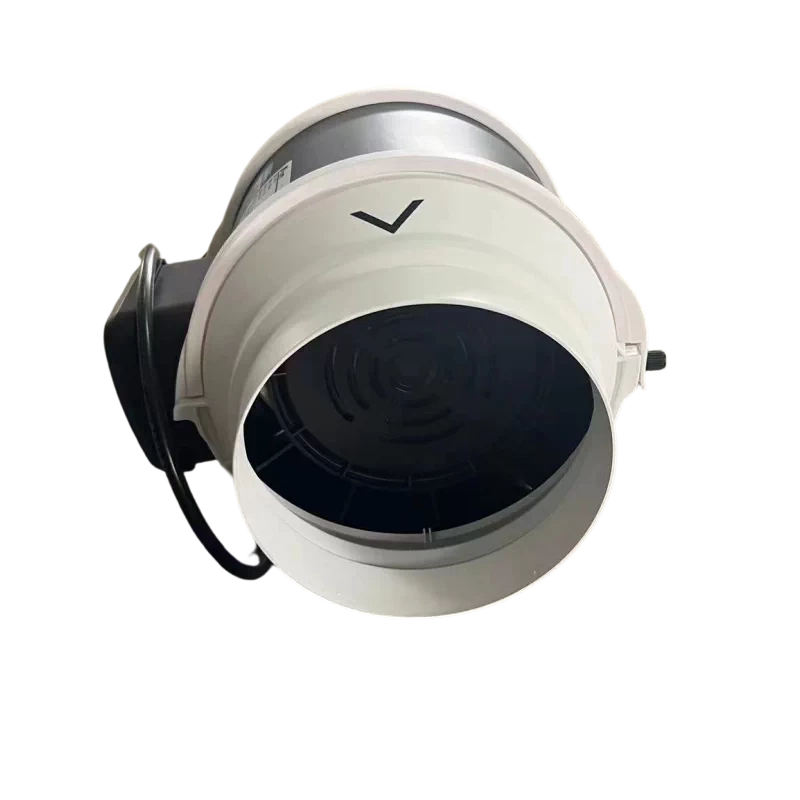

JD series mixed flow duct ventilator
HDFAN JD Mixed-Flow Duct Booster Ventilator is designed for industrial and building ventilation projects. Mixed-flow duct booster ventilator for ventilation in longer duct systems and higher-static-pressure conditions. Select the final model against required airflow, static pressure, installation arrangement and power supply. Confirm the operating medium and site conditions before ordering.
Product Overview
Designed for Industrial Ventilation Projects
JD Mixed-Flow Duct Booster Ventilator
Product Overview
Mixed-flow duct booster ventilator for ventilation in longer duct systems and higher-static-pressure conditions.
Core Characteristics
This series is positioned as a jd mixed-flow duct booster ventilator for the applications stated in the product catalogue. Available performance and construction details vary by model.
Suitable Applications
Mixed-flow duct booster ventilator for ventilation in longer duct systems and higher-static-pressure conditions.
Operating Conditions
Use the fan only within the medium, installation and operating limits specified for the selected catalogue model. Confirm any temperature, dust loading, corrosive gas, explosive-atmosphere, drive and mounting requirements before order.
Information Required for Selection
Please provide required airflow, static pressure, air medium, operating temperature, installation arrangement, power supply and applicable site restrictions. HDFAN can then confirm the suitable series and model data.
Performance Table
| Model(Nº) | Power(W) | Voltage(V) | Volume(m³/min) | Pressure(Pa) | Take-Over diameter(mm) |
|---|---|---|---|---|---|
| JD100 | 28/25 | 220 | 3.3/2.8 | 180/130 | 100/125 |
| JD150 | 50/40 | 220 | 7.0/6.3 | 300/250 | 150/160 |
| JD200 | 70/60 | 220 | 10.5/9.6 | 350/280 | 200 |
| JD250 | 170/130 | 220 | 19.2/15.1 | 550/400 | 250 |
| JD315 | 320/230 | 220 | 30.3/25.7 | 700/500 | 315 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
