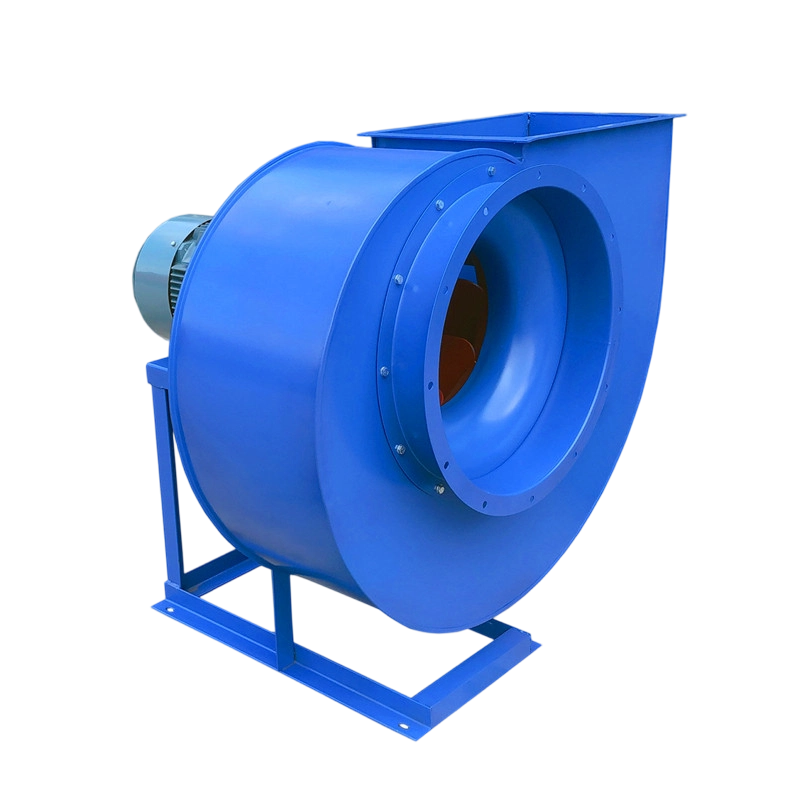

HCF backward single-plate kitchen lampblack exhauster
Centrifugal Fan Series

HCF backward single-plate kitchen lampblack exhauster

HDFAN HCF backward single-plate centrifugal fan for kitchen fume extraction and related ventilation duties. Confirm exhaust airflow, pressure, duct layout, and installation requirements before selection.

Send Product ParametersBack to Product List
Product Overview

Designed for Industrial Ventilation Projects

HCF Backward Single-Plate Kitchen Fan

Product Overview

The HCF series is a backward single-plate centrifugal fan for kitchen fume extraction and related ventilation duties.

Suitable Applications

It is intended for commercial kitchen exhaust systems and associated ducted ventilation arrangements.

Selection Considerations

Confirm kitchen exhaust airflow, system pressure, grease and fume conditions, duct routing, and installation position before selection.

Information Required for Selection

Please provide airflow, pressure, kitchen type, duct layout, power supply, and any cleaning or access requirements.

Performance Data

Performance Table

HCF-I Type A Fan,HCF-II Type A Fan

Model(N°) Power(kW) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa) Static Pressure(Pa)
3.6A 0.75 220/380 1450 1876~3088 405~201 385~145
3.6A 2.2 380 2900 3752~6175 1620~805 1540~581
4.0A 1.1 220/380 1450 2330~4378 509~295 492~249
4.0A 4 380 2900 4660~8756 2035~1178 1969~997
4.5A 1.1 220/380 1450 3070~6100 675~392 650~307
4.5A 5.5 380 2900 6138~12200 2700~1565 2605~1229
5.0A 2.2 220/380 1450 4763~9064 818~473 782~376
5.0A 11 380 2900 9525~18128 3272~1891 3130~1505
5.6A 2.2 380 1450 5235~11621 1076~540 1047~495
5.6A 18.5 380 2900 10470~23241 4301~2159 4188~1980
6.0A 1.5 380 960 5207~9642 520~306 468~177
6.0A 3 380 1450 7864~14293 1187~699 1069~403
7.0A 1.1 380 720 6877~11288 398~221 386~177
7.0A 2.2 380 960 9169~15051 708~329 687~258
8.0A 2.2 380 1450 13845~22734 1616~750 1567~650
8.0A 5.5 380 960 13909~23552 1002~436 890~326
8.0A 15 380 1450 21003~35564 2286~995 2030~720

HCF-I Type C Fan (Belt Drive)

Model(N°) Power(kW) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa) Static Pressure(Pa)
4.0C 4 380 2600 4178~7594 1865~943 1586~752
4.0C 3 380 2400 3856~7010 1589~803 1351~641
4.0C 2.2 380 2000 3213~5842 1103~558 938~445
4.0C 1.5 380 1800 2892~5258 893~452 760~360
4.0C 1.1 380 1600 2571~4673 706~357 600~284
4.5C 4 380 2600 5949~10812 2147~1011 2082~730
4.5C 3 380 2400 5491~9980 1829~861 1774~622
4.5C 2.2 380 2200 5033~9149 1536~723 1491~346
4.5C 1.5 380 1800 4118~7486 1244~586 1208~280
4.5C 1.1 380 1600 3660~6654 982~463 954~221
5.0C 7.5 380 2600 8160~14931 2512~1248 2388~901
5.0C 5.5 380 2400 7532~13689 2140~1063 2035~767
5.0C 4 380 2000 6276~11407 1486~738 1413~532
5.0C 3 380 1800 5648~9126 1204~598 1144~431
5.0C 2.2 380 1600 5020~8112 951~472 904~340
5.0C 1.5 380 1430 4487~7250 852~422 722~272
5.6C 11 380 2400 10583~19234 2685~1334 2552~963
5.6C 7.5 380 2200 9693~17618 2253~1122 1632~807
5.6C 5.5 380 2000 8812~16017 1862~927 1349~667
5.6C 4 380 1800 7931~14415 1508~751 1430~540
5.6C 3 380 1600 7050~12813 1192~593 1130~427
5.6C 2.2 380 1400 6174~11220 913~454 865~327
6.0C 15 380 2400 11295~23337 3179~1626 3079~1314
6.0C 11 380 2200 10362~21410 2672~1366 2588~1104
6.0C 7.5 380 2000 9462~19464 2208~1129 2139~912
6.0C 5.5 380 1800 8516~17518 1789~915 1733~739
6.0C 4 380 1600 7570~15572 1414~723 1370~584
6.0C 3 380 1300 6155~12660 934~477 905~386
7.0C 18.5 380 2000 16631~30225 2715~1348 2581~784
7.0C 15 380 1800 14968~27205 2199~1092 2091~635
7.0C 11 380 1650 13721~24938 1848~917 1757~534
7.0C 7.5 380 1450 12057~21914 1427~709 1357~512
7.0C 5.5 380 1280 10646~19345 1112~552 1057~399
7.0C 4 380 1120 9315~16927 852~432 810~306
7.0C 3 380 1000 8318~15116 679~337 705~266
8.0C 18.5 380 1600 20561~37370 2569~1138 2491~956
8.0C 15 380 1450 18641~33880 2110~935 2046~810
8.0C 11 380 1300 16702~30356 1694~751 1643~650
8.0C 7.5 380 1200 15416~28019 1443~640 1400~554
8.0C 5.5 380 1100 14121~25665 1212~538 1176~466
8.0C 4 380 960 12314~22380 922~409 875~316
9.0C 30 380 1600 31194~51494 3180~1485 3086~1307
9.0C 22 380 1450 28262~46666 2618~1220 2534~1074
9.0C 18.5 380 1320 25728~42482 2170~1011 2100~890
9.0C 15 380 1250 24363~40229 1946~907 1883~798
9.0C 11 380 1120 21830~36126 1562~728 1512~641
9.0C 7.5 380 960 18711~30965 1148~535 1111~470
9.0C 5.5 380 800 15592~25803 797~372 772~326
