Box Type Forced Draft Fan Series

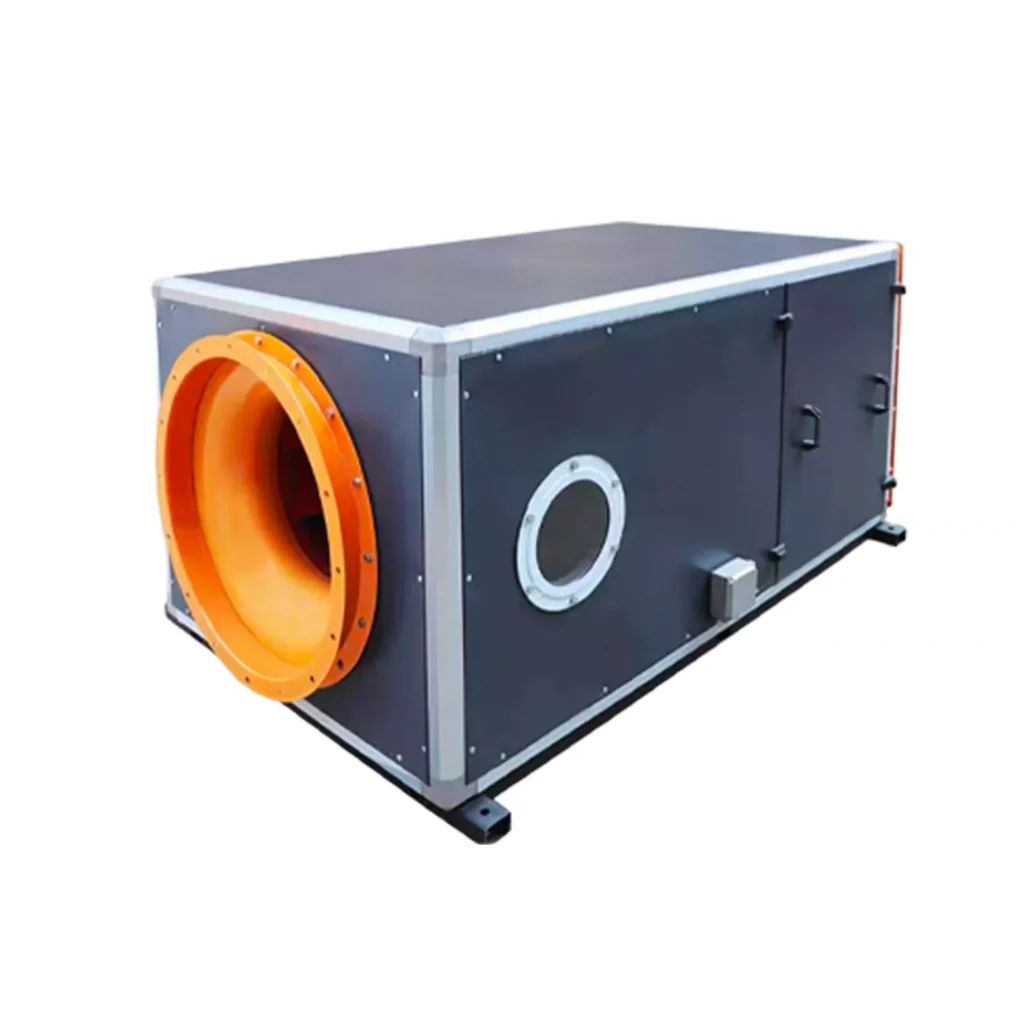

APF Air purification box type forced draft fan

Name: APF Air purification box type forced draft fan | HDFAN
SKU: HSD-96

The APF Air Purification Box Type Forced Draft Fan is a box-type forced draft fan intended for air movement and ventilation system integration. It is a practical choice for B2B buyers, contractors, and equipment manufacturers seeking a project-oriented fan solution.

Send Product Parameters Back to Product List

Product Overview

Designed for Industrial Ventilation Projects

APF Air Purification Box Type Forced Draft Fan

Key Features

Box-type configuration for organized installation
Designed for forced-air ventilation duties
Suitable for integration into commercial and industrial ventilation systems

Applications

Air purification support systems
Commercial ventilation projects
Industrial air supply and exhaust arrangements

Project Support

Product selection, configuration review, production coordination, and export delivery can be supported according to the application and installation requirements provided by the customer.

Selection Notes

Information Needed for Model Confirmation

Required airflow and pressure, or plant area and air-change target.
Working temperature, dust, smoke, oil fume, humidity, or corrosion conditions.
Installation method, duct length, power supply, and noise requirements.

How to Read Key Parameters

Airflow: Shows the volume of air moved. Confirm the required ventilation rate or process air demand.
Static Pressure: Allow for ducts, elbows, filters, outlets, and other system resistance.
Motor Power: Depends on the final duty point and efficiency; it should not be selected by power alone.
Voltage & Frequency: State the local supply, such as 380V / 50Hz / 3Ph, before confirming the motor.
Medium & Installation: Temperature, dust, moisture, corrosion, orientation, and mounting affect construction and configuration.

Performance Data

Performance Table

Model(Nº)	Power(kW)	Voltage(V)	Rotation(r/min)	Volume(m³/h)	Pressure(Pa)	Static pressure(Pa)	Volume of filter box L×W×H	Efficiency of purification and filtration (0.5um) %
3.6A	2.2	380	2900	1650~2845	987~559	965~512	595×485×50/50/300	99.9
4.0A	4	380	2900	1978~4540	1120~668	1074~641	595×485×50/50/300	99.9
4.5A	5.5	380	2900	2543~6353	1338~718	1285~689	595×485×50/50/300	99.9
5.0A	3	380	1450	2991~4731	482~174	474~165	940×660×50/50/300	99.9
5.6A	4	380	1450	3552~5975	565~188	549~184	940×660×50/50/300	99.9
6.0A	5.5	380	1450	4783~8680	696~270	695~267	1100×820×50/50/300	99.9
7.0A	7.5	380	1450	7578~11311	818~360	807~355	1200×980×50/50/300	99.9
8.0A	15	380	1450	9624~17285	1132~540	1097~485	1200×980×50/50/300	99.9

Product Catalog

Product Details PDF

Review the complete industrial fan catalog for series information, model references, and selection preparation.

Open Product PDF
