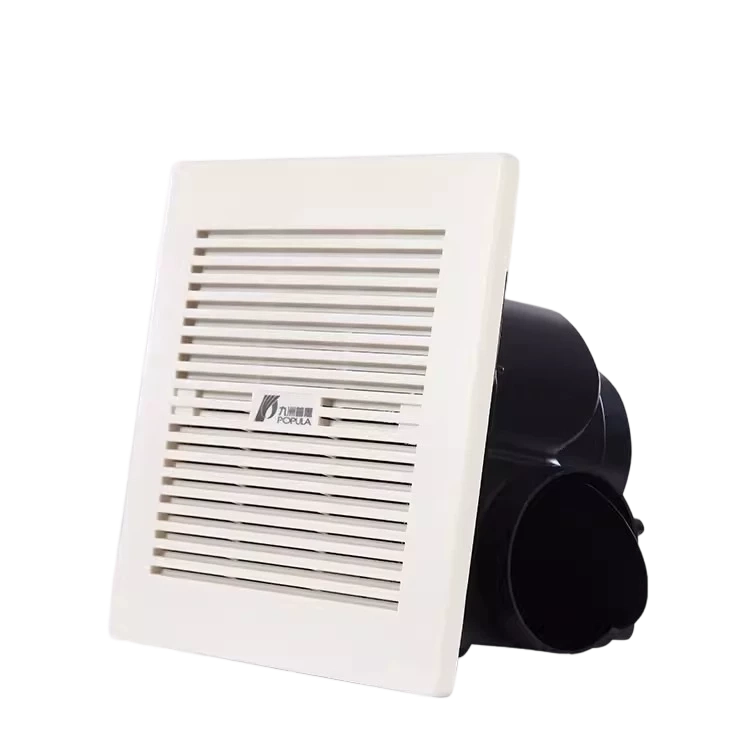

BPT Ceiling Mounted Ventilation Fan
HDFAN BPT Ceiling Mounted Ventilation Fan is designed for industrial and building ventilation projects. Ceiling-mounted duct ventilation fan for continuous ventilation in hotels Select the final model against required airflow, static pressure, installation arrangement and power supply. Confirm the operating medium and site conditions before ordering.
Product Overview
Designed for Industrial Ventilation Projects
BPT Ceiling Mounted Ventilation Fan
Product Overview
Ceiling-mounted duct ventilation fan for continuous ventilation in hotels
Core Characteristics
This series is positioned as a bpt ceiling mounted ventilation fan for the applications stated in the product catalogue. Available performance and construction details vary by model.
Suitable Applications
Ceiling-mounted duct ventilation fan for continuous ventilation in hotels
Operating Conditions
Use the fan only within the medium, installation and operating limits specified for the selected catalogue model. Confirm any temperature, dust loading, corrosive gas, explosive-atmosphere, drive and mounting requirements before order.
Information Required for Selection
Please provide required airflow, static pressure, air medium, operating temperature, installation arrangement, power supply and applicable site restrictions. HDFAN can then confirm the suitable series and model data.
Performance Table
| Model(Nº) | Power(W) | Voltage(V) | Volume(m³/h) | Staticpressure(Pa) | Usable Area(m²) | Noise dB(A) |
|---|---|---|---|---|---|---|
| BPT10-21S | 20 | 220 | 150 | 100 | 6~12 | 33 |
| BPT10-24SL | 22 | 220 | 200 | 110 | 8~16 | 35 |
| BPT10-24SH | 25 | 220 | 250 | 120 | 10~20 | 39 |
| BPT15-27SL | 35 | 220 | 300 | 120 | 12~24 | 33 |
| BPT15-27SH | 39 | 220 | 380 | 150 | 15~30 | 37 |
| BPT15-32S | 40/35 | 220 | 550/450 | 150/120 | 18~44 | 42/37 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
Air Purification & General Ventilation

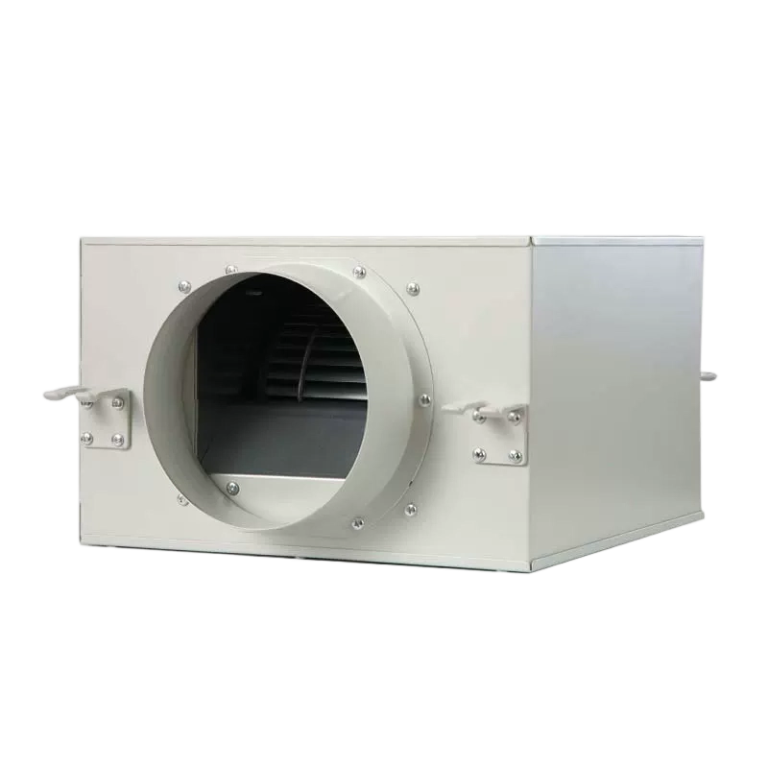

JYF series Low Noise Fan
HDFAN JYF Plastic Low Noise Fan is designed for industrial and building ventilation projects. Low-noise duct supply fan...
View Details
Air Purification & General Ventilation

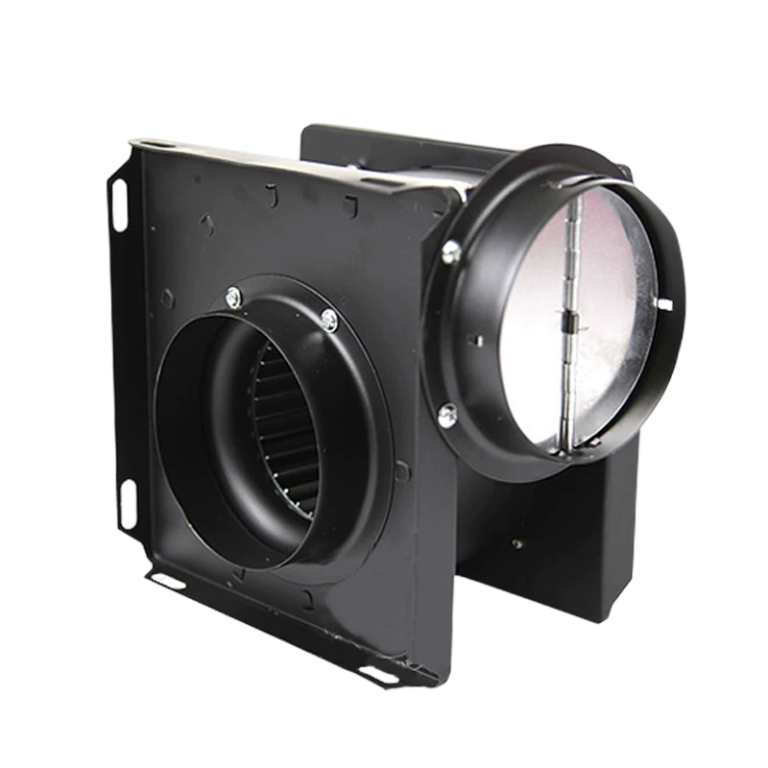

GF series Metal Split Type Dust Fan
