High-Temperature & Boiler Fans

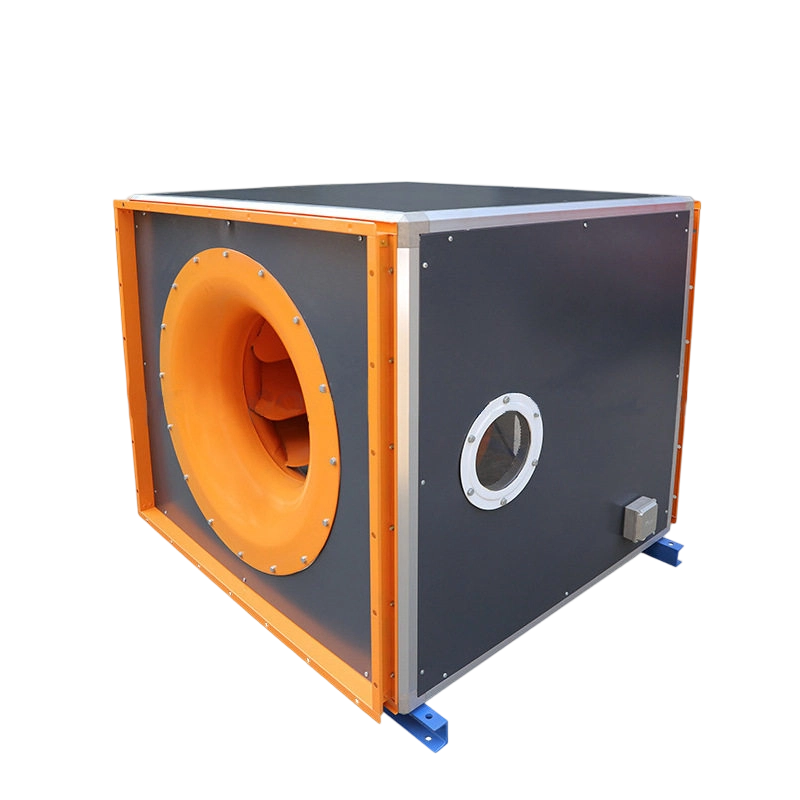

ATF Box type forced draft fan
HDFAN ATF box-type forced-draft fan for supply air, exhaust air, and make-up air in garages, basements, malls, stadiums, and industrial plants. Confirm airflow, pressure, installation, and power supply before selection.
Product Overview
Designed for Industrial Ventilation Projects
ATF Box Type Forced Draft Fan
Product Overview
The ATF series is a box-type forced-draft fan for supply air, exhaust air, and make-up air duties.
Suitable Applications
It is intended for garages, basements, malls, stadiums, industrial plants, and similar building or industrial ventilation systems.
Selection Considerations
Confirm the required airflow, pressure, supply or exhaust duty, installation space, duct connection, and electrical supply before order.
Information Required for Selection
Please provide airflow, pressure, application, installation layout, power supply, and any project-specific requirements.
Performance Table
| Model(Nº) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Static pressure(Pa) |
|---|---|---|---|---|---|---|
| 3.6A | 0.75 | 220/380 | 1420 | 1558~3636 | 381~133 | 362~100 |
| 3.6A | 2.2 | 220/380 | 2900 | 3180~6200 | 1589~555 | 1510~420 |
| 4.0A | 1.1 | 220/380 | 1440 | 2268~4638 | 427~200 | 420~191 |
| 4.5A | 1.5 | 220/380 | 1450 | 3302~6472 | 550~284 | 540~265 |
| 5.0A | 2.2 | 220/380 | 1450 | 4806~9175 | 697~329 | 671~247 |
| 5.6A | 3 | 220/380 | 1450 | 5810~12595 | 873~397 | 870~378 |
| 6.0A | 1.1 | 380 | 940 | 4430~9630 | 407~186 | 404~179 |
| 6.0A | 4 | 380 | 1450 | 6692~14546 | 928~443 | 922~428 |
| 6.0A | 5.5 | 380 | 1450 | 7604~17196 | 985~501 | 983~478 |
| 7.0A | 2.2 | 380 | 960 | 5181~14976 | 581~258 | 551~214 |
| 7.0A | 7.5 | 380 | 1450 | 7954~23041 | 1325~583 | 1256~486 |
| 8.0A | 5.5 | 380 | 960 | 11323~23124 | 927~486 | 770~414 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
