Centrifugal Fan Series
DF Series Multi-Wing Centrifugal Fan
HDFAN DF multi-wing centrifugal fan for continuous ventilation in hotels, shopping areas, theatres, basements, and similar spaces. Confirm airflow, pressure, installation, and power supply before selection.
Product Overview
Designed for Industrial Ventilation Projects

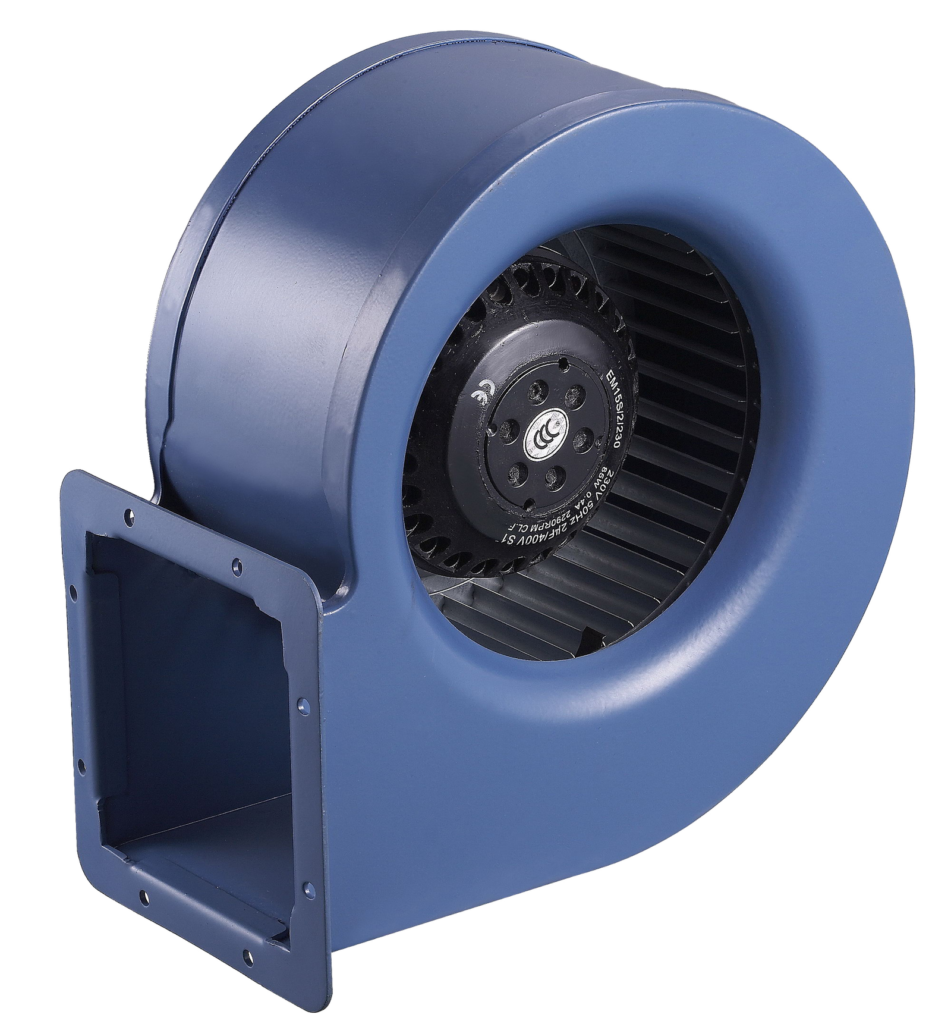

DF Multi-Wing Centrifugal Fan
Product Overview
The DF series is a multi-wing centrifugal fan intended for continuous ventilation duties.
Suitable Applications
It is suited to hotels, shopping areas, theatres, basements, and comparable building ventilation spaces.
Selection Considerations
Confirm the required airflow, pressure, duct arrangement, mounting space, and electrical supply against the selected model.
Information Required for Selection
Please provide airflow, pressure, installation layout, power supply, and operating schedule before model confirmation.
Performance Table
| Model(NP) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Noise dB(A) |
|---|---|---|---|---|---|---|
| 1.3A | 0.18 | 220/380 | 2800 | 405 | 450 | ≤75 |
| 1.6A | 0.25 | 220/380 | 2800 | 504 | 860 | ≤75 |
| 1.6A | 0.37 | 220/380 | 2800 | 660 | 850 | ≤76 |
| 2.0A | 0.55 | 220/380 | 2800 | 860 | 1020 | ≤76 |
| 2.0A | 0.75 | 220/380 | 2800 | 1200 | 1210 | ≤80 |
| 2.15A | 1.5 | 220/380 | 2800 | 1900~2500 | 1286~988 | ≤82 |
| 2.25A | 2.2 | 220/380 | 2800 | 1940~2626 | 1564~1536 | ≤85 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
