Fresh Air Series

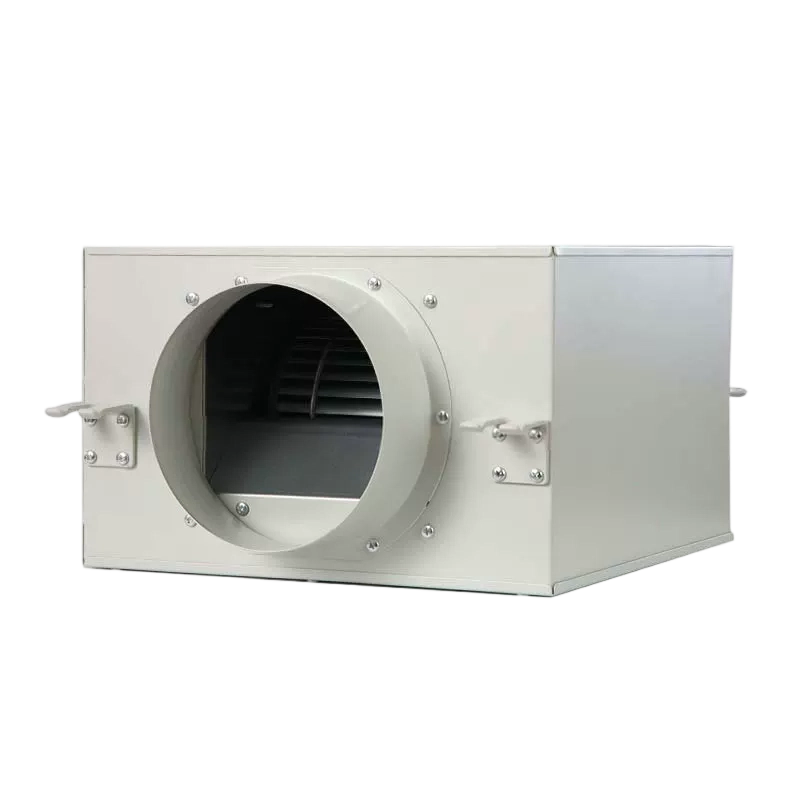

JYF series Low Noise Fan
The JYF Series Low Noise Fan is a ventilation fan intended for indoor applications where noise control is an important project consideration. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.
Product Overview
Designed for Industrial Ventilation Projects
JYF Series Low Noise Fan
The JYF Series Low Noise Fan is a ventilation fan intended for indoor applications where noise control is an important project consideration. It offers B2B buyers, contractors, and equipment manufacturers a practical option for project-based sourcing.
Key Features
- Designed for indoor ventilation applications
- Suitable for air supply and exhaust duties
- Compact configuration for duct system integration
Applications
- Offices and commercial spaces
- Building ventilation
- Indoor air supply and exhaust systems
Project Support
Product selection, configuration review, production coordination, and export delivery can be supported according to the application and installation requirements provided by the customer.
Performance Table
| Model(Nº) | Voltage(V) | Power(W) High | Power(W) Low | Rotation(r/min) High | Rotation(r/min) Low | Volume(m³/h) High | Volume(m³/h) Low | Static Pressure(Pa) High | Static Pressure(Pa) Low | Noise dB(A) High | Noise dB(A) Low |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JYF1.0L-100 | 220 | 17 | / | 1320 | / | 116 | / | 84 | / | 18 | / |
| JYF1.0H-100 | 220 | 36 | / | 2100 | / | 230 | / | 165 | / | 21 | / |
| JYF1.2-150 | 220 | 45 | / | 1320 | / | 368 | / | 136 | / | 27 | / |
| JYF1.5-150 | 220 | 90 | / | 1380 | / | 528 | / | 182 | / | 32 | / |
| JYF1.8-200 | 220 | 135 | 90 | 1400 | 1220 | 780 | 680 | 245 | 186 | 34 | 31 |
| JYF2.0-200 | 220 | 175 | 115 | 1400 | 1220 | 950 | 830 | 285 | 216 | 36 | 32 |
| JYF2.3-200 | 220 | 230 | 155 | 1400 | 1220 | 1220 | 1060 | 390 | 298 | 41 | 38 |
| JYF2.5L-250 | 220 | 250 | 180 | 1050 | 940 | 1720 | 1540 | 340 | 275 | 42 | 39 |
| YF2.5H-250 | 220 | 400 | 260 | 1420 | 1230 | 2150 | 1865 | 490 | 370 | 45 | 42 |
Product Catalog
Open Product PDF
Product Details PDF
Review the complete industrial fan catalog for series information, model references, and selection preparation.
